FOX 2.0 SHOCK 33.85 X 20.75 X 2- EB1/EB1

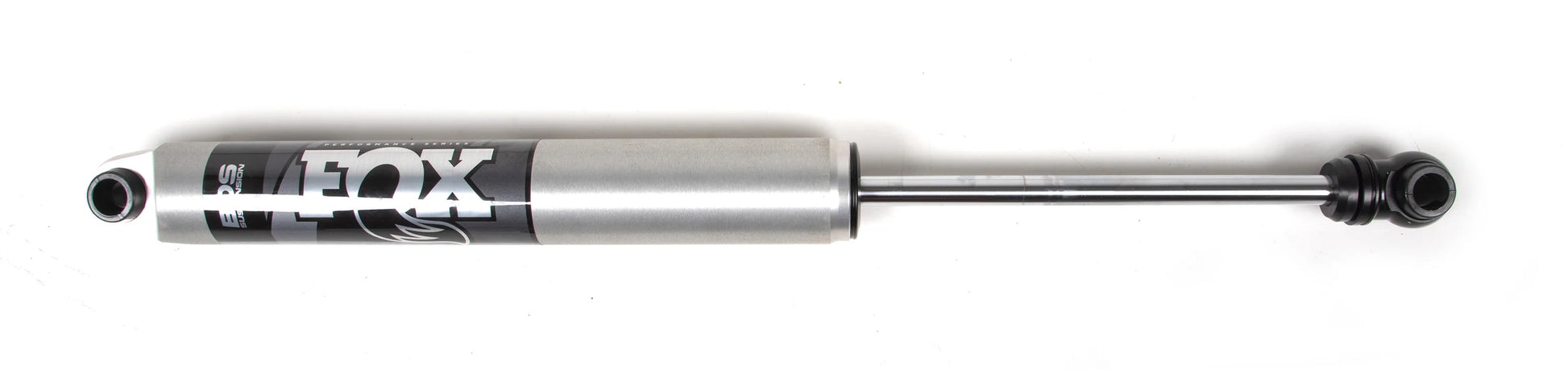

Brand New BDS FOX 2.0 Performance Series Shock (Part #FOX98224760).

Upgrade the on-road comfort and off-road control of your 2004-2020 Ford F-150 or 1999-2016 F-250/F-350 Super Duty to FOX Performance Series 2.0 IFP (internal floating piston) rear shocks. The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. FOX and BDS joined forces to custom valve each application to work perfectly with each BDS Suspension system. Based on FOX race products but re-designed to turn your BDS-equipped truck into an off-road machine providing a predictable ride - capable of handling the roughest conditions with fade-free performance.

NOTE: This shock is compatible with the front or rear suspension depending on the vehicle. See compatibility list for further details.

Fits:

• Ford:
• 2004-2020 F-150 4WD with 2" Lift (Rear)
• 2021-2025 F-150 4WD with 6" Lift (Rear)
• 1999-2004 F-250/F-350 Super Duty 4WD with 6" Lift (Front)
• 1999-2004 F-250/F-350 Super Duty 4WD with 2" Lift (Rear)
• 2005-2016 F-250/F-350 Super Duty 4WD with 0" Lift (Rear)

Features:

• 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body

• 5/8-inch hard chrome plated heat-treated alloy steel shaft

• Race-developed high-flow piston design

• Application-specific valving to maximize performance

• Internal IFP mono-tube reservoir design

Specs:

• Lower Mount Type: Eyelet

• Upper Mount Type: EB1

• Gas Charged: Yes

• Adjustable: No

• Adjustable Dampening: No

• Compressed Length: 19.3 Inch

• Extended Length: 33 Inch
• Travel Length: 13.7 Inch
