FOX 07-ON JEEP JK REAR, PS, 2.0, IFP, 9.1", 1.5-3.5" LIFT

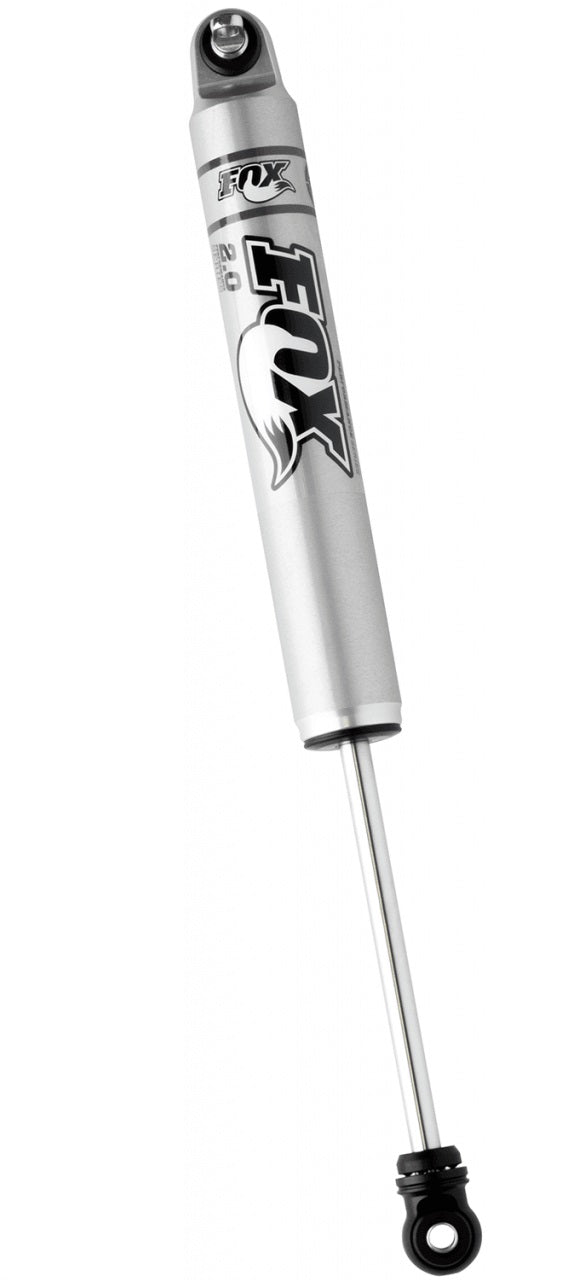

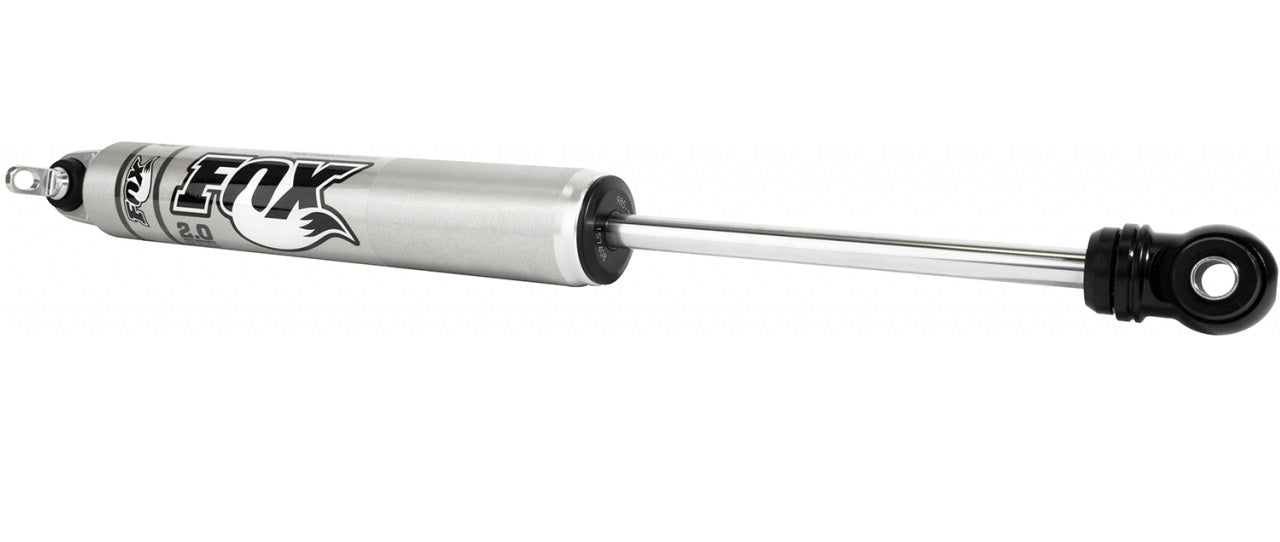

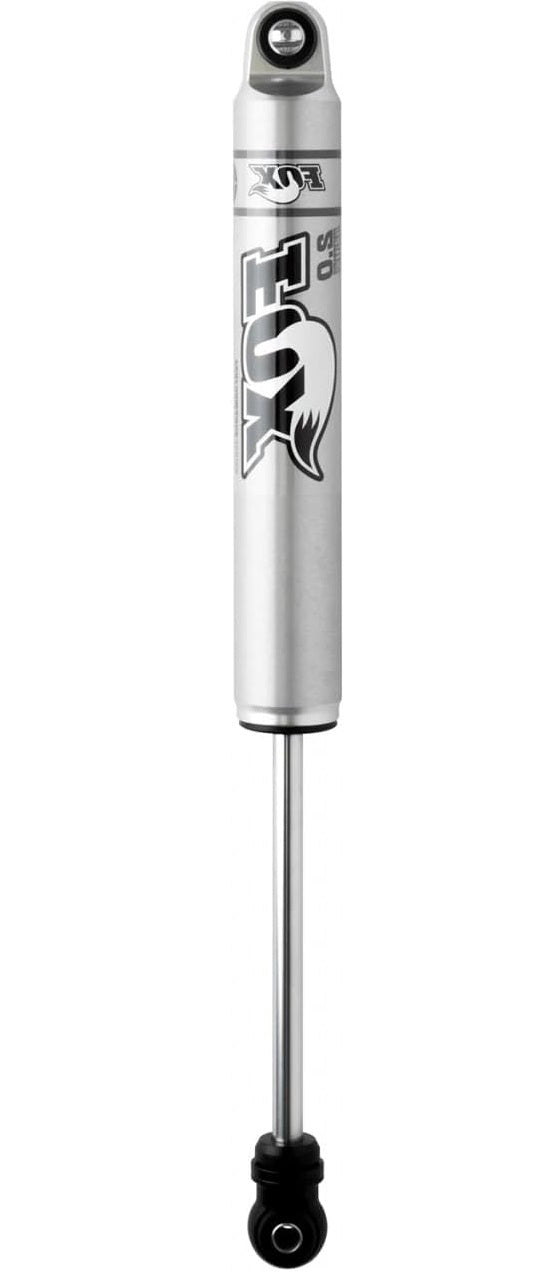

Brand New FOX 2.0 Performance Series Rear Shock (Part #FOX98024888).

Upgrade the on-road comfort and off-road control of your 2007-2018 Jeep Wrangler JK to FOX Performance Series 2.0 IFP (internal floating piston) rear shocks. Designed to fit a BDS 1.5 to 3.5-inch lift suspension kit. The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. FOX and BDS joined forces to custom valve each application to work perfectly with each BDS Suspension system. Based on FOX race products but re-designed to turn your BDS-equipped truck into an off-road machine providing a predictable ride - capable of handling the roughest conditions with fade-free performance.

Compatible with:

• Jeep:
• 2007-2018 Wrangler JK with 1.5-3.5" Lift

Features:

• 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time

• 5/8-inch hard chrome plated heat-treated alloy steel shaft

• Race-developed high-flow piston design

• Application-specific valving to maximize performance

• Internal IFP mono-tube reservoir design

Specs:

• Adjustable Damping: No

• Compressed Length: 15.7

• Extended Length: 24.82
• Travel Length: 9.12

• Gas Charged: Yes

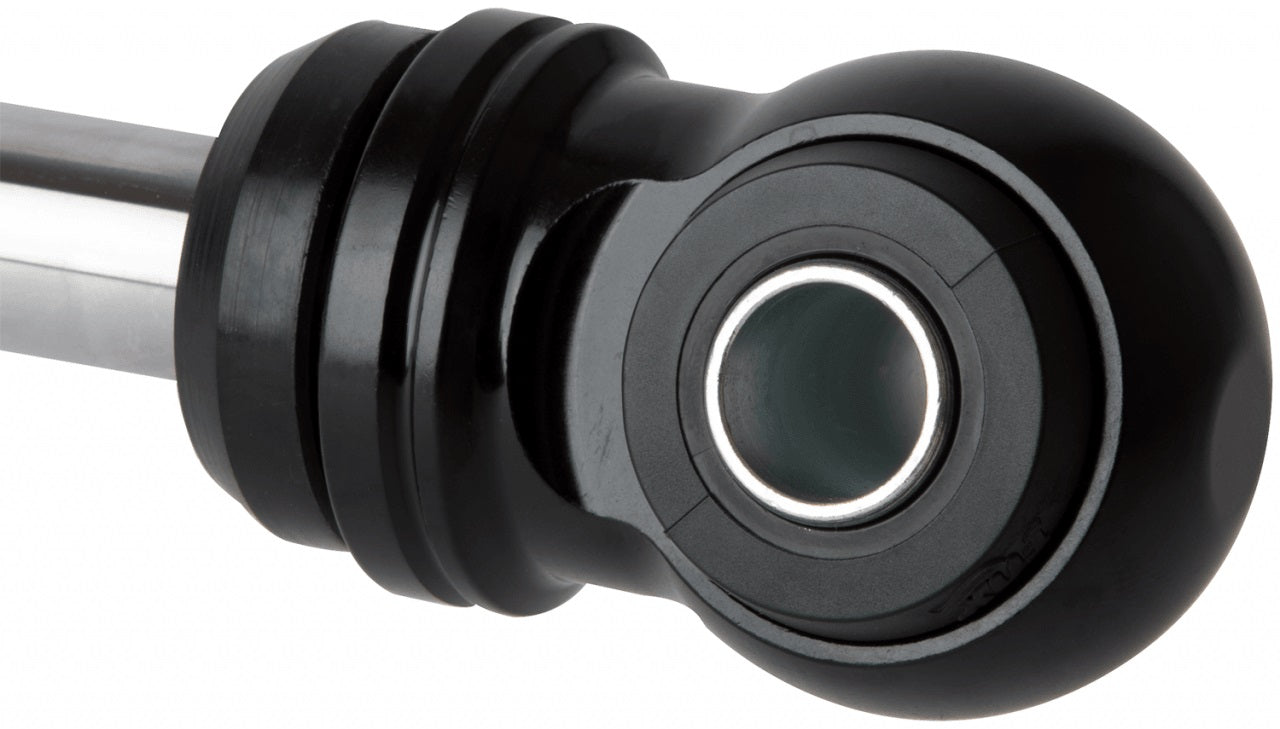

• Lower Mount Type: Eyelet

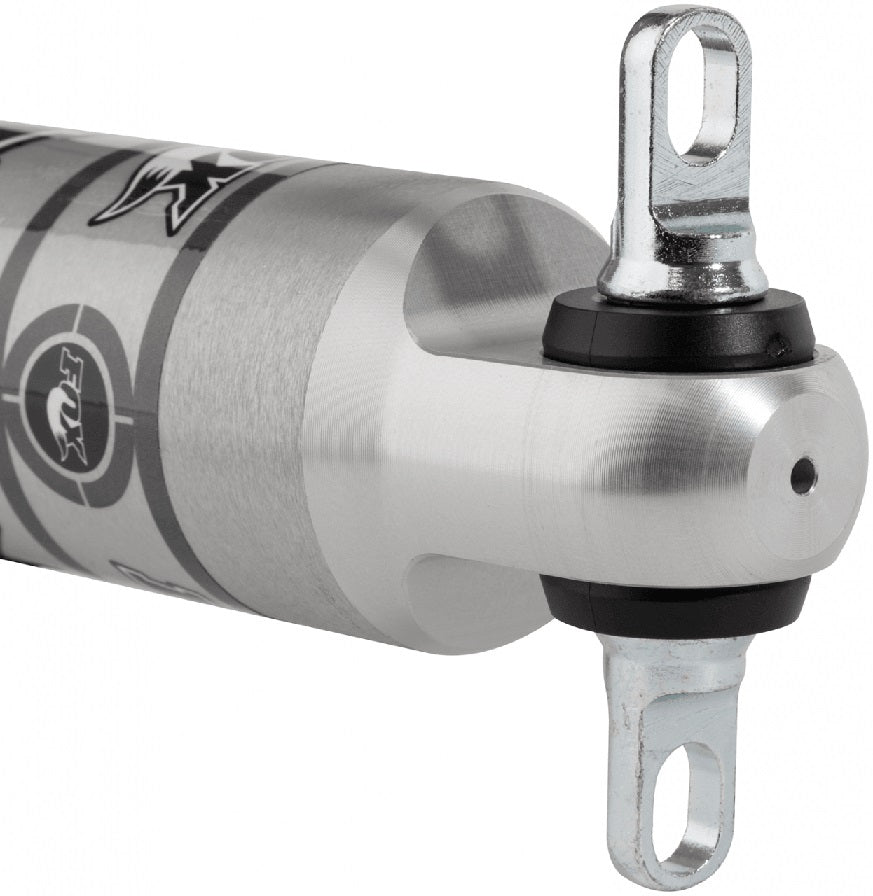

• Upper Mount Type: Bar Pin

You can view and download the assembly or instruction booklet here.
