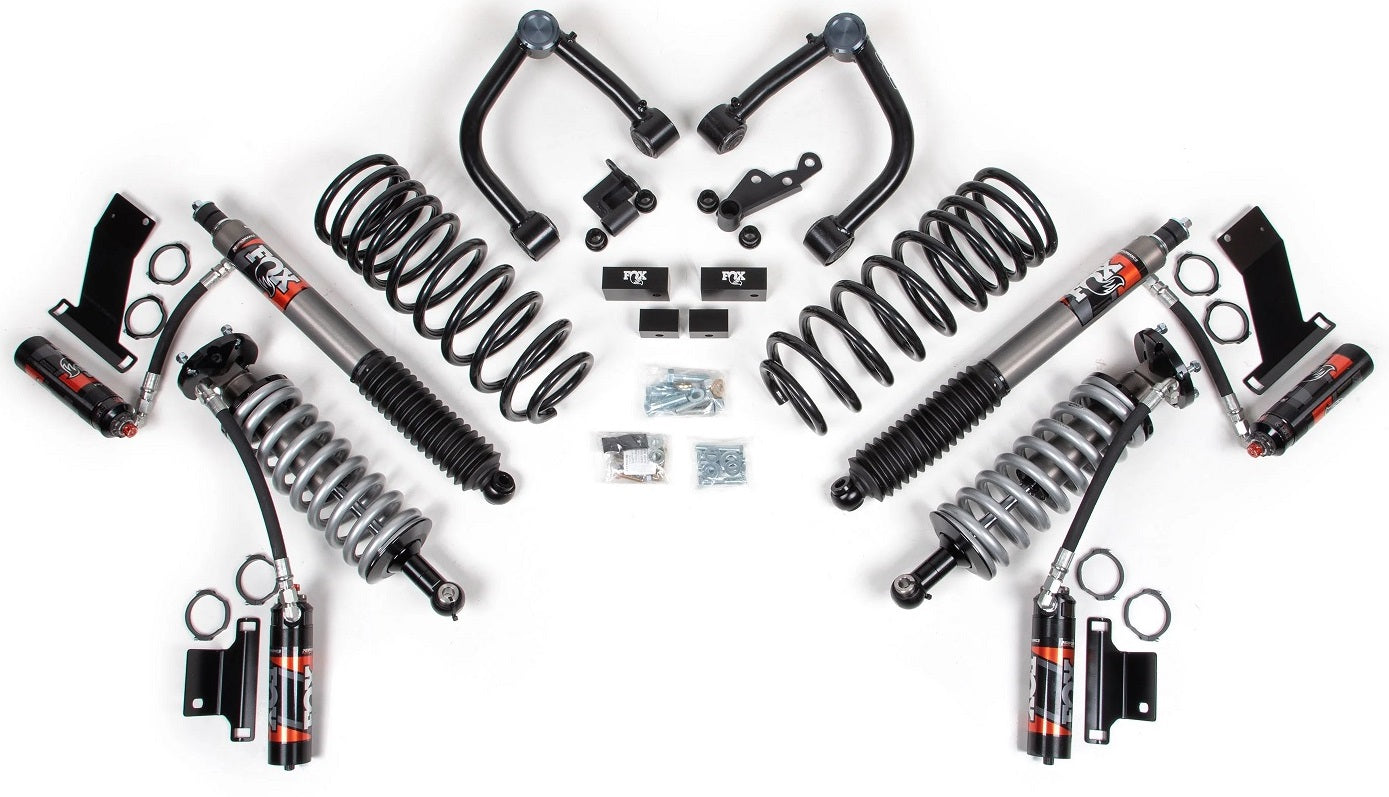

BDS 22-24 TOYOTA TUNDRA 4WD 3" LIFT KIT WITH FOX 2.5 PERFORMANCE ELITE SERIES

BDS 22-24 TOYOTA TUNDRA 4WD 3" LIFT KIT WITH FOX 2.5 PERFORMANCE ELITE SERIES

SKU:STU BDS838FPE

Regular price $5,375.83
Regular price Sale price $5,375.83
View full details

Brand New 3 Inch BDS Lift Kit With FOX Performance Shocks For Toyota Tundra 2022-2024 4WD (Part #BDS838FPE).

Take your 2022-2024 Toyota Tundra truck to the next level and improve the ride with this 0-3-inch lift kit featuring FOX 2.5 Performance Elite Coilovers from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes FOX 2.5 Performance Elite Coilovers with DSC remote reservoirs, heavy duty tubular upper control arms for increased strength, BDS heavy duty diff. drop brackets as well as solid aluminum sway bar drop blocks. In the rear this kit utilizes 1- 3/4" BDS heavy duty coil springs and a set of FOX 2.5 Performance Elite shocks with DSC remote reservoirs for ultimate adjustability that lets you dial in for the smoothest ride possible.

DSC Adjustment: FOX 2.5 Performance Elite front coil-overs and rear shocks come equipped with DSC (dual speed compression) adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad. Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain.

HD Upper Control Arms (UCA): Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

Features:

  • FOX 2.5 Performance Elite series DSC coil-overs offer improved damper performance over stock
  • BDS performance UCAs increase strength and allow for more suspension travel
  • FOX 2.5 Performance Elite series DSC rear shocks included
  • Factory Protection Plus drivetrain warranty included
  • Easy, 100% Bolt on installation

    Fits:

    • Toyota:
      • 2022-2024 Toyota Tundra 1794 Edition 4WD
      • 2022-2024 Toyota Tundra Capstone 4WD
      • 2022-2024 Toyota Tundra Limited 4WD
      • 2022-2024 Toyota Tundra Platinum 4WD
      • 2022-2024 Toyota Tundra SR 4WD
      • 2022-2024 Toyota Tundra SR5 4WD

    Notes:

    • Will NOT work on TRD Pro models.
    • Arms are designed to work with Fox Coilovers that require upper control arms and may not work with all aftermarket spacer lifts / lift kits (Will work with BDS 3"Lift). The ball joint has been re-indexed to allow for max range of motion with 2"-3"lifts.
    • Ball joint cap must be removed for maintenance of ball joint. Remove cap to access grease zerk. Grease at regular maintenance intervals
    • For replacement ball joints, order BDS088200. Ball joints are not directional.

    Wheel & Tire Fitment:
    • No Trimming
      • 295/65 R20 Tire w/ 6-7/8 BS (OE TRD Wheel)
      • 285/65 R20 Tire or 285/75 R18 w/9"Wide 6-1/8"BS Wheel
      • 295/60 R20 Tire or 295/70 R18 w/9"Wide 5-1/2"BS Wheel
      • 305/55 R20 Tire or 305/65 R18 w/9"Wide 5"BS Wheel
      • Wheel and Tire combination was tested through normal driving conditions within alignment specs with no rubbing or trimming needed.
    • Trimming
      • 325/60 R20 Tire w/9"Wide 6-1/8"BS Wheel
      • 35/12.50 R20 Tire or 35/12.50 R18 w/9"Wide 5-1/2"BS Wheel
      • 295/65 R20 Tire or 305/70 R18 or 285/75 R18w/9"Wide 5"BS Wheel
      • Wheel and Tire combination was tested through normal driving conditions within alignment specs and some or all the following were required: removal of mud flap, fender liner being trimmed or fastened further back, body mount bump being cut off or ground down

    You can view and download the complete assembly instruction booklet here and here.
