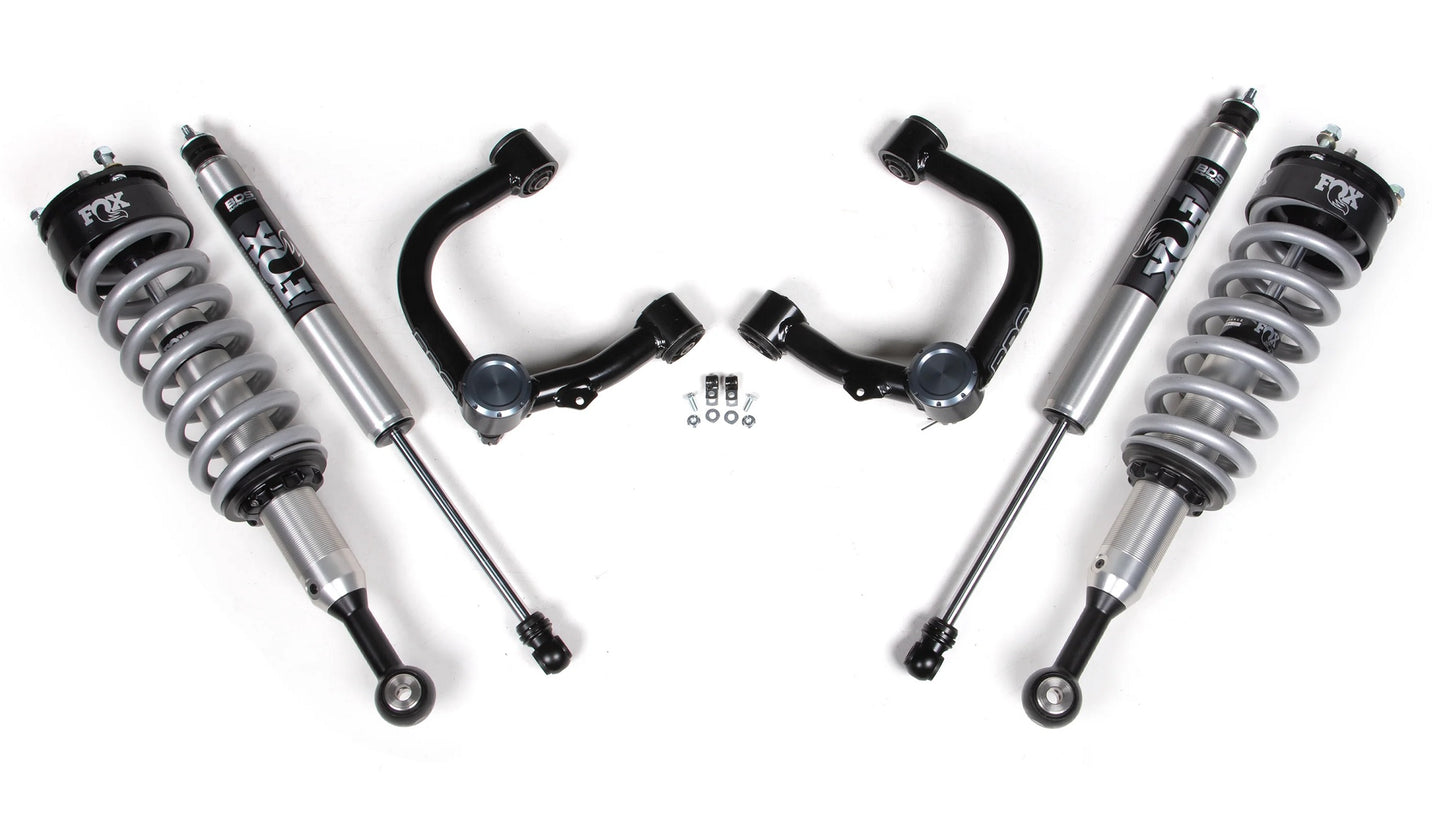

BDS 2005-2015 TOYOTA TACOMA 2" FOX COILOVER LIFT KIT

Brand New BDS Suspension 2" Front Lift Kit with FOX 2.0 Performance Series Shocks, Compatible with 2005-2015 Toyota Tacoma 4WD (Part #BDS833FSL).

Level out your 2005-2015 Toyota Tacoma truck and improve the ride with this 2-inch leveling kit featuring FOX 2.0 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 32" tires.

Up front the lift kit includes FOX 2.0 Performance Series coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a matching set of FOX 2.0 Performance shocks for the smoothest ride.

FOX 2.0 Coil-Over Shocks: These FOX 2.0 Performance Series coil-overs bring impressive damper performance for great ride on and off-road capability designed as a direct bolt-in replacement for the factory strut. They feature a 2.0" extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (IFP) to eliminate oil aeration, FOX's proprietary internals, 5/8" hard chrome plated heat treated alloy shaft and come preloaded with springs and top-plate for easy installation.

HD Upper Control Arms: Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

NOTE:

• 265/75R16 tires on the stock wheels or equivalent.
• Recommended Tires & Wheels (Trimming May Be Required) 265 / 75 with and in. Backspace

Compatible with:

• Toyota:

  • 2005-2015 Tacoma 4WD


Features:

• FOX 2.0 performance series struts offer improved damper performance over factory and are a direct bolt-in replacement

• Performance UCAs increase strength and allow for more suspension travel

• FOX 2.0 performance series IFP rear shocks included

• Factory Protection Plus drivetrain warranty included

• Easy, 100% Bolt on installation

Specs:

• Front Lift Method: Coil-Over

• Rear Lift Method: Stock

• Shocks Included: Yes

• Front Lift Height: 2"

• Rear Lift Height: 0"

You can view and download the assembly/instruction booklet here.
