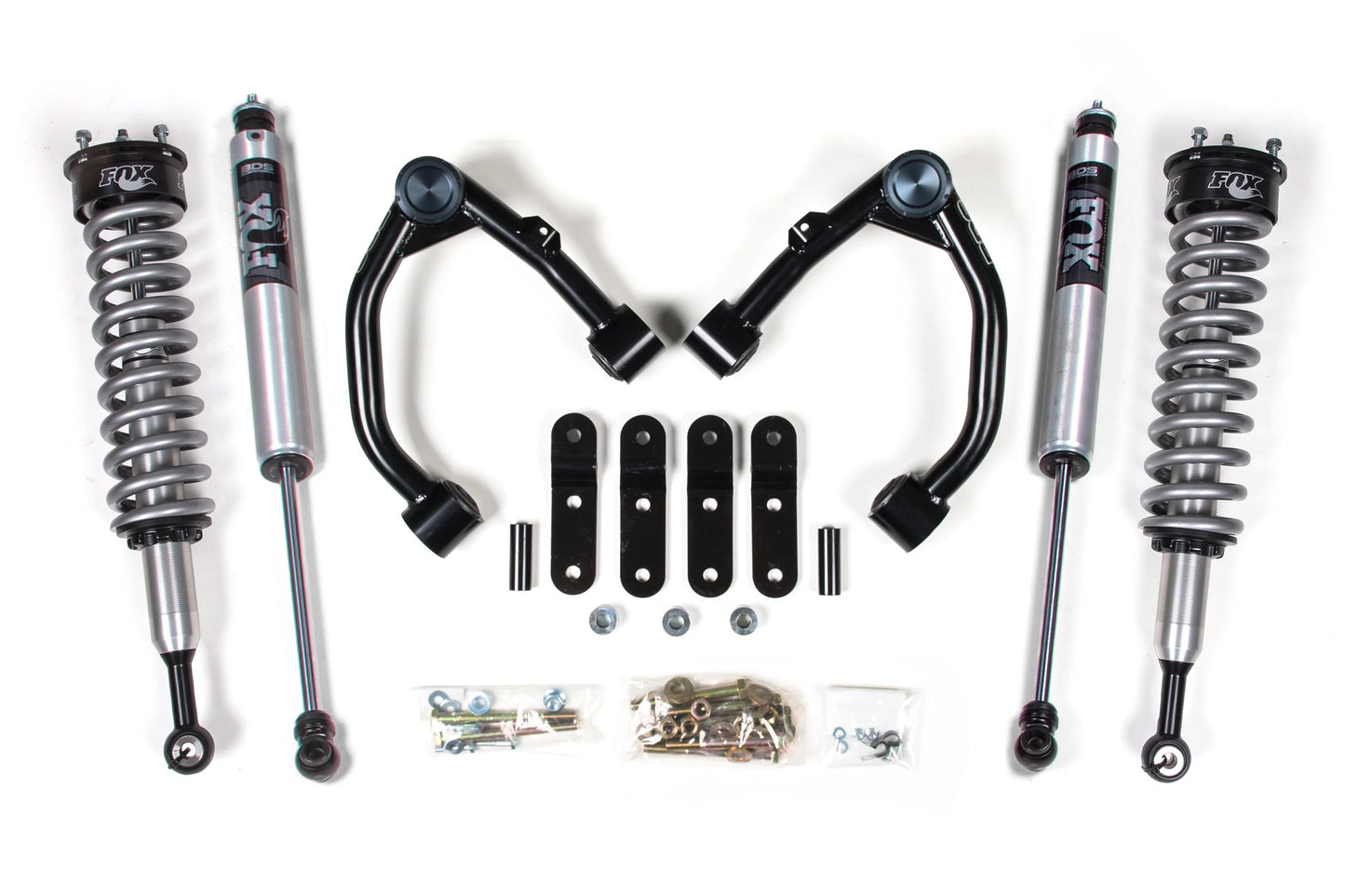

BDS 2007-2021 TOYOTA TUNDRA 3" LIFT KIT,FOX 2.0 SHOCKS

Brand New BDS Suspension 3" Lift Kit with FOX 2.0 Coil-Over, FOX 2.0 Rear Shocks, Compatible with 2007-2021 Toyota Tundra (Part #BDS824FSL).

Improve the performance and style of your 2007-2021 Toyota Tundra truck with this 3-inch lift kit featuring FOX 2.0 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires.

Up front the lift kit includes FOX 2.0 Performance Series coil-over shocks, heavy duty tubular upper control arms for increased strength, and 1" front differential drop spacers to reduce CV angles. In the rear this kit utilizes 1" lift shackles to level the truck and a matching set of FOX 2.0 Performance shocks for the smoothest ride.

FOX 2.0 Coil-Over Shocks: These FOX 2.0 Performance Series coil-overs bring impressive damper performance for great ride on and off-road capability designed as a direct bolt-in replacement for the factory strut. They feature a 2.0" extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (IFP) to eliminate oil aeration, FOX's proprietary internals, 5/8" hard chrome plated heat treated alloy shaft and come preloaded with springs and top-plate for easy installation.

HD Upper Control Arms: Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

NOTE:

• This kit will work on TRD Pro models, but only net 2" of lift due to the taller factory ride height.
  Can be installed on 2WD models, differential drop brackets are not used during installation.
• Recommended Tires & Wheels (Trimming May Be Required) 33 x 12.5 with 17 x 9 and 5 in. Backspace

Compatible with:

• Toyota:

  • 2007-2021 Tundra


Features:

• FOX 2.0 performance series struts offer improved damper performance over factory and are a direct bolt-in replacement

• Performance UCAs increase strength and allow for more suspension travel

• FOX 2.0 performance series IFP rear shocks included

• Easy, 100% Bolt on installation


Specs:

• Front Lift Method: Coil-Over

• Rear Lift Method: Shackle

• Shocks Included: Yes

• Front Lift Height: 3"

• Rear Lift Height: 1"

You can view and download the assembly/instruction booklet here.
