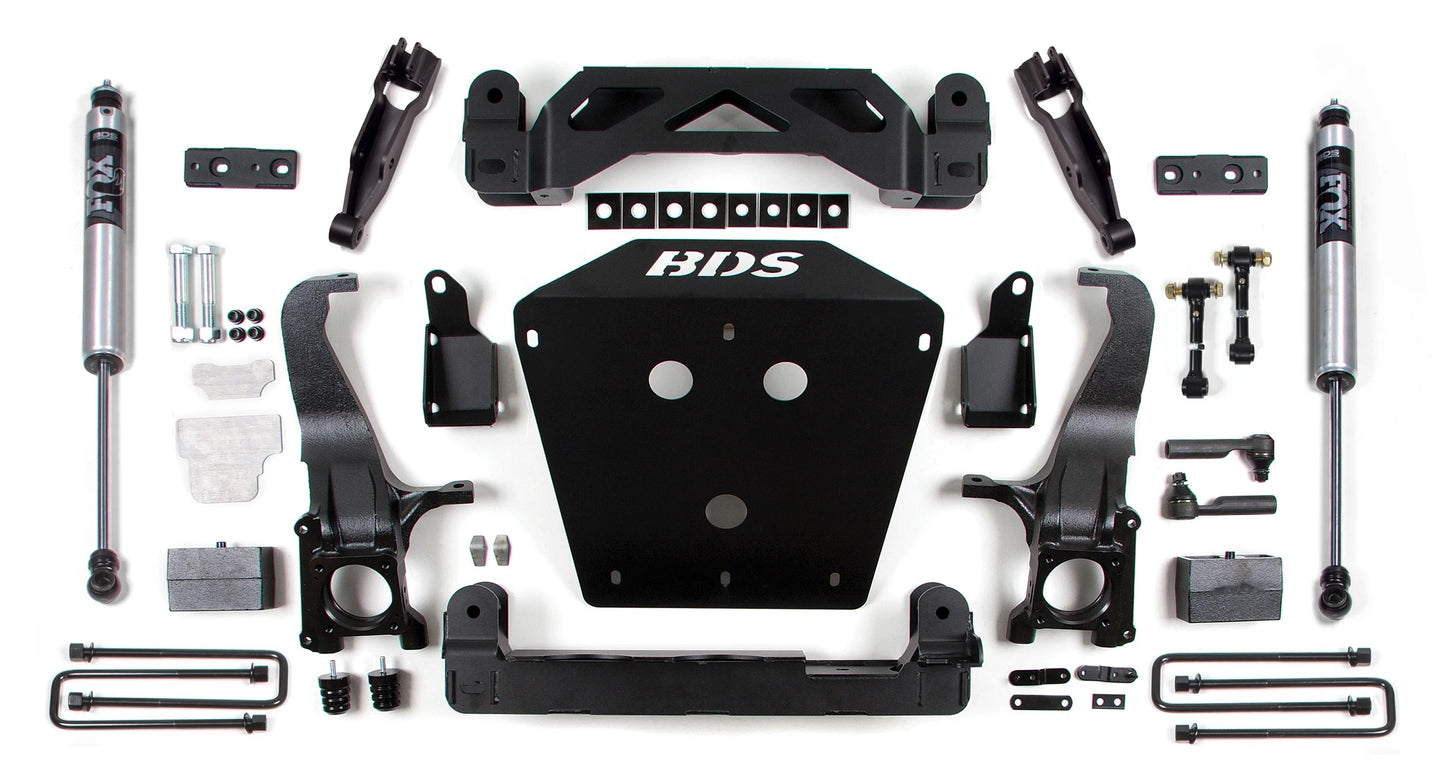

BDS 2016-2021 TOYOTA TUNDRA 4.5" LIFT KIT,FOX SHOCKS

Brand New BDS Suspension 4.5" Lift Kit with BDS Cross-Members, Rear FOX 2.0 Performance Shocks, Compatible with 2016-2021 Toyota Tundra (Part #BDS819FS).

BDS steps up the performance and capability of the 2016-2021 Toyota Tundra 4WD trucks with a 4.5-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and off-road protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes a lower strut extension, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for off-road protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles utilizing replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear, this kit utilizes heavy duty cast steel lift blocks, brake line bracket and longer u-bolts. The rear of this kit is rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.

High Clearance Crossmembers: BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles: BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

NOTE:

• Requires frame bracket modification and welding.

• No strut disassembly required.

• Stock 18" wheels can not be installed. factory 20" wheels with more than 6.25" backspacing can not be installed.

• Models with two piece rear drive line would require rear drive shaft modification.

• Models equipped with 6 piston calipers will require clearance machining on the caliper near the bolt holes on the mounting surface.

• Will NOT work on TRD Pro (Bilstein and Fox Piggyback Strut) models.

• Recommended Tires & Wheels (Trimming May Be Required) 35 x 12.5 with 18 x 9 and 5.5 in. Backspace or 35 x 12.5 with 20 x 9 and 5.5 in. Backspace

Compatible with:

• Toyota:

  • 2016-2021 Tundra


Features:

• High clearance crossmember design maximizes ground clearance

• Robust steering knuckles maintain ESC system compliance

• HD skid plate system improved off-road protection

• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body

• Internal floating piston (IFP) monotube design

• CNC machined 6061-T6 aluminum mounting ends

• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft

• Race-developed high-flow piston design

• Application-specific valving to maximize performance

• Long-lasting clear anodized finish

Specs:

• Front Lift Method: Cross-Member

• Rear Lift Method: Block

• Shocks Included: Yes

• Front Lift Height: 7"

• Rear Lift Height: 4"

You can view and download the assembly/instruction booklet here.
