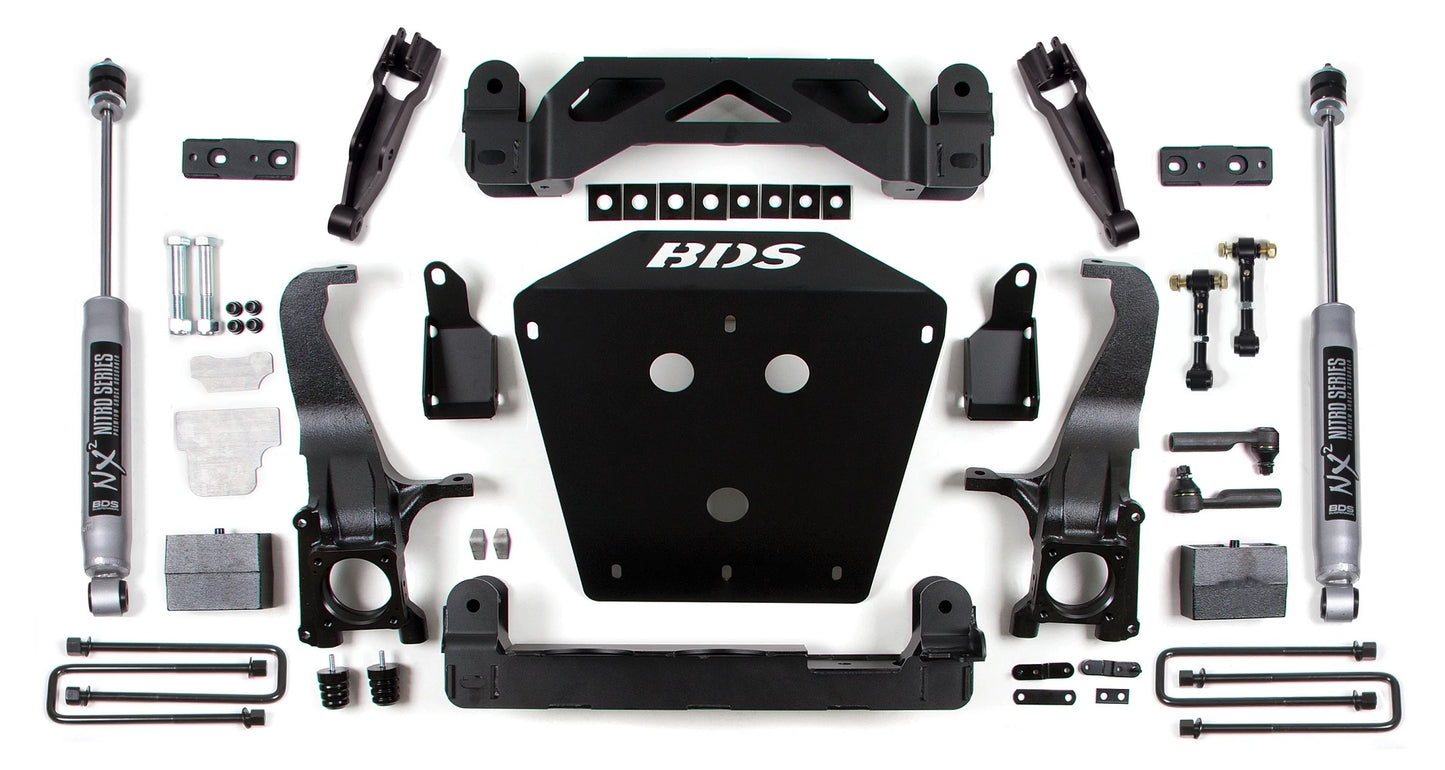

BDS 2016-2021 TOYOTA TUNDRA 7" LIFT KIT,NITRO SHOCKS

Brand New BDS Suspension 7" Lift Kit with BDS Cross-Members, Rear NX2 Nitro Shocks, Compatible with 2016-2021 Toyota Tundra (Part #BDS818H).

BDS steps up the performance and capability of the 2016-2021 Toyota Tundra trucks with 7 inch lift kit suspension system. Get the tire clearance and attitude you’re looking for with the 7 inch Lift Kit Suspension System for your Toyota Tundra. This kit takes advantage of BDS’s tried and true high-clearance design for improved ground clearance, strength, and off-road protection while correcting suspension and steering geometry for great on-road handling characteristics.

High Clearance Crossmembers: These specially designed 1/4" thick laser cut high clearance crossmembers to maximize clearance and provide a solid mounting point for the OE lower control arms. These paired with the heavy duty front skid plate system create a rigid subframe while adding protection for vital steering and driveline components.

Heavy Duty Steering Knuckles: The steering knuckles are critical to setting your lifted truck up right. While taller for the additional lift height, these arms dwarf the factory units to allow additional strength with ductile iron castings, CNC- machined for a precision fit. The steering tie rod mount is relocated to mimic original steering geometry for ESC system compatibility.

NOTE:

• Requires frame bracket modification and welding.

• No strut disassembly required.

• Stock 18" wheels can not be installed. factory 20" wheels with more than 6.25" backspacing can not be installed.

• Models with two piece rear drive line would require rear drive shaft modification.

• Models equipped with 6 piston calipers will require clearance machining on the caliper near the bolt holes on the mounting surface.

• Will NOT work on TRD Pro (Bilstein and Fox Piggyback Strut) models.

• Recommended Tires & Wheels (Trimming May Be Required) 35 x 12.5 with 18 x 9 and 5.5 in. Backspace, 35 x 12.5 with 20 x 9 and 5.5 in. Backspace, or 37 x 12.5 with 20 x 9 and 6.25 in. Backspace

Compatible with:

• Toyota:

  • 2016-2021 Tundra


Features:

• High clearance design maximizes ground clearance.

• Robust steering knuckles maintain ESC system compliance.

• Full width belly skid plate for added protection.

• Allows fitment of up to 37" tires with 7" systems.
• NX2 Nitro Series

• Nitrogen-charged

• Twin-tube design

• 10-stage velocity-sensitive valving

• Dual-welded ends for increased strength

• 1-3/8-inch high-flow piston

• Self-lubricating seals

• Silver powder coat finish

Specs:

• Front Lift Method: Cross-Member

• Rear Lift Method: Block

• Shocks Included: Yes

• Front Lift Height: 7"

• Rear Lift Height: 4"

You can view and download the assembly/instruction booklet here.
