BDS 2016-2021 TOYOTA TUNDRA 7" LIFT KIT,FOX 2.5 FRONT COILOVERS

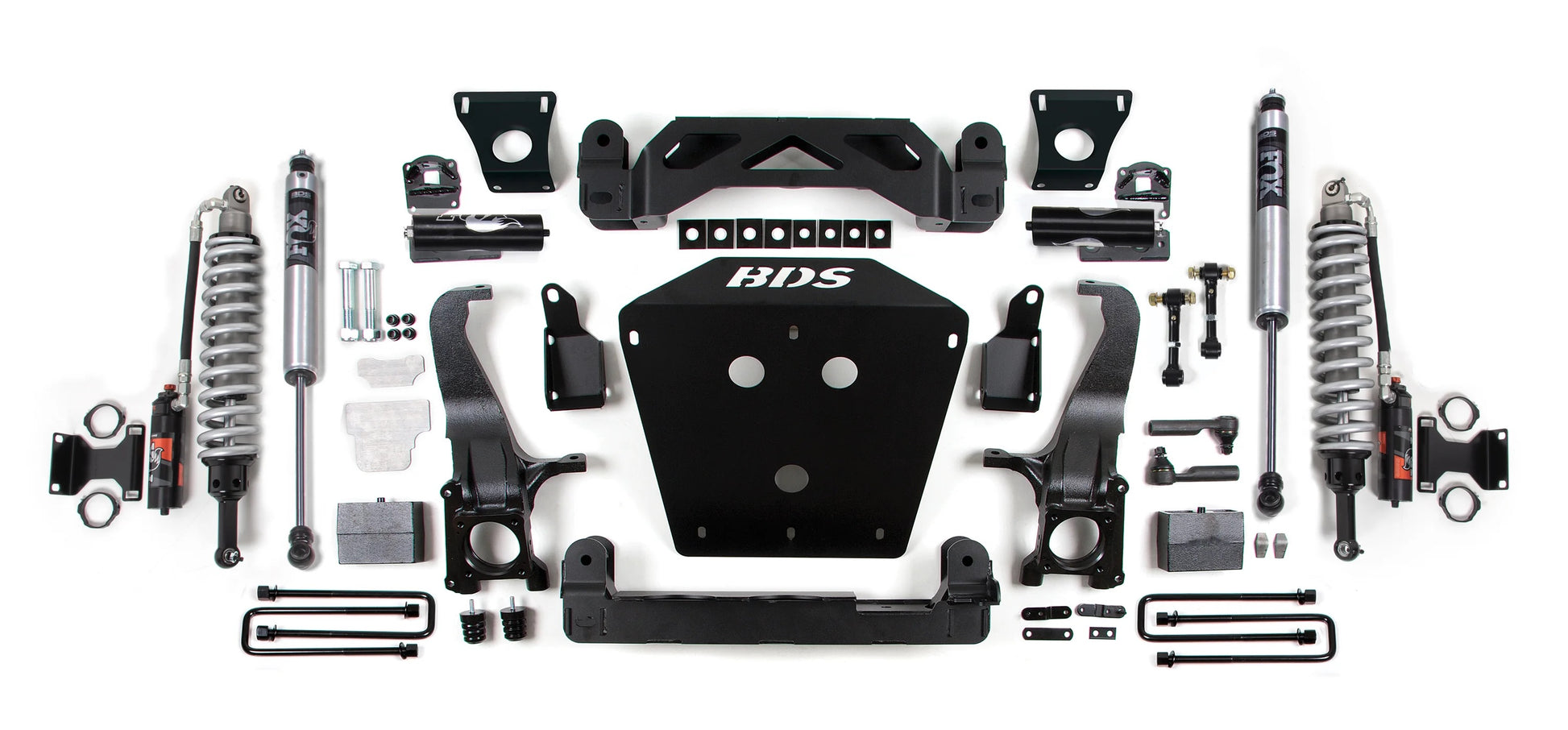

Brand New BDS Suspension 7" Lift Kit with BDS Crossmembers, Front Fox 2.5 Coilovers, & Rear Fox 2.0 Shocks (Part #BDS818FPS).

Unleash the full potential of your Toyota Tundra with the 7-inch Lift Kit, meticulously engineered to deliver uncompromising performance on and off the road. This kit combines BDS Steering Knuckles, and Fox Performance Elite Coil Overs and Rear Shocks, setting a new standard for durability, handling, and style. Steering Knuckles are precision-engineered to maintain factory steering geometry, ensuring precise handling and reducing stress on components. This upgrade allows for increased ground clearance and accommodates larger tires, perfect for conquering any obstacle in your path.

The inclusion of Fox Performance Elite Coilovers and Rear Shocks elevates ride comfort and control to elite levels. Known for their advanced damping technology and race-proven reliability, these shocks deliver smooth performance across varying terrain, from rocky trails to highways. Visually striking and functionally superior, the 7-inch Lift Kit transforms your Tundra's appearance with a commanding stance and aggressive profile. It not only enhances off-road capability but also maintains on-road comfort, making it ideal for daily driving and weekend adventures alike.

Whether you're a seasoned off-road enthusiast or exploring new trails, the Toyota Tundra 7-inch Lift Kit with BDS Steering Knuckles, and Fox Performance Elite Coilovers and Rear Shocks ensures unparalleled performance and durability. Elevate your driving experience today and embrace the limitless possibilities of exploration and adventure.

Compatible with:

• Toyota:
  • 2016-2021 Tundra

Notes:

• Requires frame bracket modification and welding.
• No strut disassembly required.
• Stock 18" wheels can not be installed. factory 20" wheels with more than 6.25" backspacing can not be installed.
• Models with two piece rear drive line would require rear drive shaft modification.
• Models equipped with 6 piston calipers will require clearance machining on the caliper near the bolt holes on the mounting surface.
• Will not work on TRD Pro (Bilstein and Fox Piggyback Strut) models.
• Recommended Tires & Wheels (Trimming May Be Required): 35 x 12.5 with 17 x 9 and 5.5 in. Backspace, 37 x 12.5 with 18 x 9 and 6.25 in. Backspace, or 37 x 12.5 with 20 x 9 and 6.25 in. Backspace

Features:

• FOX 2.5 Performance Elite series adjustable coil overs for improved ride quality, performance, and capability.
• High clearance crossmember design maximizes ground clearance Robust steering knuckles maintain ESC system compliance.
• HD skid plate system improved off-road protection.
• Multipoint differential relocation brackets to secure the front axle and improve CV angles.
• FOX performance series IFP gas rear shocks to improved ride and off-road performance.

FOX 2.0 Performance Series (Rear):

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs:

• Front Lift Method: Crossmember
• Front Lift Height: 7"
• Rear Lift Method: Block
• Rear Lift Height: 4"

You can view and download the assembly instruction booklet here and here.
