BDS 2005-2015 TOYOTA TACOMA 6" LIFT KIT,FOX SHOCKS

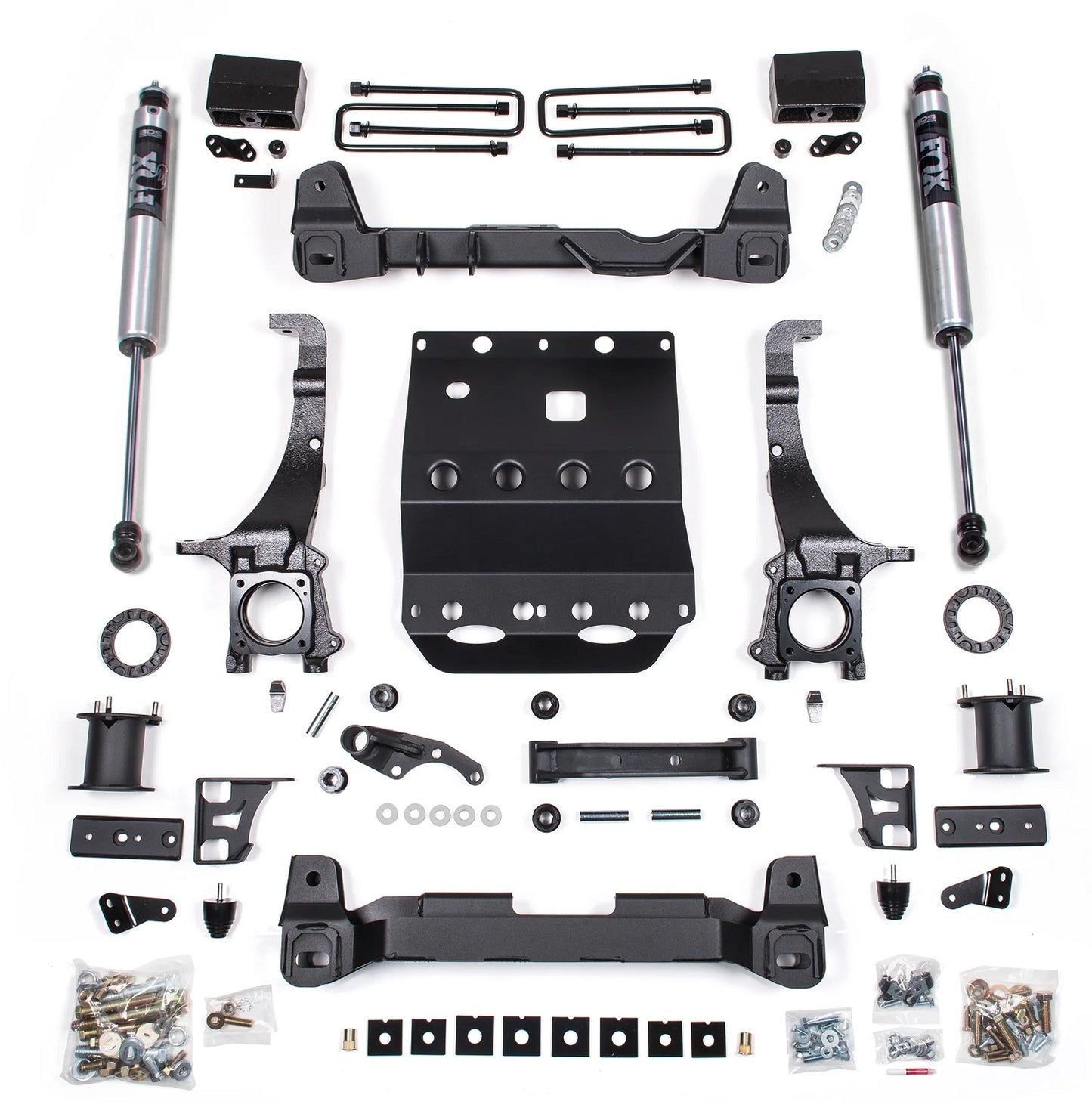

Brand New BDS Suspension 6" Lift Kit with BDS Cross-Members, FOX 2.0 Rear Shocks, Compatible with 2005-2015 Toyota Tacoma 4WD (Part #BDS815FS).

BDS steps up the performance and capability of the 2005-2015 Toyota Tacoma 4WD trucks with a 6-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and off-road protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for off-road protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles utilizing factory tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, lower control arm cams, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear, this kit utilizes heavy duty cast steel lift blocks, brake line bracket and longer u-bolts. The rear of this kit is rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.

High Clearance Crossmembers: BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles: BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

NOTE:

• Minor welding required

• Requires frame bracket modification

• Strut compressor required for installation

• Stock wheels cannot be reinstalled

• System will work on 2WD PreRunner models

• Can not use 17" wheels.

• Some 2014-15 models may not achieve net lift height stated but will have the same lift stance/final height of an equally equipped 05-13 model
• Recommended Tires & Wheels (Trimming May Be Required) 35 x 12.5 with 18 x 9 and 4.5 in. Backspace or 35 x 12.5 with 20 x 9 and 4.5 in. Backspace

Compatible with:

• Toyota:

  • 2005-2015 Tacoma 4WD


Features:

• High clearance crossmember design maximizes ground clearance
  Robust steering knuckles maintain ESC system compliance
  HD skid plate system improved offroad protection
  Multipoint differential relocation brackets to secure the front axle and improve CV angles
  BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and off-road performance
• FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body

• Internal floating piston (IFP) monotube design

• CNC machined 6061-T6 aluminum mounting ends

• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft

• Race-developed high-flow piston design

• Application-specific valving to maximize performance

• Long-lasting clear anodized finish

Specs:

• Front Lift Method: Cross-Member

• Rear Lift Method: Block

• Shocks Included: Yes

• Front Lift Height: 6"

• Rear Lift Height: 4"

You can view and download the assembly/instruction booklet here.
