BDS 2007-2013 CHEVY,GMC 1500 2WD 6" LIFT LEAF SPRINGS KIT WITH NITRO SHOCKS

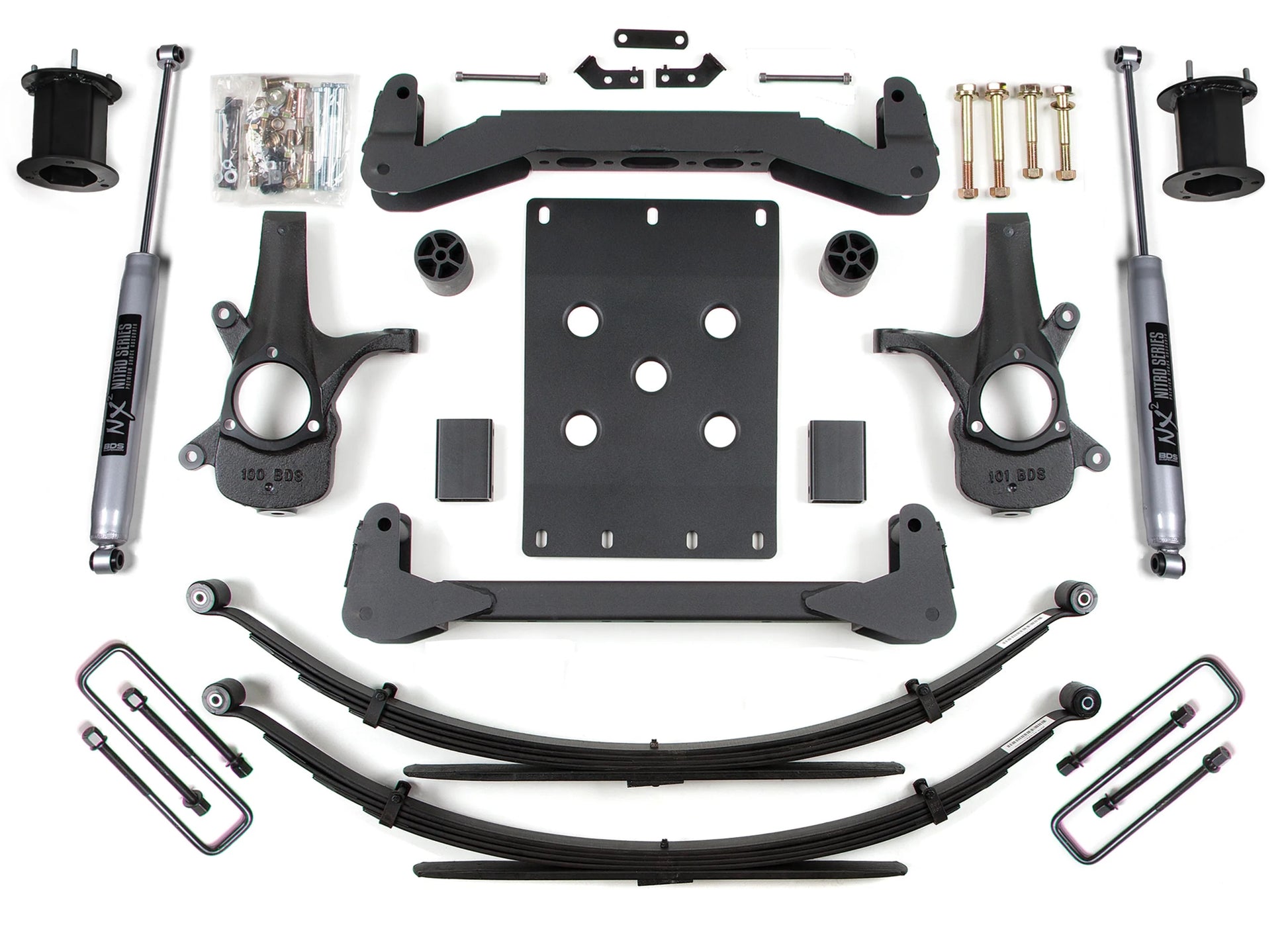

Brand New BDS Suspension 6" Lift Kit with Crossmembers, Front Strut Spacers, Rear Nitro Shocks, & Leaf Springs (Part #BDS798H).

Take your 2007-2013 Chevy Silverado and GMC Sierra 1500 to new heights with a BDS 6-inch lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires. This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front, the kit utilizes strut spacers, and high-arched 1/4-inch thick steel crossmembers and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it. In the rear BDS offers full Glide-Ride leaf spring options to lift and level that stance. Also for the rear are new u-bolts, brake line brackets and precision tuned shocks.

Compatible with:

• Chevrolet:

  • 2007-2013 Silverado 1500 2WD
• GMC:
  • 2007-2013 Sierra 1500 2WD

Notes:

• This system will not fit 2007 classic models
• Installation of rear leaf springs requires removal of the fuel tank
• Requires frame bracket modification
• 20" wheels with 5" to 5-3/4" backspacing recommended to reduce trimming.
• Traction bars will not fit regular cab short box models.
• Will not fit two-mode hybrid models with electronic power steering.
• Stock 20" wheels can be re-installed only with factory tire size. Factory 17 and 18's cannot be re-installed.
• Will not work on extended/crew cab long box vehicles
• Recommended Tires & Wheels (Trimming May Be Required): 33 x 12.5 with 17 x 9 and 4.5 in. Backspace, 35 x 12.5 with 18 x 9 and 5 in. Backspace, or 35 x 12.5 with 20 x 9 and 5.75 in. Backspace

Features:

• High clearance crossmember design maximizes ground clearance Robust steering knuckles maintain ESC system compliance
• HD skid plate system improved offroad protection

NX2 Nitro Series:

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs:

• Front Lift Method: Crossmember
• Front Lift Height: 6"
• Rear Lift Method: Blocks
• Rear Lift Height: 4.5"

You can view and download the assembly or instruction booklet here and here.
