BDS 2019-2024 CHEVY,GMC 1500 4WD GAS 4" LIFT,W/ FOX 2.5 PERFORMANCE ELITE SHOCKS

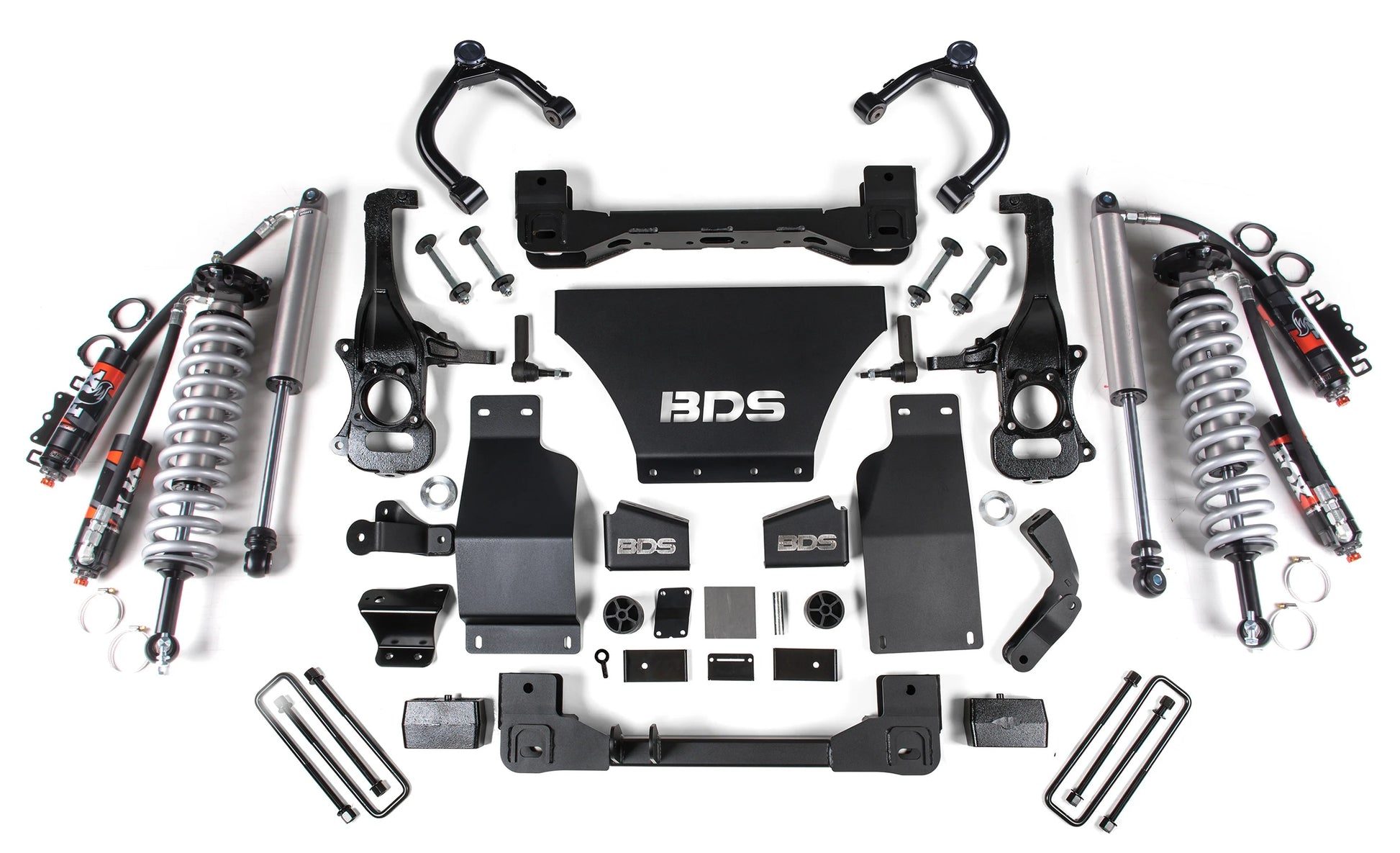

Brand New BDS Suspension 4" Lift Kit with Front FOX 2.5 Coilovers & Rear FOX 2.5 Shocks (Part #BDS781FPE).

Up the ante in performance with your Chevy Silverado and GMC Sierra 1500 truck by installing the BDS 4-inch lift kit suspension featuring FOX 2.5 Performance Elite coil-over shocks. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires. These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increase travel and the ability to soak up the roughest terrain along with smooth on-road comfort. This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and off-road protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes FOX 2.5 Performance Elite coil-over shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for off-road protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it. In the rear BDS offers a heavy duty lift block to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity.

Compatible with:

• Chevrolet:

  • 2019-2024 Silverado 1500 4WD
• GMC:
  • 2019-2024 Sierra 1500 4WD

Notes:

• Requires frame bracket modification

• Will not fit MagneRide / ARC equipped models

• Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels can be reinstalled.

• 17" Wheels with 4.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle / tie rod.

• All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition.

• Will NOT work with TrailBoss or AT4 models.

• 2.7L models use Diesel kit for proper skid plate fitment

• This kit has not been test fit on Silverado ZR2 or Sierra AT4X models.

• If equipped with a mono-leaf rear spring please use part #UBT4064. (Qty. 4 required)
• Recommended Tires & Wheels (Trimming May Be Required): 33 x 12.5 with 20 x 9 and 6.25 in. Backspace or 35 x 12.5 with 20 x 9 and 6.25 in. Backspace

Features:

• FOX 2.5 Performance Elite series coilovers with DSC Adjuster for improved ride quality, performance, and capability

• High clearance crossmember design maximizes ground clearance

• Robust steering knuckles maintain ESC system compliance

• High-strength replacement upper control arms provide durability and serviceability

• HD skid plate system improved off-road protection

• Multipoint differential relocation brackets to secure the front axle and improve CV angles

FOX 2.5 Performance Elite Series:

• Increased off-road capabilities

• Easily adjust your shock for terrain, load and speed

• 2.5-inch Impact extruded aluminum body

• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft

• External reservoir design separates shock oil from the high-pressure nitrogen

• DSC - Dual Speed Compression Adjuster comes standard

• Fully serviceable for a lifetime of use

Specs:

• Front Lift Method: Cross Member
• Front Lift Height: 4"

• Rear Lift Method: Blocks
• Rear Lift Height: 2"

You can view and download the assembly/instruction booklet here and here.
