BDS 2019-2024 CHEVY,GMC 1500 4WD 3.5" LIFT KIT WITH FOX 2.0 PERFORMANCE SHOCKS

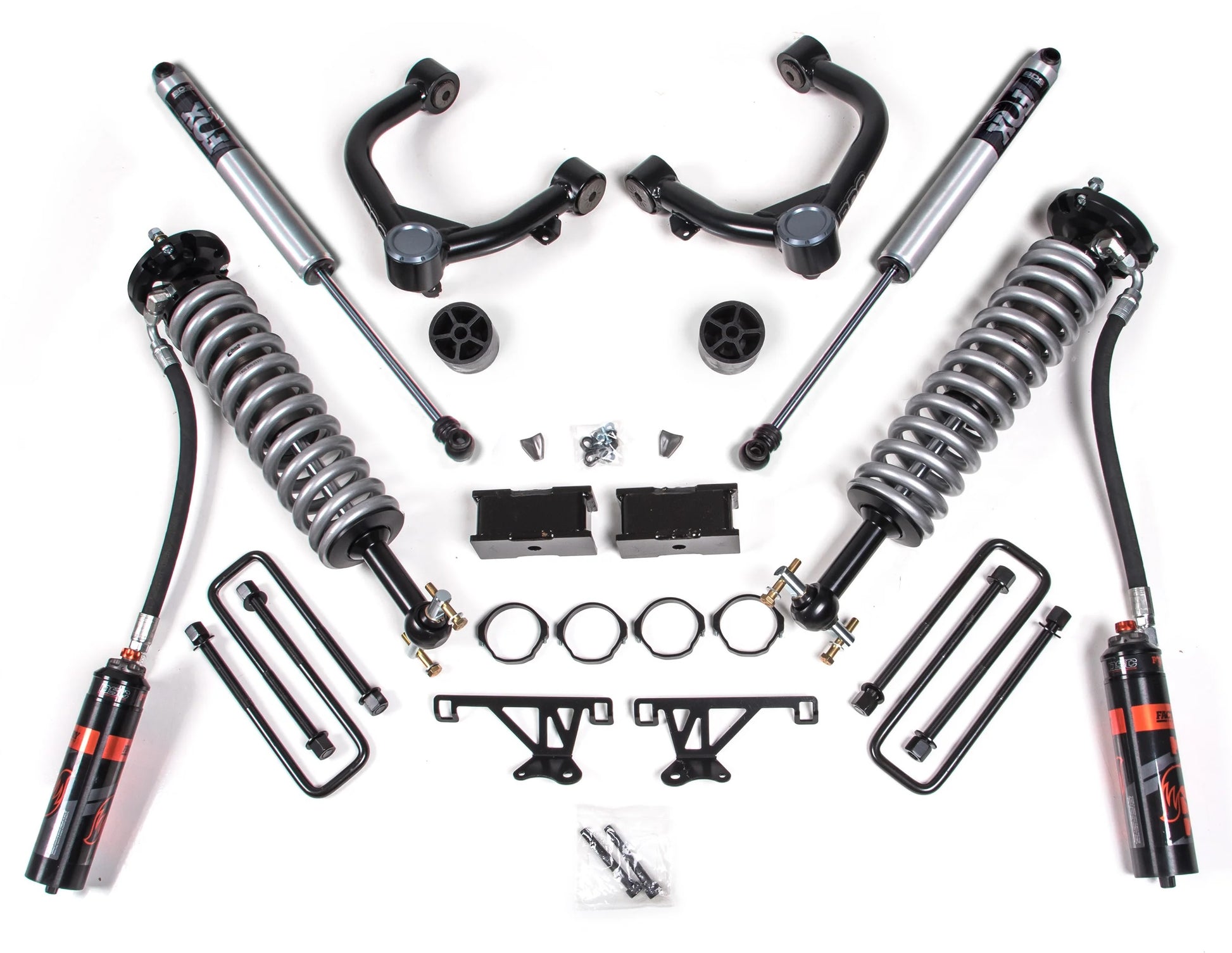

Brand New BDS Suspension 3.5" Lift Kit with Front Fox 2.5 Performance Elite Coilovers & Rear Fox 2.0 Shocks (Part #BDS772FDSC).

Up the ante in your Chevy Silverado or GMC Sierra 1500 truck with style and performance by installing this 3.5-inch lift kit featuring FOX Performance Elite 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires (Chevy) or 33" tires (GMC). Up front the lift kit includes FOX 2.5 Performance Elite Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes fabricated steel lift blocks, longer u-bolts and a complementary set of FOX 2.0 Performance shocks for the smoothest ride.

Compatible with:

• Chevrolet:

  • 2019-2024 Silverado 1500 4WD

• GMC:
  • 2019-2024 Sierra 1500 4WD

Notes:

• 5.5" max wheel backspacing can be used

• Will fit Trail Boss/AT4 models however will net 1.5" of lift over factory ride height

• All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition

• Will NOT fit models with a single leaf spring (monoleaf) rear suspension.

• Will not fit models equipped with ARC

• 2.7L Turbo models use Diesel kit for proper skid plate fitment.
• Recommended Tires & Wheels (Trimming May Be Required): 33 x 12.5 with 20 x 9 and 5.5 in. Backspace or 35 x 12.5 with 20 x 9 and 5.5 in. Backspace

Features:

• FOX 2.5 Performance Elite coil-overs offer improved damper performance over stock

• DSC Adjuster allows easy high-speed and low-speed compression tuning for optimal performance in any terrain

• Performance UCAs increase strength and allow for more suspension travel

• FOX 2.0 performance series IFP rear shocks included

• Easy, 100% Bolt on installation

FOX 2.0 Performance Series (Rear):

• 2-inch Impact extruded aluminum body

• Internal floating piston (IFP) monotube design

• CNC machined 6061-T6 aluminum mounting ends

• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft

• Race-developed high-flow piston design

• Application-specific valving to maximize performance

• Long-lasting clear anodized finish

Specs:

• Front Lift Method: Coilover
• Front Lift Height: 3.5"

• Rear Lift Method: Block
• Rear Lift Height: 2.5"

You can view and download the assembly instruction booklet here.
