BDS 2019-2025 CHEVY,GMC 1500 4WD 2" LEVELING KIT WITH COILOVERS

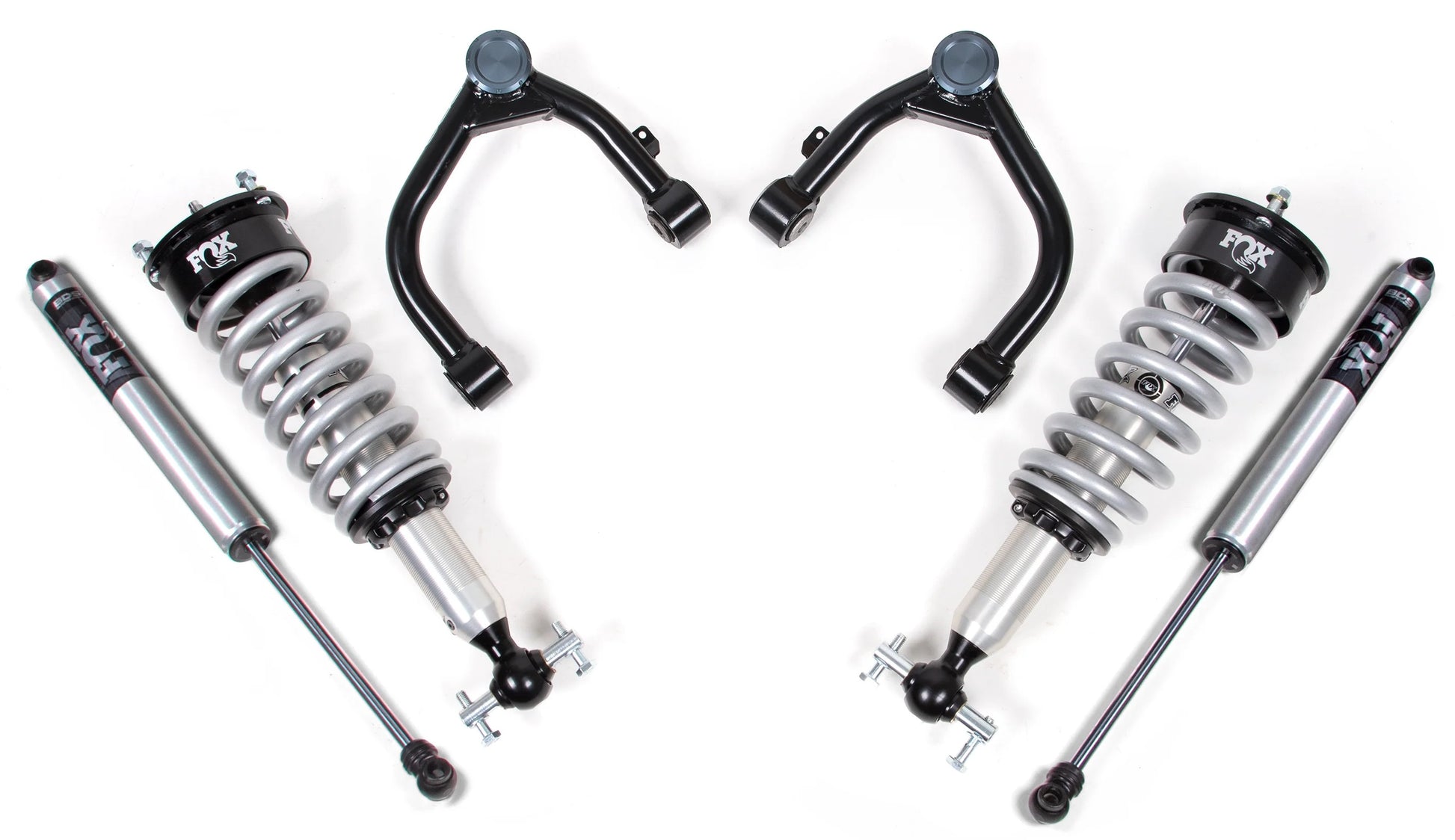

Brand New BDS Suspension 2" Leveling Kit with Front Fox 2.0 Performance Coilovers & Rear Fox 2.0 Shocks (Part #BDS770FSL).

Level out your Chevy Silverado and GMC Sierra 1500 truck and improve the ride with this 2-inch leveling kit featuring FOX 2.0 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires. Up front the leveling kit includes FOX 2.0 Performance Series coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a matching set of FOX 2.0 Performance shocks for the smoothest ride.

Compatible with:

• Chevrolet:

  • 2019-2025 Silverado 1500 4WD

• GMC:
  • 2019-2025 Sierra 1500 4WD

Notes:

• Requires a maximum of 5.5" BS Wheel for tire clearance to the upper ball joint when used on 2-3.5" kits

• Can be used on Trail Boss / AT4 models, but will net 0" lift

• Will not fit models equipped with ARC
• Recommended Tires & Wheels (Trimming May Be Required): 295 / 70 with 17 x 9 and 5.5 in. Backspace, 295 / 65 with 18 x 9 and 5.5 in. Backspace, or 295 / 60 with 20 x 9 and 5.5 in. Backspace

Features:

• FOX 2.0 performance series struts offer improved damper performance over factory and are a direct bolt-in replacement

• Performance UCAs increase strength and allow for more suspension travel

• FOX 2.0 performance series IFP rear shocks included

• Easy, 100% Bolt on installation

FOX 2.0 Performance Series:

• 2-inch Impact extruded aluminum body

• Internal floating piston (IFP) monotube design

• CNC machined 6061-T6 aluminum mounting ends

• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft

• Race-developed high-flow piston design

• Application-specific valving to maximize performance

• Long-lasting clear anodized finish

Specs:

• Front Lift Method: Coilover
• Front Lift Height: 2"

• Rear Lift Method: Stock
• Rear Lift Height: 0"

You can view and download the assembly instruction booklet here.
