BDS 2019-2025 CHEVY,GMC 1500 4WD 2" LEVELING KIT WITH FOX 2.0 COILOVERS

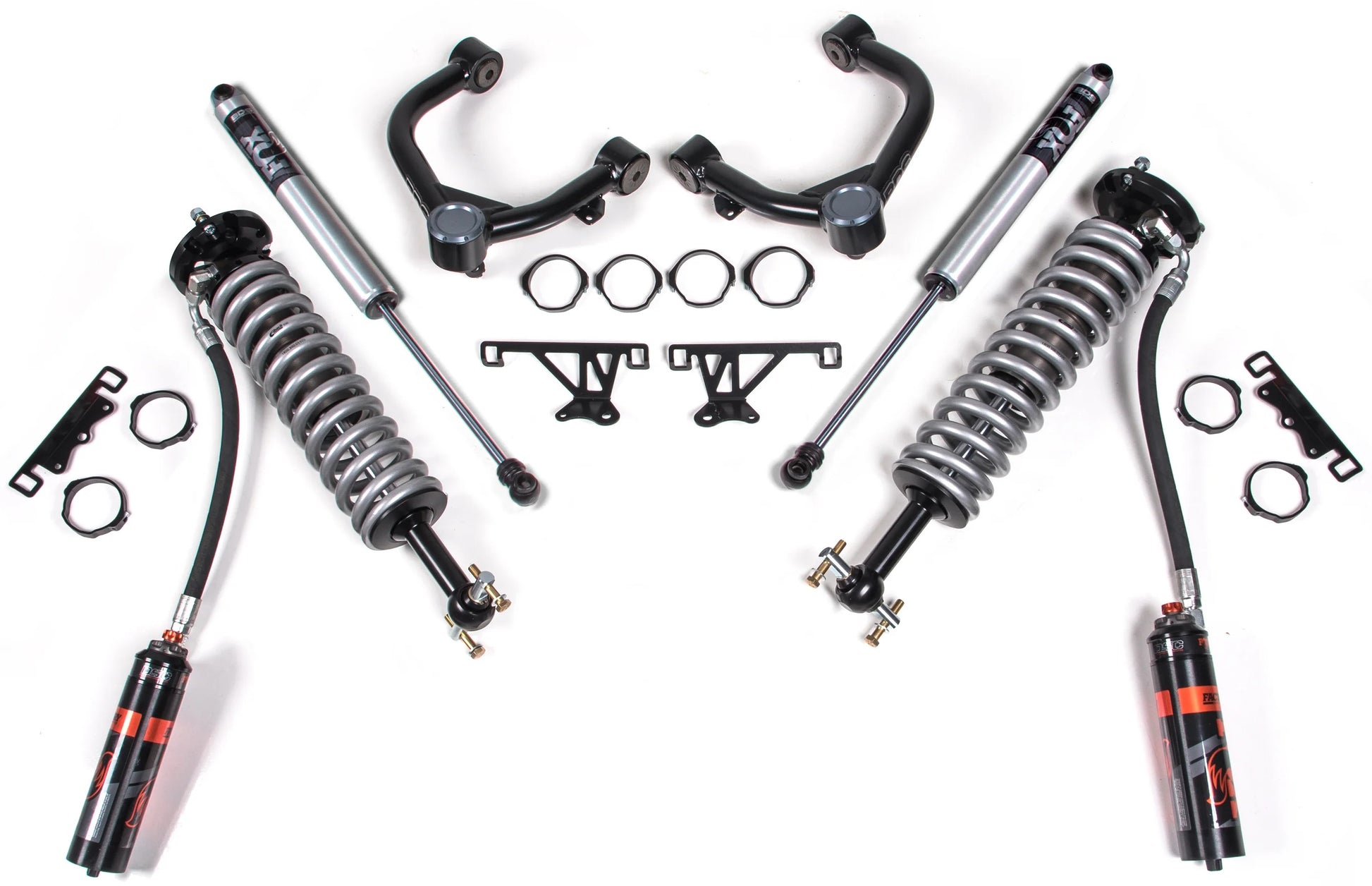

Brand New BDS Suspension 2" Leveling Kit with Front Fox 2.5 Performance Elite Coilovers & Rear Fox 2.0 Shocks (Part #BDS770FDSC).

Take your Chevy Silverado and GMC Sierra 1500 truck to the next level and improve the ride with this 2-inch lift kit featuring FOX 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires. Up front the lift kit includes FOX 2.5 Factory Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a complementary set of FOX 2.0 Performance shocks for the smoothest ride.

Compatible with:

• Chevrolet:

  • 2019-2025 Silverado 1500 4WD

• GMC:
  • 2019-2025 Sierra 1500 4WD

Notes:

• Requires a maximum of 5.5" BS Wheel for tire clearance to the upper ball joint when used on 2-3.5" kits

• Can be used on Trail Boss / AT4 models, but will net 0" lift

• All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition

• Will NOT fit models with a single leaf spring (monoleaf) rear suspension.

• Will not fit models equipped with ARC
• Recommended Tires & Wheels (Trimming May Be Required): 295 / 70 with 17 x 9 and 5.5 in. Backspace, 295 / 65 with 18 x 9 and 5.5 in. Backspace, or 295 / 60 with 20 x 9 and 5.5 in. Backspace

Features:

• FOX 2.5 Factory series coil-overs offer improved damper performance over stock

• Performance UCAs increase strength and allow for more suspension travel

• FOX 2.0 performance series IFP rear shocks included

• Easy, 100% Bolt on installation

FOX 2.5 Performance Elite Series:

• Increased off-road capabilities

• Easily adjust your shock for terrain, load and speed

• 2.5-inch Impact extruded aluminum body

• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft

• External reservoir design separates shock oil from the high-pressure nitrogen

• DSC - Dual Speed Compression Adjuster comes standard

• Fully serviceable for a lifetime of use

Specs:

• Front Lift Method: Coilover
• Front Lift Height: 2"

• Rear Lift Method: Stock
• Rear Lift Height: 0"

You can view and download the assembly instruction booklet here.
