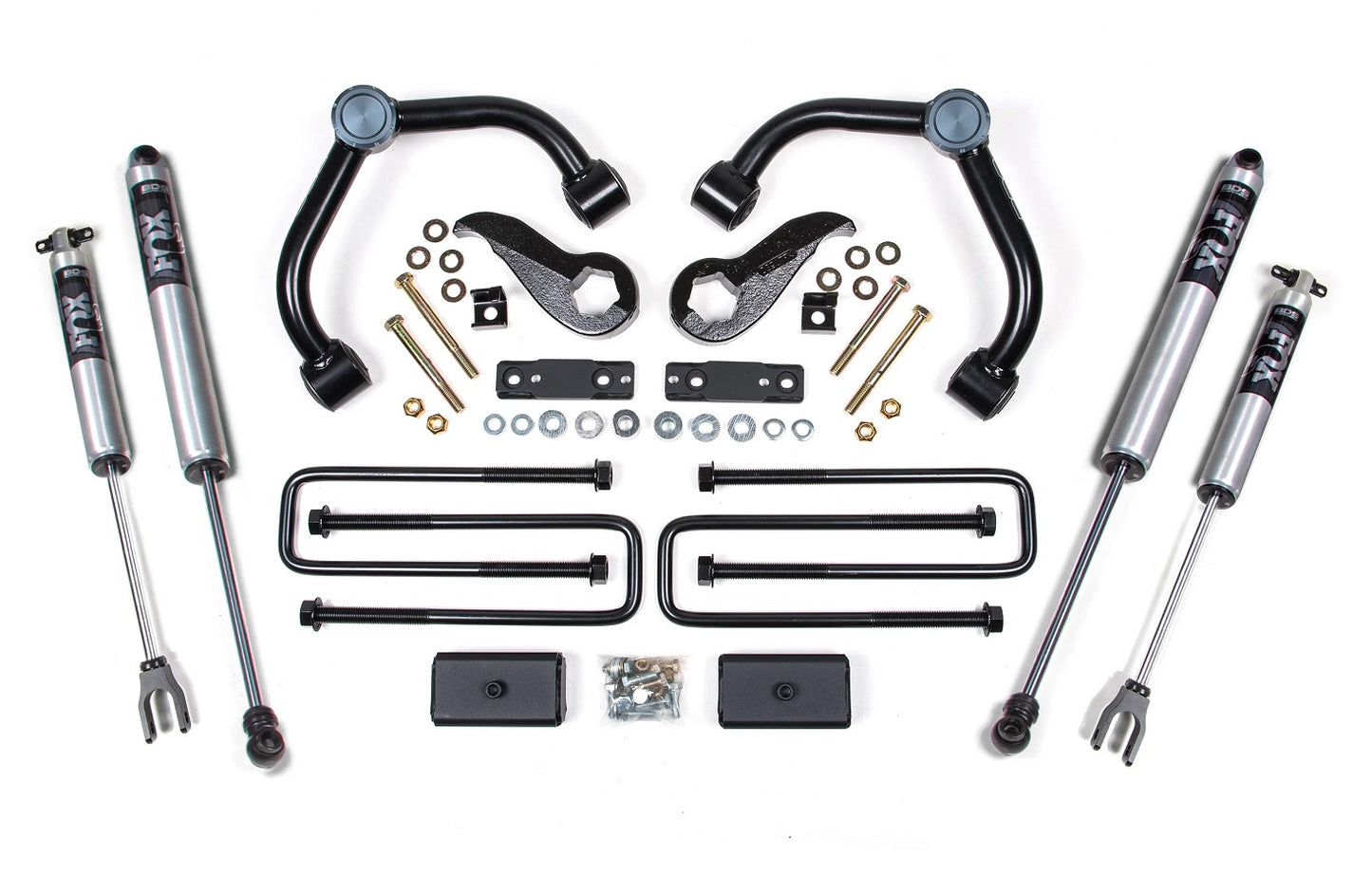

BDS 20-24 GM 2500HD,3500HD 3" BLOCK W/ OVERLOAD,3" LIFT KIT,FOX 2.0 SHOCKS

Brand New BDS Suspension 3" Lift Kit with FOX 2.0 Shocks, FOX 2.0 Rear Shocks, Compatible with 2020-2024 Sierra & Silverado 2500HD, 3500HD (Part #BDS761FS).

Level out your truck and improve the ride with this 3-inch leveling lift kit featuring FOX 2.0 IFP Performance Series shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes FOX 2.0 Performance Series IFP shocks and heavy duty tubular upper control arms for increased strength. Along with the control arms, a pair of indexed cast steel torsion bar keys are supplied upfront to lift the vehicle and a small differential relocation kit is supplied to correct CV axle operating angles without affecting ground clearance. To eliminate sway bar interference, a pair of sway bar relocation brackets is used which maintains proper operating angle.

In the rear, a 2" block and U-bolt kit is used to create a level to slightly tail high stance when unloaded. Rounding out these kits are a pair of specially tuned FOX 2.5 Performance Elite reservoir shocks ready to soak up the terrain.

FOX Performance Elite: FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

HD Upper Control Arms (UCAs): Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

NOTE:

• Disassembly/assembly of the factory torsion bar system requires the use of a special unloading tool. The GM specified tool #CH48809

• Stock wheels and stock tires can be installed, but depending upon alignment and tire profile will be tight to the ball joint cup. ¼” – ½” wheel spacers may be required to use stock wheels and stock tires.

• Will NOT work with AT4X or ZR2 models, lower control arm profile is different

• Dually models must select the "3 Inch Block Kit With Overload" option.
• Recommended Tires & Wheels (Trimming May Be Required) 35 x 12.5 with 20 x 9 and 5.75 in. Backspace, 295 / 60 with 20 x 9 and 5.75 in. Backspace or 285 / 65 with 20 x 9 and 6.18 in. Backspace

Compatible With:

• Chevrolet:

  • 2020-2024 Silverado 2500 HD with Overload Springs

  • 2020-2024 Silverado 3500 HD with Overload Springs
• GMC:
  • 2020-2024 Sierra 2500 HD with Overload Springs
  • 2020-2024 Sierra 3500 HD with Overload Springs

Features:

• FOX 2.0 Performance Series shocks offer improved performance and damper capacity.
  Performance UCAs increase strength and allow for more suspension travel
  High strength cast torsion bar keys use an indexed design to provide additional ride height.
  Sway bar relocation for proper clearance
  Differential relocation to improve CV operating angle.
  Rear block and U-bolt kit provides lift while maintaining spring function and load capacity


Specs:

• Front Lift Method: Torsion Key

• Rear Lift Method: Block

• Shocks Included: Yes

• Front Lift Height: 3"

• Rear Lift Height: 2"

You can view and download the assembly/instruction booklet here.
