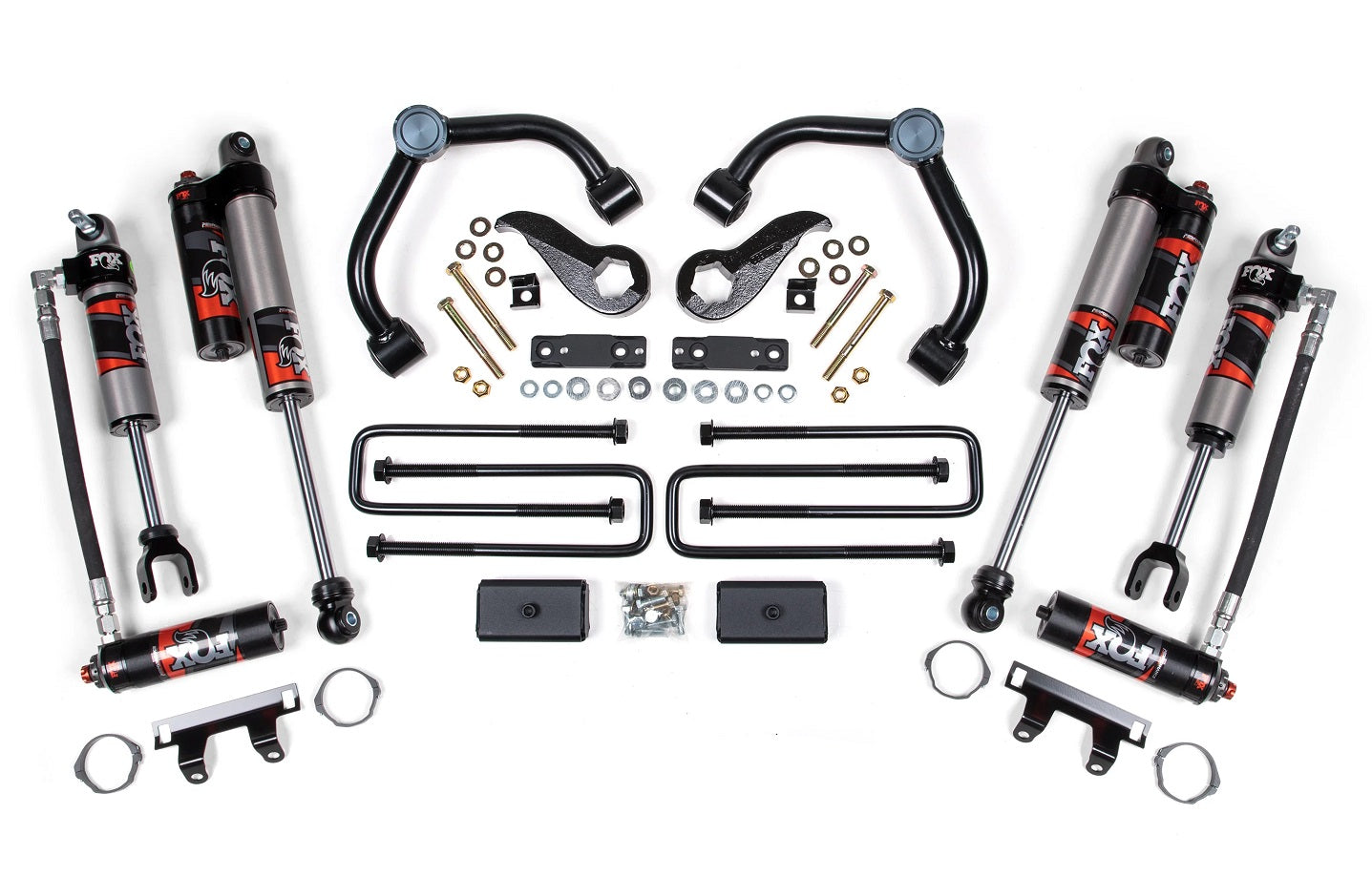

BDS 20-25 GM 2500HD,3500HD 3" BLOCK W/ OVERLOAD,3" LIFT KIT,FOX ELITE COILOVERS

Brand New BDS Suspension 3" Lift Kit with Front FOX 2.5 Shocks, Rear FOX 2.5 Shocks, & 2 Inch Block Kit (Part #BDS761FPE).

Up the ante in your truck and improve the ride with this 3-inch lift kit featuring FOX 2.5 Performance Elite shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires. These kits feature proprietary FOX 2.5 shocks designed specifically to bolt-on performance for increase travel and the ability to soak up the roughest terrain along with smooth on-road comfort. Up front the lift kit includes FOX 2.5 Performance Elite reservoir shocks and heavy duty tubular upper control arms for increased strength. Along with the control arms, a pair of indexed cast steel torsion bar keys are supplied upfront to lift the vehicle and a small differential relocation kit is supplied to correct CV axle operating angles without affecting ground clearance. To eliminate sway bar interference, a pair of sway bar relocation brackets is used which maintains proper operating angle. In the rear, a 2" block and U-bolt kit is used to create a level to slightly tail high stance when unloaded. Rounding out these kits are a pair of specially tuned FOX 2.5 Performance Elite reservoir shocks ready to soak up the terrain.

Compatible With:

• Chevrolet:

  • 2020-2025 Silverado 2500 HD with Overload Springs

  • 2020-2025 Silverado 3500 HD with Overload Springs
• GMC:
  • 2020-2025 Sierra 2500 HD with Overload Springs
  • 2020-2025 Sierra 3500 HD with Overload Springs

Notes:

• Disassembly/assembly of the factory torsion bar system requires the use of a special unloading tool. The GM specified tool #CH48809

• Stock wheels and stock tires can be installed, but depending upon alignment and tire profile will be tight to the ball joint cup. 1/4" and 1/2" wheel spacers may be required to use stock wheels and stock tires.

• Will NOT work with AT4X or ZR2 models, lower control arm profile is different

• Dually models must select the "3 Inch Block Kit With Overload" option.
• Recommended Tires & Wheels (Trimming May Be Required): 35 x 12.5 with 20 x 9 and 5.75 in. Backspace, 295 / 60 with 20 x 9 and 5.75 in. Backspace or 285 / 65 with 20 x 9 and 6.18 in. Backspace

Features:

• FOX 2.5 performance elite series shocks offer next level performance and damper capacity. Aluminum body for faster heat dispersion and DSC adjustable reservoir.

• Performance UCAs increase strength and allow for more suspension travel

• High strength cast torsion bar keys use an indexed design to provide additional ride height.

• Sway bar relocation for proper clearance

• Differential relocation to improve CV operating angle.

• Rear block and U-bolt kit provides lift while maintaining spring function and load capacity

Specs:

• Front Lift Method: Torsion Key
• Front Lift Height: 3"
• Rear Lift Method: Block
• Rear Lift Height: 2"

You can view and download the assembly/instruction booklet here.
