BDS 2014-2018 CHEVY,GMC 1500 4WD,STAMP/ALUM ARMS,2" LEVELING KIT,SNAP RING STRUT

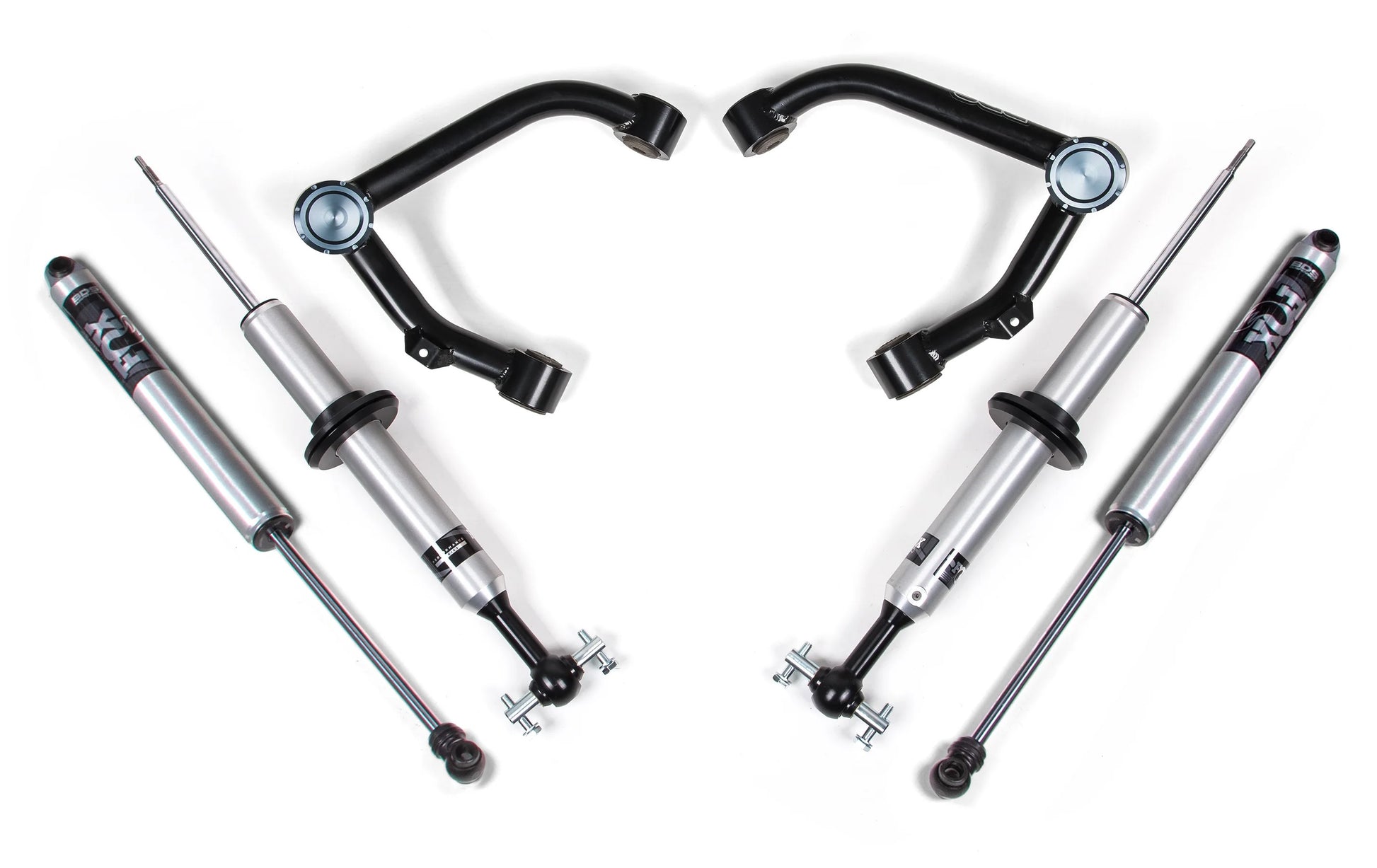

Brand New BDS Suspension 2" Leveling Kit with Front FOX 2.0 Snap Ring Struts & Rear FOX 2.0 Shocks (Part #BDS758FSR).

Built to outperform, upgrade your 2014-2018 Chevy Silverado and GMC Sierra 1500 with this 2-inch lift kit featuring FOX 2.0 Snap Ring Struts from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires. Up front the lift kit includes FOX 2.0 Performance Series strut shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a matching set of FOX 2.0 Performance shocks for the smoothest ride.

Compatible with:

• Chevrolet:

  • 2014-2018 Silverado 1500 4WD with Aluminum/Stamped Steel Control Arms

• GMC:
  • 2014-2018 Sierra 1500 4WD with Aluminum/Stamped Steel Control Arms

Notes:

• GM is producing several knuckle/control arm configurations in 2014-2017 models trucks. Cast Steel control arm equipped models will require the "Cast Steel Control Arm" kit. Stamped Steel and Aluminum control arm equipped models will require the "Aluminum Control Arm" kit. Be sure to verify which factory control arms your truck has before ordering.

• Strut compressor required for Installation
  Snap ring strut kits will reuse factory top mounting hardware AND coil spring
  33x12.50 tires will require weld on steering stop, also it requires inner fender well modification to clear this width tire
• Recommended Tires & Wheels (Trimming May Be Required): 285 / 70 with 17 x 9 and 4.5 in. Backspace, 285 / 70 with 20 x 9 and in. Backspace, or 33 x 12.5 with 20 x 9 and 4.5 in. Backspace

Features:

• FOX 2.0 performance series struts offer improved damper performance over factory and are a direct bolt-in replacement

• Performance UCAs increase strength and allow for more suspension travel

• FOX 2.0 performance series IFP rear shocks included

FOX 2.0 Performance Series:

• 2-inch Impact extruded aluminum body

• Internal floating piston (IFP) monotube design

• CNC machined 6061-T6 aluminum mounting ends

• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft

• Race-developed high-flow piston design

• Application-specific valving to maximize performance

• Long-lasting clear anodized finish

Specs:

• Front Lift Method: Coilover
• Front Lift Height: 2"

• Rear Lift Method: Stock
• Rear Lift Height: 0"

You can view and download the assembly instruction booklet here.
