BDS 2007-2018 CHEVY,GMC 1500 4WD,CAST OE ARMS,2" LEVELING KIT

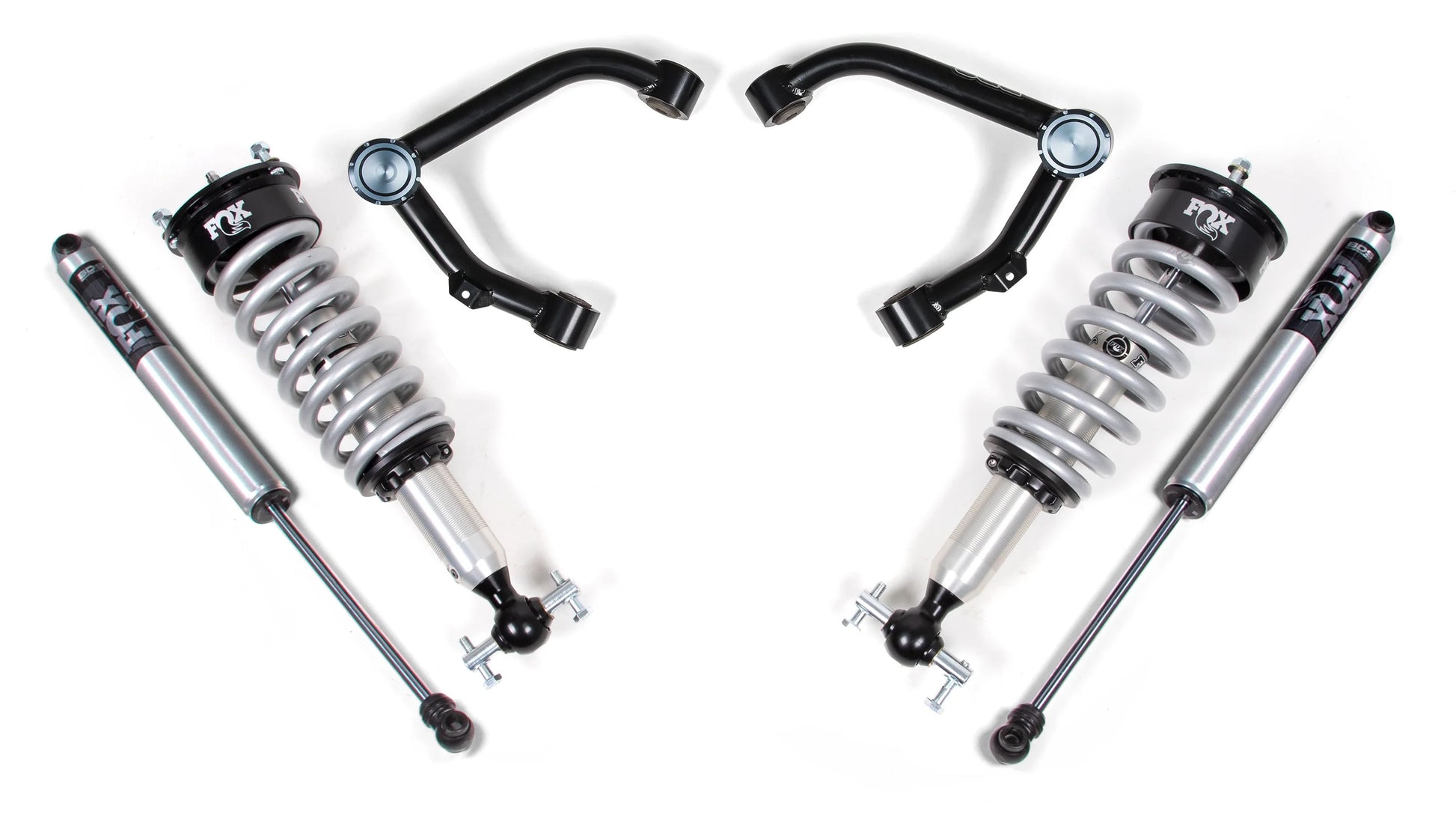

Brand New BDS Suspension 2" Leveling Kit with Front FOX 2.0 Coilovers & Rear FOX 2.0 Shocks (Part #BDS757FSL).

Level out your 2007-2018 Chevy Silverado and GMC Sierra 1500 truck and improve the ride with this 2-inch leveling kit featuring FOX 2.0 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires. Up front the lift kit includes FOX 2.0 Performance Series coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a matching set of FOX 2.0 Performance shocks for the smoothest ride.

Compatible with:

• Chevrolet:

  • 2007-2013 Avalanche 4WD with Cast Steel Control Arms
  • 2007-2018 Silverado 1500 4WD with Cast Steel Control Arms

  • 2015-2018 Suburban 4WD with Cast Steel Control Arms
  • 2007-2014 Suburban 1500 4WD with Cast Steel Control Arms
  • 2007-2018 Tahoe 4WD with Cast Steel Control Arms
• GMC:
  • 2007-2018 Sierra 1500 4WD with Cast Steel Control Arms
  • 2007-2018 Yukon 4WD with Cast Steel Control Arms
  • 2015-2018 Yukon XL 4WD with Cast Steel Control Arms
  • 2007-2014 Yukon XL 1500 4WD with Cast Steel Control Arms


Notes:

• GM is producing several knuckle/control arm configurations in 2014-2017 models trucks. Cast Steel control arm equipped models will require the "Cast Steel Control Arm" kit. Stamped Steel and Aluminum control arm equipped models will require the "Aluminum Control Arm" kit. Be sure to verify which factory control arms your truck has before ordering.

• 33x12.50 tires will require weld on steering stop, also it requires inner fender well modification to clear this width tire

• Will Not fit MagneRide magnetic ride control equipped models
• Recommended Tires & Wheels (Trimming May Be Required): 285 / 70 with 17 x 9 and 4.5 in. Backspace, 285 / 70 with 20 x 9 and 4.5 in. Backspace, or 33 x 12.5 with 20 x 9 and 4.5 in. Backspace

Features:

• FOX 2.0 performance series struts offer improved damper performance over factory and are a direct bolt-in replacement

• Performance UCAs increase strength and allow for more suspension travel

• FOX 2.0 performance series IFP rear shocks included

FOX 2.0 Coilover Shocks:

• These FOX 2.0 Performance Series coil-overs bring impressive damper performance for great ride on and off-road capability designed as a direct bolt-in replacement for the factory strut.
• 2.0" extruded and machined 6061 T6 aluminum body for better heat dispersion
• Internal floating piston (IFP) to eliminate oil aeration, FOX's proprietary internals, 5/8" hard chrome plated heat treated alloy shaft
• Preloaded with springs and top-plate for easy installation.

Specs:

• Front Lift Method: Coilover
• Front Lift Height: 2"

• Rear Lift Method: Stock
• Rear Lift Height: 0"

You can view and download the assembly instruction booklet here.
