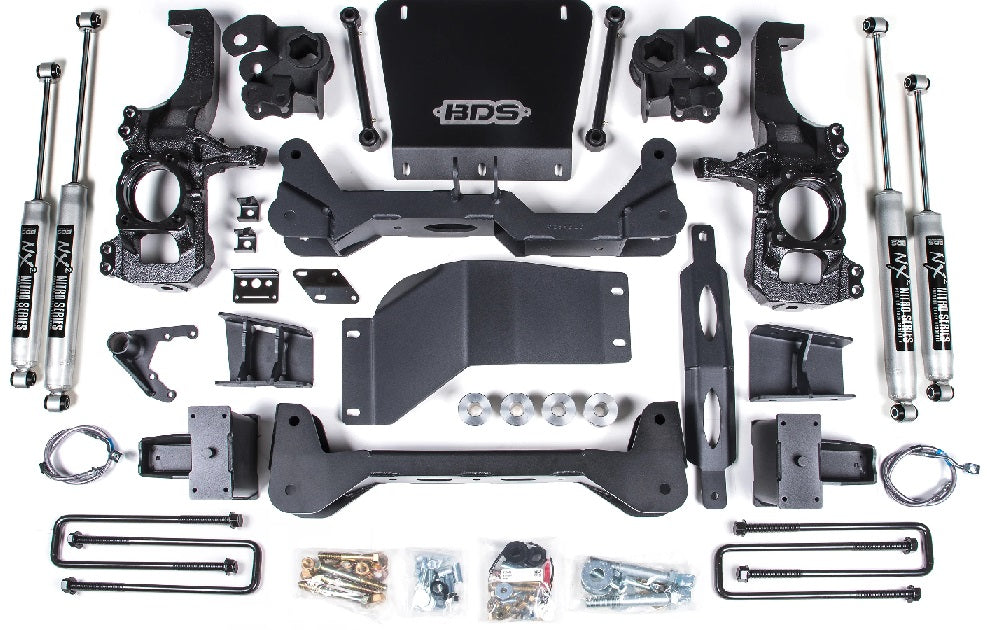

BDS 20-23 GM 2500/3500 HD 6.5" NTBD SUSP. LIFT SYSTEM W/O OVERLOADS

BRAND NEW BDS SUSPENSION 6.5" LIFT KIT, NX2 NITRO SERIES SHOCKS, COMPATIBLE WITH 2020-2024 CHEVY SILVERADO & GMC SIERRA 2500HD/3500HD 4WD

TAKE YOUR 2020-2024 CHEVY SILVERADO AND GMC SIERRA 2500 HD 4WD TO THE NEXT LEVEL BY INSTALLING THIS 6.5-INCH LIFT KIT BY BDS SUSPENSION. FOR MAXIMUM GROUND CLEARANCE, BDS DESIGNED A NO TORSION BAR DROP SYSTEM WHERE THE TORSION BARS ARE MOUNTED DIRECTLY TO THE TOP OF THE LOWER A-ARM REMOVING THE NEED TO DROP THE TORSION BAR CROSS-MEMBER. DESIGNED TO IMPROVE THE STANCE, PERFORMANCE, AND CAPABILITY THIS KIT INCLUDES EVERYTHING NECESSARY TO SET YOUR TRUCK UP RIGHT WITH CLEARANCE FOR UP TO 38" TIRES.

THIS KIT TAKES ADVANTAGE OF BDS TRIED AND TRUE HIGH-CLEARANCE DESIGN FOR IMPROVED GROUND CLEARANCE, STRENGTH, AND OFF-ROAD PROTECTION WHILE CORRECTING SUSPENSION AND STEERING GEOMETRY FOR GREAT ON-ROAD HANDLING CHARACTERISTICS. UP FRONT, THE KIT UTILIZES TORSION BAR RELOCATION BRACKETS, HIGH-ARCHED 1/4-INCH THICK STEEL CROSSMEMBERS ALONG WITH A MULTIPIECE DIFFERENTIAL RELOCATION BRACKETS AND HEAVY DUTY SKID PLATES BUILT FOR OFF-ROAD PROTECTION.

STEERING GEOMETRY IS CORRECTED AT THE NEW TALLER RIDE HEIGHT WITH CNC-MACHINED DUCTILE IRON STEERING KNUCKLES. THESE COMBINED WITH THE PROVIDED SWAY BAR DROPS, STAINLESS STEEL BRAKE LINES, SUPPLIED HARDWARE AND MORE PROVIDE A COMPREHENSIVE FRONT SUSPENSION LIFT READY FOR WHATEVER YOU THROW AT IT.

IN THE REAR BDS OFFERS REPLACEMENT LIFT BLOCKS AND U-BOLTS TO LIFT AND LEVEL THAT STANCE. THE LIFT BLOCK INSTALLS IN PLACE OF THE STOCK BLOCK AND RETAINS RIDE QUALITY AND LOAD CAPACITY. ALSO INCLUDED, BDS SUPPLIES BRAKE LINE AND ABS LINE RELOCATION BRACKETS ALLOW THE USE OF FACTORY BRAKE LINES.

NOTE: FOR DRW MODELS, USE THE WITH OVERLOAD REAR LIFT OPTION

NOTE: REQUIRES FRAME BRACKET MODIFICATION.

NOTE: TORSION BAR TOOL REQUIRED TO LOAD/UNLOAD TORSION BARS, THE GM SPECIFIED TOOL IS #CH48809.

NOTE: MODELS WITH TWO-PIECE REAR DRIVESHAFTS WILL REQUIRE A CARRIER BEARING DROP KIT.

NOTE: FACTORY 17-18" WHEELS CANNOT BE REINSTALLED DUE TO TIE ROD END INTERFERENCE, STOCK 20" WHEELS CAN BE REINSTALLED WITH UP TO A 35X12.50 TIRE.

NOTE: IN SOME CASES VEHICLES USED IN 4WD ON THE HIGHWAY REGULARLY COULD POTENTIALLY EXPERIENCE A MINOR FRONT DRIVELINE VIBRATION. IF THIS OCCURS WE RECOMMEND REPLACING THE FRONT DRIVESHAFT WITH A DUAL CARDAN STYLE DRIVESHAFT.

NOTE: DO NOT INSTALL THIS SUSPENSION SYSTEM IN CONJUNCTION WITH ANY TYPE OF TORSION BAR LIFT KEYS TO ACHIEVE MORE THAT TESTED 6.5" LIFT HEIGHT.

NOTE: SOME MINOR TRIM WILL BE REQUIRED WITH CERTAIN WHEEL/TIRE COMBINATION. THIS IS NORMAL WITH MOST AFTERMARKET TIRE/WHEEL FITMENT ON CHEVY/GM TRUCKS. TRIMMING WILL NORMALLY INCLUDED THE BOTTOM EDGE OF THE INNER FENDER SHROUDS AND/OR LOWER CORNER OF FRONT BUMPER VALANCE. AS A RULE OF THUMB, DEEPER BACKSPACING AND SHORTER/NARROWER TIRES WILL REDUCE/REMOVE TRIMMING REQUIRED.

COMPATIBLE WITH:

• CHEVROLET:
• 2020-2024 SILVERADO 2500 HD
• 2020-2024 SILVERADO 3500 HD
• GMC:
• 2020-2024 SIERRA 2500 HD
• 2020-2024 SIERRA 3500 HD

HIGH CLEARANCE CROSSMEMBERS:

• BDS MAXIMIZES GROUND CLEARANCE WITH THEIR HEAVY DUTY 1/4-INCH THICK LASER CUT PERFECT FIT CROSSMEMBERS. PAIRED WITH A FRONT SKID PLATE SYSTEM THAT BOLTS TOGETHER TO CREATE A RIGID SUBFRAME WHILE ADDING EXTRA PROTECTION.

RECOMMENDED TIRES & WHEELS:

• 37 X 12.5 WITH 17 X 9 AND 4.625 IN. BACKSPACE
• 37 X 12.5 WITH 18 X 9 AND 4.625 IN. BACKSPACE
• 38 X 13.5 WITH 20 X 9 AND 6.18 IN. BACKSPACE

HEAVY DUTY STEERING KNUCKLES:

• BDS CORRECTS STEERING GEOMETRY AT THE NEW TALLER RIDE HEIGHT USING A PAIR OF HIGH-STRENGTH, CNC MACHINED DUCTILE CAST IRON STEERING KNUCKLE DESIGN TO WORK WITH FACTORY TIE ROD ENDS TO MAINTAIN STEERING ANGLES FOR PROPER FUNCTION AND ESC COMPATIBILITY.

NX2 NITRO SERIES:

• NITROGEN-CHARGED
• TWIN-TUBE DESIGN
• 10-STAGE VELOCITY-SENSITIVE VALVING
• DUAL-WELDED ENDS FOR INCREASED STRENGTH
• 1-3/8-INCH HIGH-FLOW PISTON
• SELF-LUBRICATING SEALS
• SILVER POWDER COAT FINISH

FEATURES:

• HIGH CLEARANCE DESIGN WITH NO TORSION BAR DROP MAXIMIZES GROUND CLEARANCE
• ROBUST STEERING KNUCKLES MAINTAIN ESC SYSTEM COMPLIANCE
• HD SKID PLATE SYSTEM IMPROVED OFF-ROAD PROTECTION
• MULTIPOINT DIFFERENTIAL RELOCATION BRACKETS TO SECURE THE FRONT AXLE AND IMPROVE CV ANGLES

SPECS:

• FRONT LIFT METHOD: CROSS-MEMBER
• REAR LIFT METHOD: BLOCK
• SHOCKS INCLUDED: YES
• FRONT LIFT HEIGHT: 6.5"
• REAR LIFT HEIGHT: 5"

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS LIFT KIT HERE.
