BDS 2014-2018 CHEVY,GMC 1500 4WD STAMPED/ALUM ARMS,8" LIFT KIT,NITRO SHOCKS

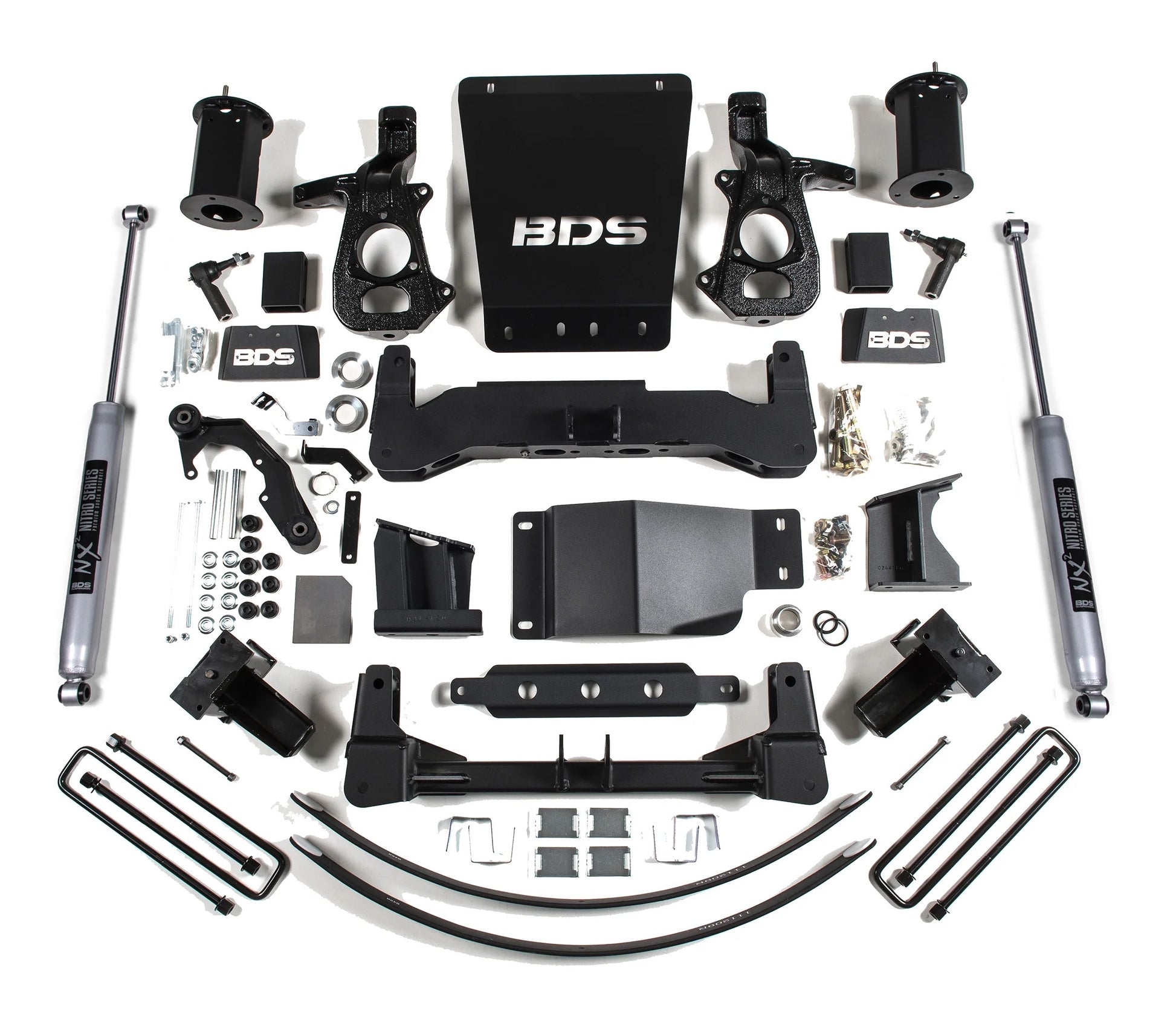

Brand New BDS Suspension 8" Lift Kit with Nitro Shocks & Block Kit (Part #BDS743H).

Go big with the BDS 8-inch lift kit for your 2014-2018 Chevy Silverado and GMC Sierra 1500 resulting in one of a kind lifted truck. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires. This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and off-road protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes top mount strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for off-road protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it. In the rear BDS offers both replacement lift block / add-a-leaf combo and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts and brake line brackets.

Compatible with:

• Chevrolet:

  • 2014-2018 Silverado 1500 4WD with Aluminum/Stamped Steel Control Arms

• GMC:
  • 2014-2018 Sierra 1500 4WD with Aluminum/Stamped Steel Control Arms

Notes:

• GM is producing several knuckle/control arm configurations in 2014-2017 models trucks. Cast Steel control arm equipped models will require the "Cast Steel Control Arm" kit. Stamped Steel and Aluminum control arm equipped models will require the "Aluminum Control Arm" kit. Be sure to verify which factory control arms your truck has before ordering.

• Requires frame bracket modification

• Requires differential modification to clear electric power steering

• Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference.

• All wheel drive models require drive line modification.
• Recommended Tires & Wheels (Trimming May Be Required): 35 x 12.5 with 18 x 9 and 5 in. Backspace, 35 x 12.5 with 20 x 9 and 5.5 in. Backspace, or 35 x 12.5 with 22 x 10 and 5.5 in. Backspace

Features:

• High clearance crossmember design maximizes ground clearance

• Robust steering knuckles maintain ESC system compliance

• HD skid plate system improved off-road protection

• Multipoint differential relocation brackets to secure the front axle and improve CV angles

NX2 Nitro Series:

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs:

• Front Lift Method: Crossmember
• Front Lift Height: 8"

• Rear Lift Method: Block
• Rear Lift Height: 6"

You can view and download the assembly instruction booklet here.
