BDS 01-10 CHEVY 2500HD,3500HD 4WD FOX 2.5 COILOVER CONVERSION FOR 6.5" LIFTS
BDS 01-10 CHEVY 2500HD,3500HD 4WD FOX 2.5 COILOVER CONVERSION FOR 6.5" LIFTS
SKU:STU BDS741FDSC
Couldn't load pickup availability

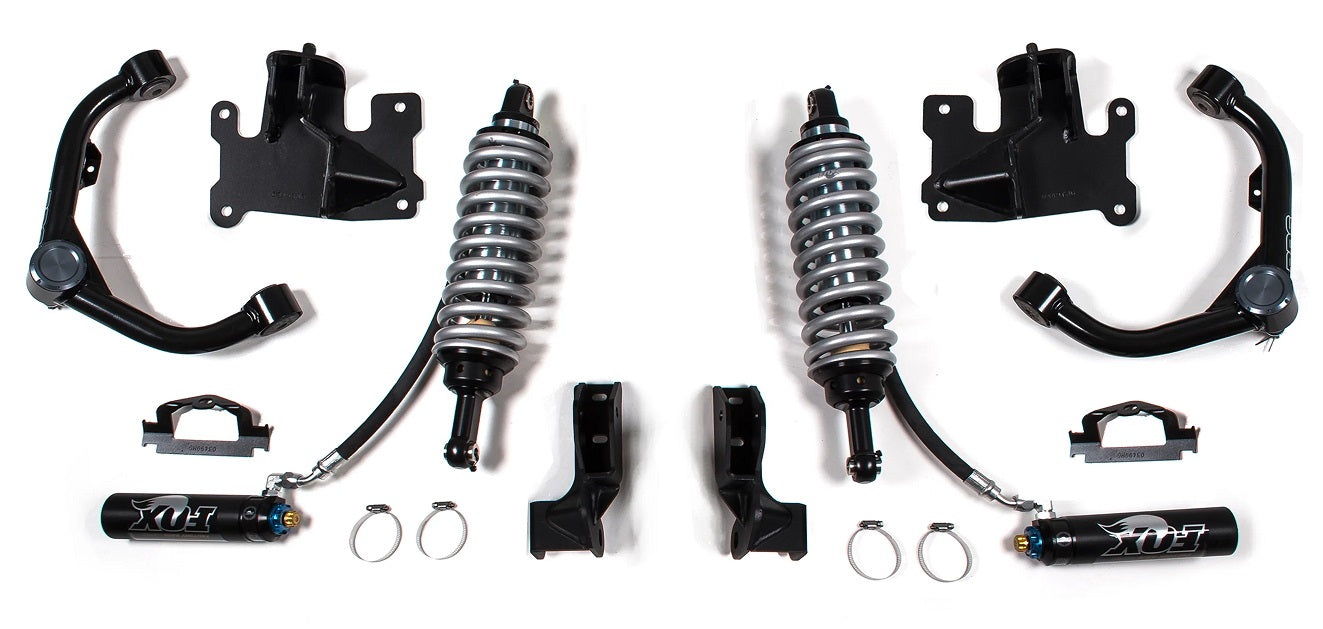

Brand New BDS Suspension 6.5" Conversion Upgrade Kit with FOX 2.5 DSC Factory Race Coilovers (Part #BDS741FDSC).
BDS offers complete coilover conversion upgrade kits for your Chevy Silverado and GMC Sierra 2500 / 3500 HD that make it effortless to convert your standard lifted suspension into coilovers. These kits are equipped with heavy-duty brackets and FOX 2.5 Coilovers to withstand any rugged use and abuse you subject them to, taking your vehicle's performance to new heights. These upgrade kits are compatible with existing BDS 6.5-inch lift kits, allowing for seamless integration. BDS provides a bolt-on bracket for mounting the coilovers to the frame in the shock mount location. To reinforce the upper mount, a weld-in support gusset is utilized. Aside from replacing the factory torsion bars, the upper and lower control arms are also upgraded for enhanced strength and travel to accommodate the new coilovers. The tubular performance upper control arms, specially designed by BDS for this system, work seamlessly with the 2.5 coilovers. The new lower control arms, on the other hand, are built from high-strength steel, fully boxed, and internally gusseted to complement the uppers.
Fits:
- Chevy:
- 2001-2010 Silverado 2500HD Diesel 4WD with Existing Lift
- 2007-2010 Silverado 3500HD Diesel 4WD with Existing Lift
- GMC:
- 2001-2010 Sierra 2500HD Diesel 4WD with Existing Lift
- 2007-2010 Sierra 3500HD Diesel 4WD with Existing Lift
- Torsion bar tool required to unload torsion bars
- Requires frame bracket modification
- Coilovers are preset for diesel, gas models will require preload adjustment (use #129600 spanner wrench)
- Gas models will require exhaust modification
- Recommended Tires & Wheels (Trimming May Be Required): 33 x 12.5 with 16 x 8 and 4.5 in. Backspace, 33 x 12.5 with 17 x 9 and 5.5 in. Backspace, or 33 x 12.5 with 20 x 9 and 5.75 in. Backspace
Features:
- FOX 2.5 coil-overs offer improved damper performance over stock
- DSC Adjuster allows easy high-speed and low-speed compression tuning for optimal performance in any terrain
- Performance UCAs increase strength and allow for more suspension travel
- High Clearance design w/ no torsion bar drop maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- HD skid plate system improved off-road protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
FOX 2.5 DSC Coil-Overs:
- FOX 2.5 Factory DSC shocks offer next level performance for on-road comfort and off-road comfort capability.
- Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology.
- Include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.
- The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
Specs:
- Adjustable Dampening: Yes
- Front Lift Height: 6.5"
