BDS 15-19 TAHOE,YUKON,SUBURBAN 4WD STAMP/ALUM ARMS,6" LIFT KIT,AUTORIDE EQUIPPED

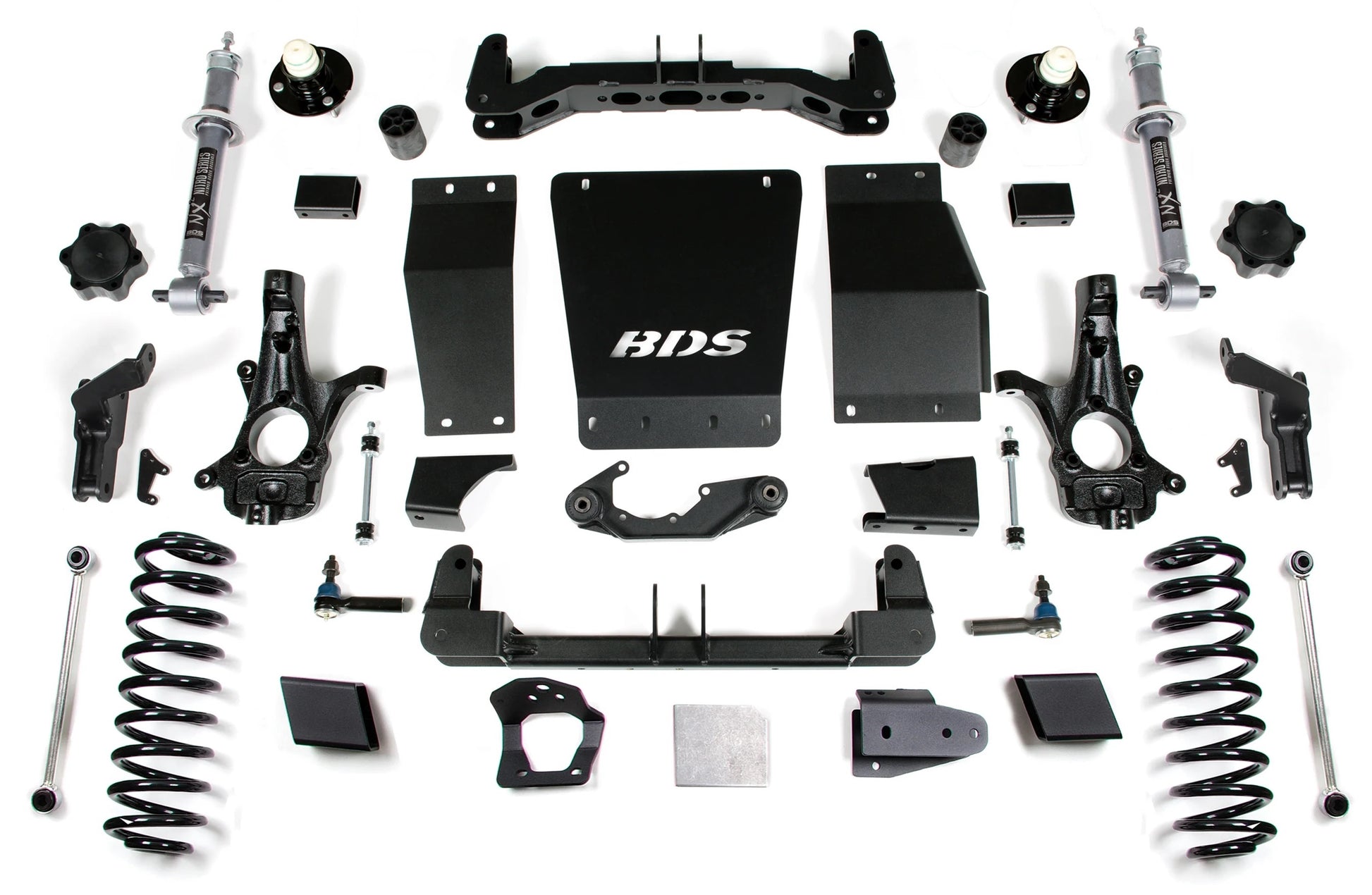

Brand New BDS Suspension 6" Lift Kit with Front Nitro Struts & Rear Factory Autoride Equipped (Part #BDS736H).

Take your 2015-2019 Chevy Suburban, or Tahoe and GMC Yukon 1500 to new heights with a BDS 6-inch lift kit. Works only on Autoride equipped SUVs. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires. This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and off-road protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes a full length NX2 nitrogen charged strut, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for off-road protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it. In the rear BDS offers new Pro-Ride coil springs for on-road ride quality as well as serious off road performance, anti-sway bar links, track bar relocation system, and adjustable upper control arms allowing you to properly adjust pinion angle. The rear sensors are relocated using the supplied brackets along with rear shock extensions to retain the factory electronic dampers.

Compatible with:

• Chevrolet:

  • 2015-2019 Suburban 4WD with Aluminum/Stamped Steel Steel Control Arms
  • 2015-2019 Tahoe 4WD with Aluminum/Stamped Steel Control Arms
• GMC:
  • 2015-2019 Yukon 4WD with Aluminum/Stamped Steel Control Arms
  • 2015-2019 Yukon XL 1500 4WD with Aluminum/Stamped Steel Control Arms

Notes:

• GM is producing several knuckle/control arm configurations in 2015-2016 model trucks. Cast Steel control arm equipped models will require the "Cast Steel Control Arm" kit. Stamped Steel and Aluminum control arm equipped models will require the "Aluminum Control Arm" kit.
• Frame bracket modification and welding are required.

• 20" wheels with 5" to 5-3/4" backspacing are recommended to reduce trimming.

• AWD models may require front driveline modification

• Factory 17" and 18" wheels cannot be reinstalled due to tie rod interference.
• Recommended Tires & Wheels (Trimming May Be Required): 33 x 12.5 with 17 x 8 and 4.5 in. Backspace, 34 x 12.5 with 18 x 9 and 5 in. Backspace, or 35 x 12.5 with 20 x 9 and 5.75 in. Backspace

Features:

• Includes shock relocation brackets to maintain factory Autoride shocks

• High clearance crossmember design maximizes ground clearance

• Robust steering knuckles maintain ESC system compliance

• High-strength replacement upper control arms provide durability and serviceability

• HD skid plate system improved off-road protection

• Multipoint differential relocation brackets to secure the front axle and improve CV angles

NX2 Nitro Series:

• Nitrogen-charged

• Twin-tube design

• 10-stage velocity-sensitive valving

• Dual-welded ends for increased strength

• 1-3/8-inch high-flow piston

• Self-lubricating seals

• Silver powder coat finish

Specs:

• Front Lift Method: Crossmember
• Front Lift Height: 6"

• Rear Lift Method: Coil Spring
• Rear Lift Height: 5"

You can view and download the assembly instruction booklet here and here.
