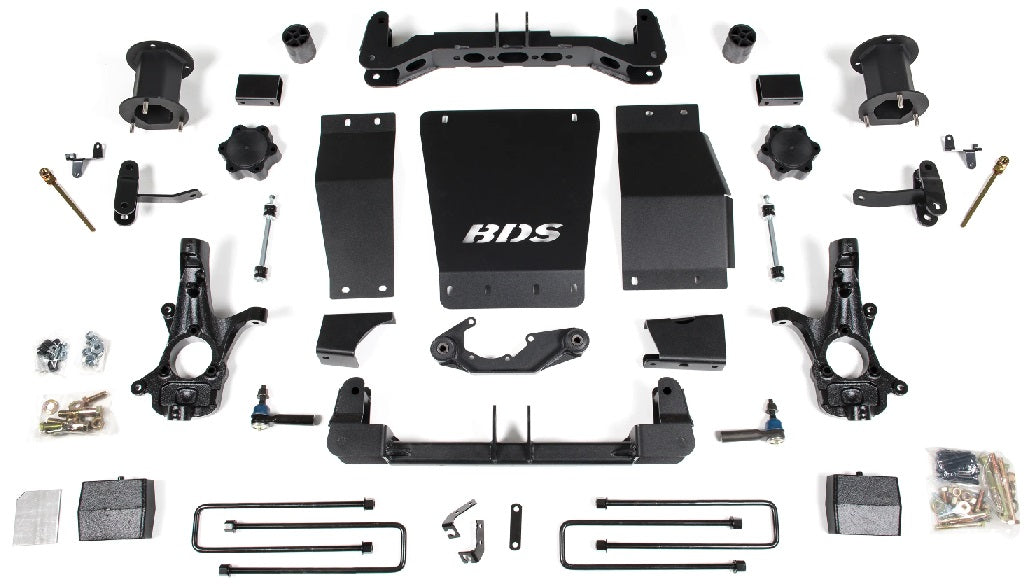

BDS 14-18 1500 6" W/MAGNERIDE -ALUM/STAMPED

BRAND NEW BDS SUSPENSION 6" LIFT KIT, MAGNERIDE EQUIPPED, COMPATIBLE WITH 2014-2018 GMC SIERRA 1500 4WD

TAKE YOUR 2014-2018 GMC SIERRA 1500 TO NEW HEIGHTS WITH A BDS 6-INCH LIFT KIT. WORKS ONLY ON MAGNERIDE EQUIPPED TRUCKS. DESIGNED TO IMPROVE STANCE, PERFORMANCE, AND CAPABILITY, THIS KIT INCLUDES EVERYTHING NECESSARY TO SET YOUR TRUCK UP RIGHT WITH CLEARANCE FOR UP TO 35" TIRES.

THIS KIT TAKES ADVANTAGE OF BDS TRIED AND TRUE HIGH-CLEARANCE DESIGN FOR IMPROVED GROUND CLEARANCE, STRENGTH, AND OFF-ROAD PROTECTION WHILE CORRECTING SUSPENSION AND STEERING GEOMETRY FOR GREAT ON-ROAD HANDLING CHARACTERISTICS. UP FRONT, THE KIT UTILIZES A TOP MOUNTED STRUT SPACER, HIGH-ARCHED 1/4-INCH THICK STEEL CROSSMEMBERS ALONG WITH A MULTIPIECE DIFFERENTIAL RELOCATION BRACKETS AND HEAVY DUTY SKID PLATES BUILT FOR OFF-ROAD PROTECTION.

STEERING GEOMETRY IS CORRECTED AT THE NEW TALLER RIDE HEIGHT WITH CNC-MACHINED DUCTILE IRON STEERING KNUCKLES. THESE COMBINED WITH THE PROVIDED SWAY BAR DROPS, BUMP STOP EXTENSIONS, BRAKE LINE BRACKETS, CV SPACERS, SUPPLIED HARDWARE AND MORE PROVIDE A COMPREHENSIVE FRONT SUSPENSION LIFT READY FOR WHATEVER YOU THROW AT IT.

IN THE REAR BDS OFFERS NEW PRO-RIDE COIL SPRINGS FOR ON-ROAD RIDE QUALITY AS WELL AS SERIOUS OFF ROAD PERFORMANCE, ANTI-SWAY BAR LINKS, TRACK BAR RELOCATION SYSTEM, AND ADJUSTABLE UPPER CONTROL ARMS ALLOWING YOU TO PROPERLY ADJUST PINION ANGLE. THE REAR SENSORS ARE RELOCATED USING THE SUPPLIED BRACKETS ALONG WITH REAR SHOCK EXTENSIONS TO RETAIN THE FACTORY ELECTRONIC DAMPERS.

NOTE: GM IS PRODUCING SEVERAL KNUCKLE/CONTROL ARM CONFIGURATIONS IN 2014-2017 MODELS TRUCKS. CAST STEEL CONTROL ARM EQUIPPED MODELS WILL REQUIRE THE "CAST STEEL CONTROL ARM" KIT. STAMPED STEEL AND ALUMINUM CONTROL ARM EQUIPPED MODELS WILL REQUIRE THE "ALUMINUM CONTROL ARM" KIT.

NOTE: REQUIRES FRAME BRACKET MODIFICATION. REQUIRES DIFFERENTIAL MODIFICATION TO CLEAR ELECTRIC POWER STEERING.

NOTE: FACTORY 17" & 18" WHEELS CANNOT BE REINSTALLED DUE TO TIE ROD END INTERFERENCE.

COMPATIBLE WITH:

• GMC:
• 2014-2018 SIERRA 1500 4WD

HIGH CLEARANCE CROSSMEMBERS:

• BDS MAXIMIZES GROUND CLEARANCE WITH THEIR HEAVY DUTY 1/4-INCH THICK LASER CUT PERFECT FIT CROSSMEMBERS. PAIRED WITH A FRONT SKID PLATE SYSTEM THAT BOLTS TOGETHER TO CREATE A RIGID SUBFRAME WHILE ADDING EXTRA PROTECTION.

RECOMMENDED TIRES & WHEELS:

• 33 X 12.5 WITH 17 X 8 AND 4.5 IN. BACKSPACE
• 34 X 12.5 WITH 18 X 9 AND 5 IN. BACKSPACE
• 35 X 12.5 WITH 20 X 9 AND 5.75 IN. BACKSPACE

HEAVY DUTY STEERING KNUCKLES:

• BDS CORRECTS STEERING GEOMETRY AT THE NEW TALLER RIDE HEIGHT USING A PAIR OF HIGH-STRENGTH, CNC MACHINED DUCTILE CAST IRON STEERING KNUCKLE DESIGN TO WORK WITH FACTORY TIE ROD ENDS TO MAINTAIN STEERING ANGLES FOR PROPER FUNCTION AND ESC COMPATIBILITY.

FEATURES:

• INCLUDES SHOCK RELOCATION BRACKETS TO MAINTAIN FACTORY MAGNERIDE SHOCKS
• HIGH CLEARANCE CROSSMEMBER DESIGN MAXIMIZES GROUND CLEARANCE
• ROBUST STEERING KNUCKLES MAINTAIN ESC SYSTEM COMPLIANCE
• HIGH-STRENGTH REPLACEMENT UPPER CONTROL ARMS PROVIDE DURABILITY AND SERVICEABILITY
• HD SKID PLATE SYSTEM IMPROVED OFF-ROAD PROTECTION
• MULTIPOINT DIFFERENTIAL RELOCATION BRACKETS TO SECURE THE FRONT AXLE AND IMPROVE CV ANGLES
• FACTORY PROTECTION PLUS DRIVETRAIN WARRANTY INCLUDED

SPECS:

• FRONT LIFT METHOD: CROSS-MEMBER
• REAR LIFT METHOD: BLOCK
• SHOCKS INCLUDED: NO
• FRONT LIFT HEIGHT: 6"
• REAR LIFT HEIGHT: 5"

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS LIFT KIT HERE.
