BDS 11-19 GM 2500HD,3500HD W/ OVERLOAD,4.5" LIFT KIT,2" REAR BLOCK,NITRO SHOCKS

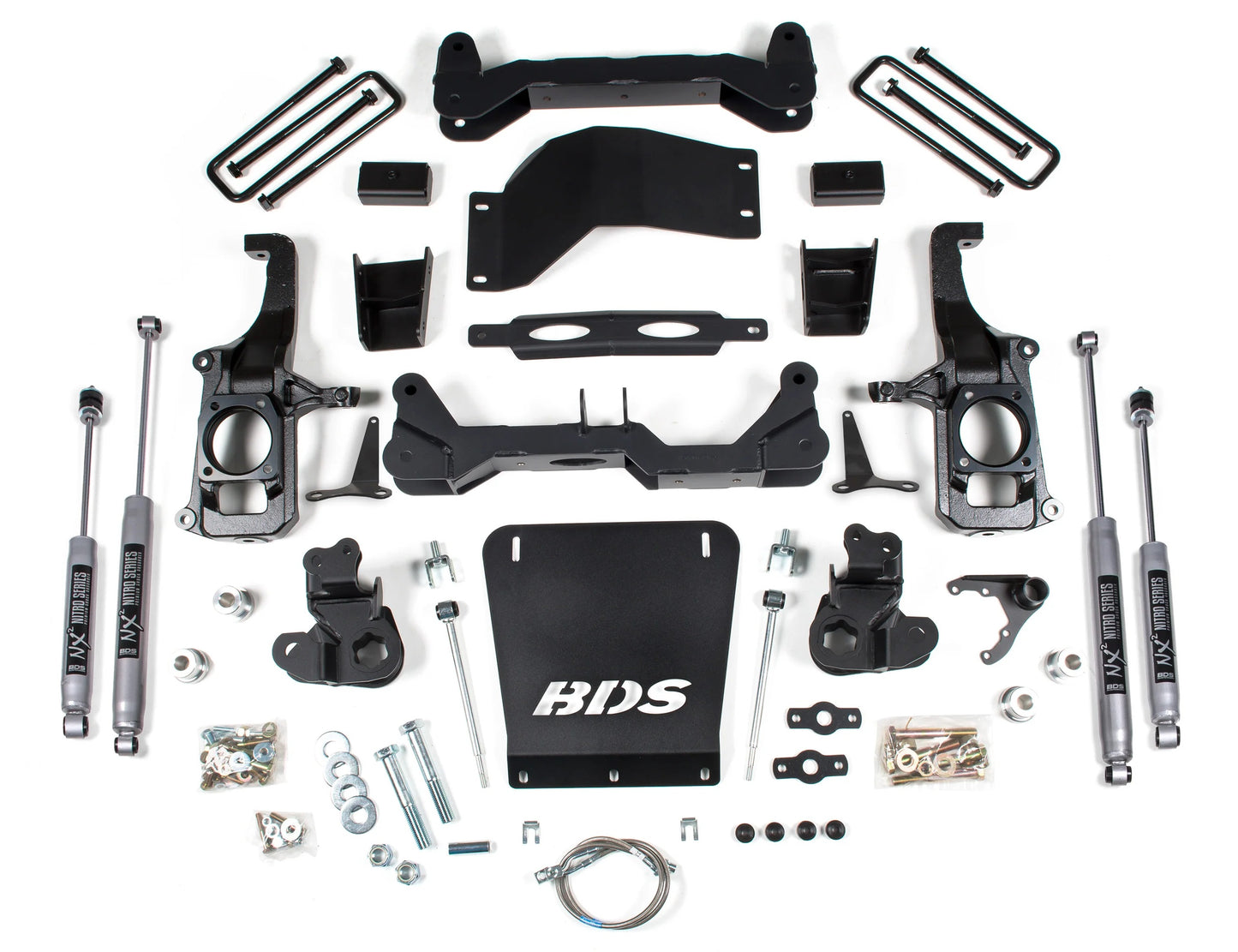

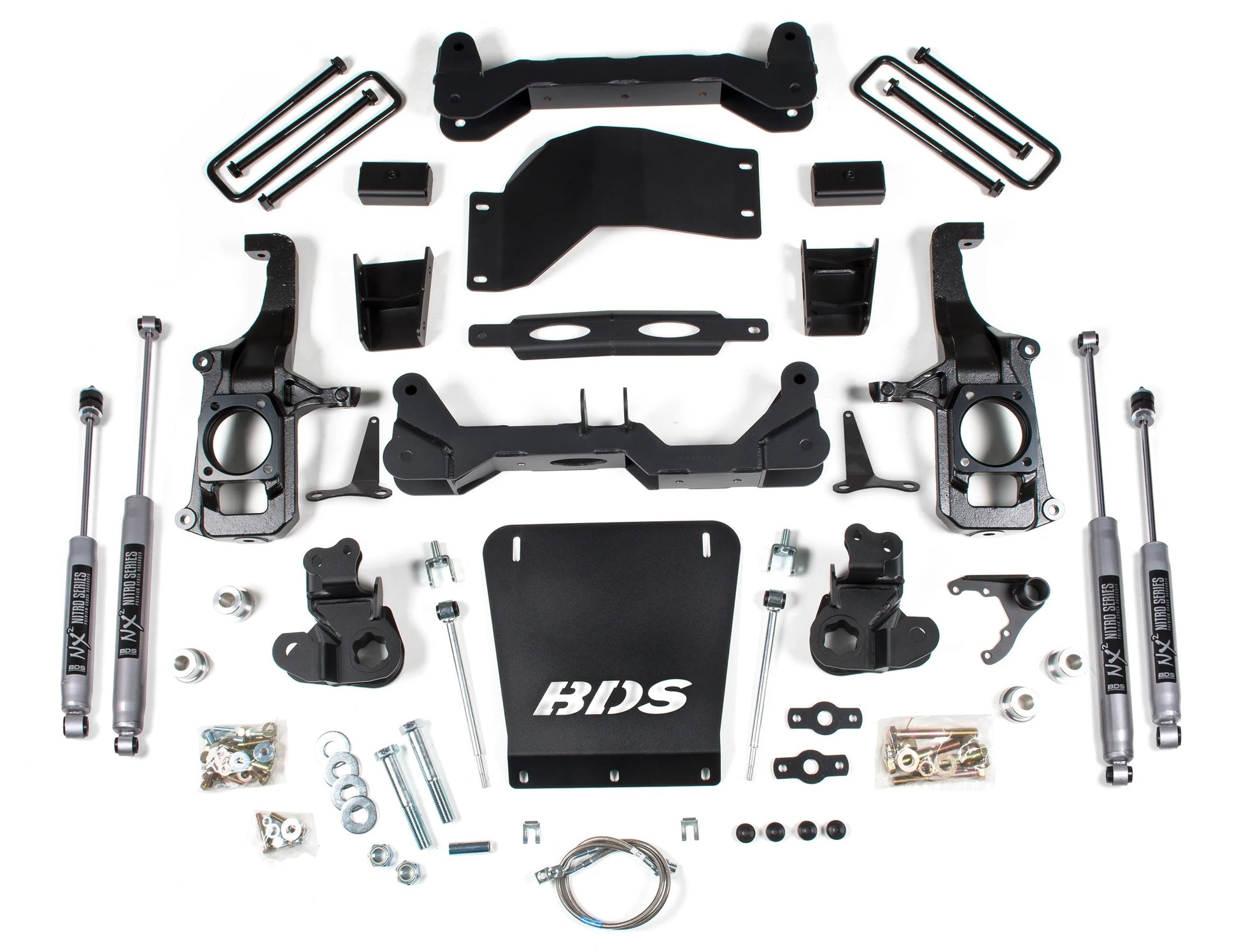

Brand New BDS Suspension 4.5" Lift Kit with Front Nitro Shocks, Rear Nitro Shocks, & 2 Inch Block Kit (Part #BDS721H).

Improve the stance, performance, and capability of your 2011-2019 Chevy Silverado and GMC Sierra 2500 HD 4WD with a BDS 4.5-inch lift kit. For maximum ground clearance, BDS designed a No Torsion Bar Drop System where the torsion bars are mounted directly to the top of the lower a-arm eliminating the need to drop the torsion bar cross-member. This kit includes everything necessary to set your truck up right with clearance for up to 35" tires. This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and off-road protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes torsion bar relocation brackets, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for off-road protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar links, bump stop extensions, stainless steel brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it. In the rear BDS offers replacement lift blocks to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity.

Compatible with:

• Chevrolet:

  • 2011-2019 Silverado 2500 HD 4WD with Overload Springs
  • 2011-2019 Silverado 3500 HD 4WD with Overload Springs
• GMC:
  • 2011-2019 Sierra 2500 HD 4WD with Overload Springs
  • 2011-2019 Sierra 3500 HD 4WD with Overload Springs

Notes:

• Torsion Bar Tool required to load/unload the torsion bars.
• Stock 17" & 18" wheels cannot be reinstalled.
• Stock 20" wheels cannot be reinstalled on 2015-2019 models
• Factory dually wheels cannot be reinstalled.
• Models with two-piece rear driveshaft may require #121612.
• Top mounted rear overload spring-equipped models require a different kit than non-overload equipped models. Be sure to select the correct option for your truck.
• Depending on the specific wheel and tire combination trimming may be required for 35x12.50s
• Recommended Tires & Wheels (Trimming May Be Required): 35 x 12.5 with 17 x 8 and 4.625 in. Backspace, 35 x 12.5 with 18 x 9 and 4.625 in. Backspace, or 35 x 12.5 with 20 x 9 and 6 in. Backspace

Features:

• High Clearance design w/ no torsion bar drop maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system improved off-road protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles

NX2 Nitro Series:

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs:

• Front Lift Method: Crossmember
• Front Lift Height: 4.5"
• Rear Lift Method: Block
• Rear Lift Height: 2"

You can view and download the assembly or instruction booklet here and here.
