BDS 1984-2001 JEEP CHEROKEE XJ 3" LIFT KIT,NITRO SHOCKS,CHRYSLER,LEAF SPRINGS

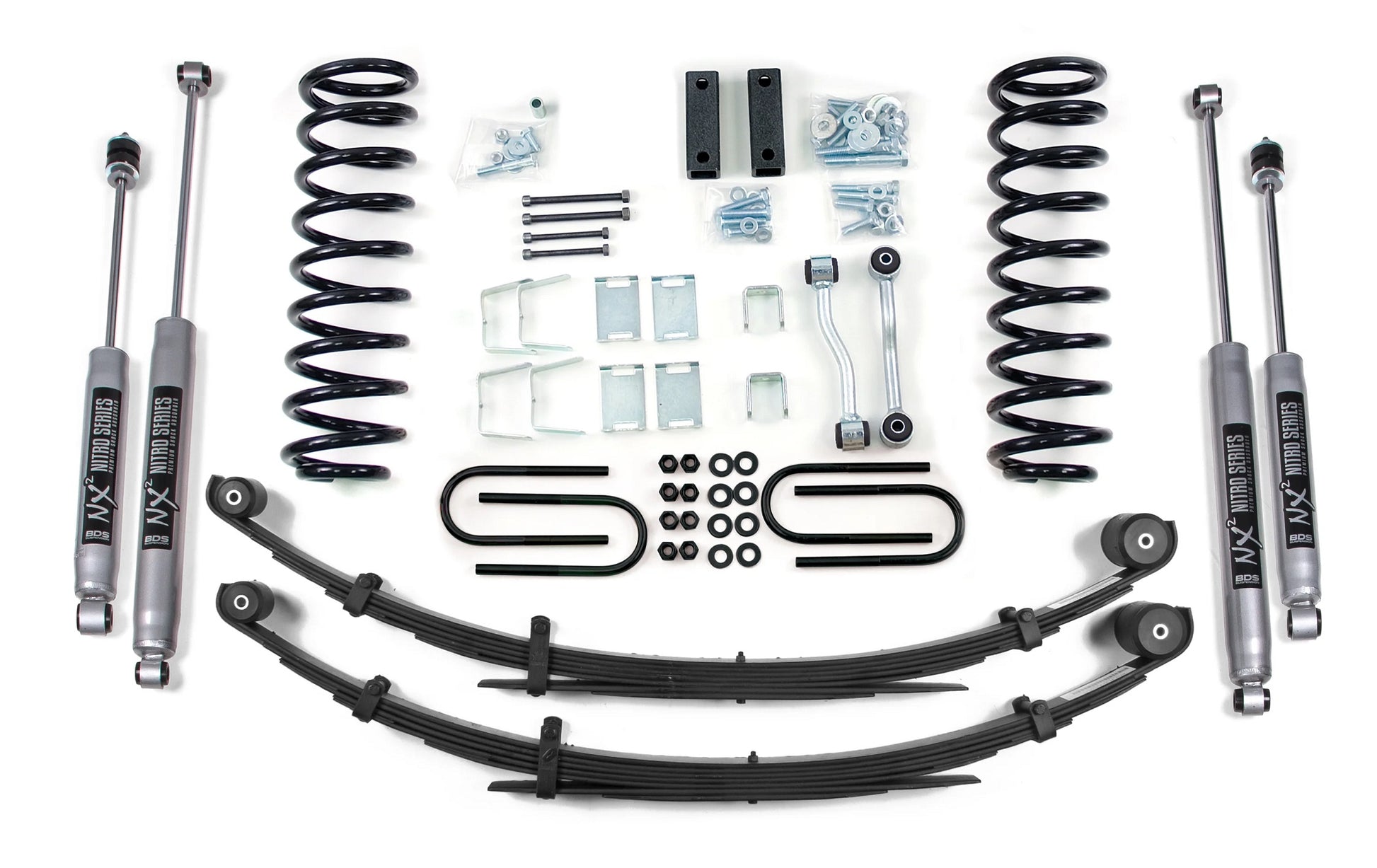

Brand New BDS Suspension 3" Lift Kit with Nitro Shocks & Leaf Springs (Part #BDS432H).

Improve the style and handling of your 1984-2001 Jeep Cherokee XJ with this 3-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability of the Cherokee XJ, this kit includes everything necessary to set your truck up right with clearance for up to 31" tires.

Up front the lift kit includes Glide-Ride coil springs, extended sway bar links, and a transfer case drop to maintain proper driveline angles. In the rear the kit utilizes a leaf springs to add height without creating a harsh ride to level out the Jeep. These kits are rounded out with shocks to offer improved damper performance.

Compatible with:

• Jeep:

  • 1984-2001 Cherokee XJ with Chrysler 8.25 Rear Axle

Notes:

• Verify the make/model of rear axle prior to ordering.
• The Jeep Cherokee was produced with two different rear axles (Chrysler 8.25 or Dana 35). You will need to measure your rear u-bolts to ensure that you get the correct new u-bolts. Basically, just measure the diameter of the axle or the I.D. of your rear u-bolts. Chrysler axles require 3" wide u-bolts and Dana 35 axles require 2-3/4" wide u-bolts. Some 1987-90 models came with a Dana 44.
• Transfer case lowering kit is not required for 2WD models.
• Recommended Tires & Wheels (Trimming May Be Required) 31 x 10.5 with 15 x 8 and 4 in. Backspace

Features:

• ProRide coil springs offer improved ride quality and more articulation

• Transfer case drop maintains proper driveline angles

• Easy, 100% Bolt-on installation

NX2 Nitro Series:

• Nitrogen-charged

• Twin-tube design

• 10-stage velocity-sensitive valving

• Dual-welded ends for increased strength

• 1-3/8-inch high-flow piston

• Self-lubricating seals

• Silver powder coat finish

Leaf Springs:

• Eliminates any need for a lift block.

• Reduces axle wrap and creates a more controlled and stable feel.

• Multi-leaf progressive design for a smooth ride.

• Maintains factory payload weight ratings.

Specs:

• Front Lift Method: Coil Spring

• Front Lift Height: 3"
• Rear Lift Method: Leaf Spring
• Rear Lift Height: 2.5"

You can view and download the instruction booklet here and here.
