BDS 1984-2001 JEEP CHEROKEE XJ 1.75" LIFT KIT,FOX 2.0 SHOCKS

Brand New BDS Suspension 1.75" Lift Kit with FOX 2.0 Performance Series Shocks, Compatible with 1984-2001 Jeep Cherokee XJ (Part #BDS426FS).

Designed to improve stance, performance, and capability. BDS Suspension has designed this 1-3/4 inch lift kit for your 1984-2001 Jeep Cherokee XJ. Specially designed for the Cherokee, this 1-3/4" lift kit is engineered for additional tire clearance and improved performance without overextending the suspension or driveline angles at full suspension droop.

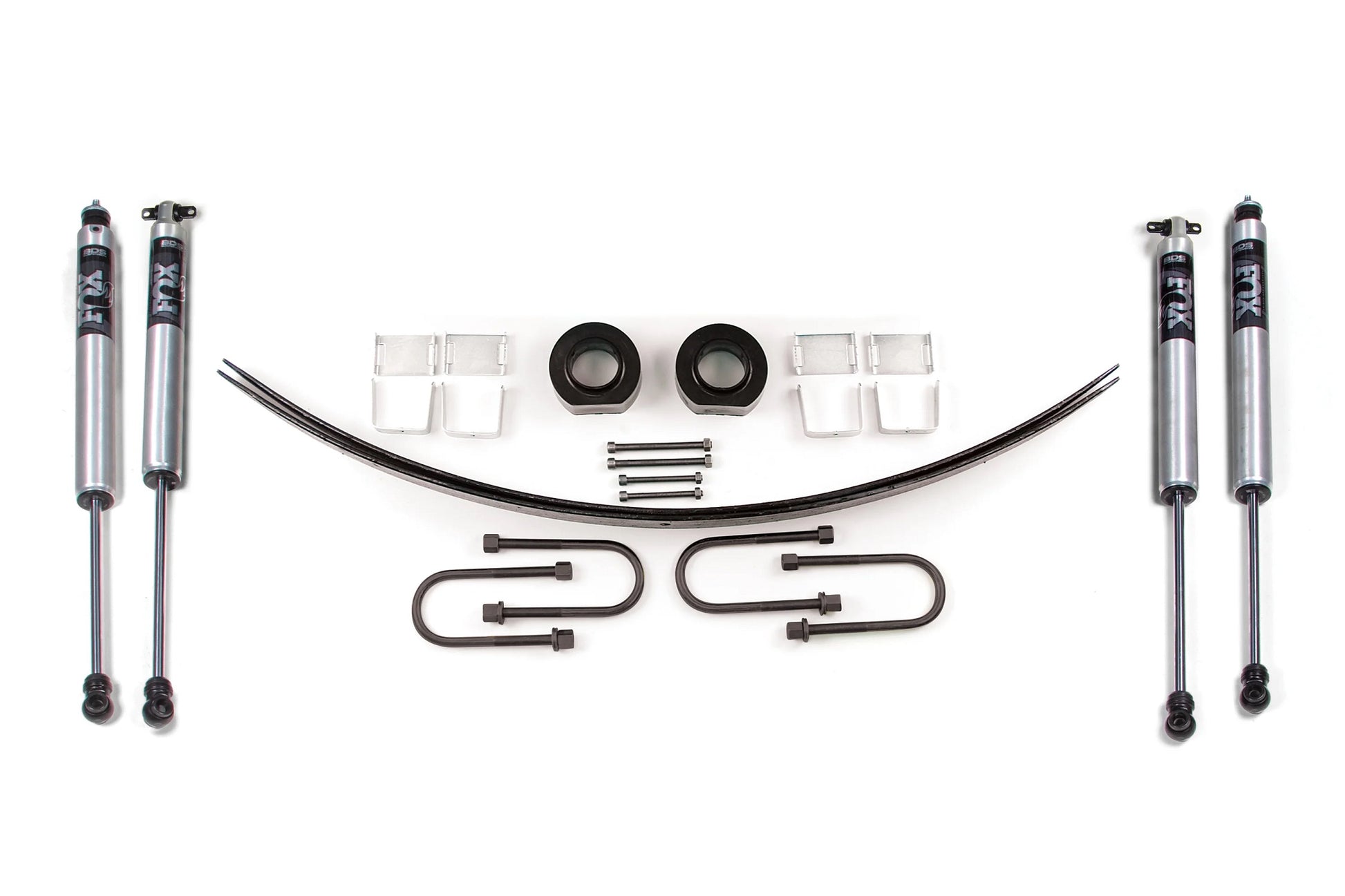

The lift kit includes two front 1-3/4" urethane coil spring spacers, long rear thin add-a-leaf springs, and NX2 Nitro or FOX Performance series shocks. Give your Cherokee XJ the extra height with this 1-3/4 inch lift kit from BDS Suspension.

NOTE:

• The Jeep Cherokee was produced with two different rear axles (Chrysler 8.25 or Dana 35). You will need to measure your rear U-bolts to ensure that you get the correct new U-bolts. Basically, just measure the diameter of the axle or the I.D. of your rear U-bolts. Chrysler axles require 3" wide U-bolts and Dana 35 axles require 2-3/4" wide U-bolts. Some 1987-90 models came with a Dana 44.
• Transfer case lowering kit is not required for 2WD models.
• Recommended Tires & Wheels (Trimming May Be Required) 30 x 9.5 with 15 x 7 and 4 in. Backspace

Compatible with:

• Jeep:

  • 1984-2001 Cherokee XJ

Features:

• Front urethane coil spacer maintains factory ride
• Easy, 100% Bolt-on installation
• FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body

• Internal floating piston (IFP) monotube design

• CNC machined 6061-T6 aluminum mounting ends

• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft

• Race-developed high-flow piston design

• Application-specific valving to maximize performance

• Long-lasting clear anodized finish

Specs:

• Front Lift Method: Coil Spring

• Rear Lift Method: Add-A-Leaf

• Shocks Included: Yes

• Front Lift Height: 1.75"

• Rear Lift Height: 2"

You can view and download the assembly/instruction booklet here.
