BDS 1997-2006 JEEP WRANGLER TJ,LJ 4.5" LIFT KIT,NITRO SHOCKS

Brand New BDS Suspension 4.5" Lift Kit with NX Nitro Series Shocks, Compatible with 1997-2006 Jeep Wrangler TJ & LJ (Part #BDS422H).

BDS steps up the performance and capability of the 1997-2006 Jeep Wrangler TJ with a 4.5-inch suspension lift kit. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 33" tires.

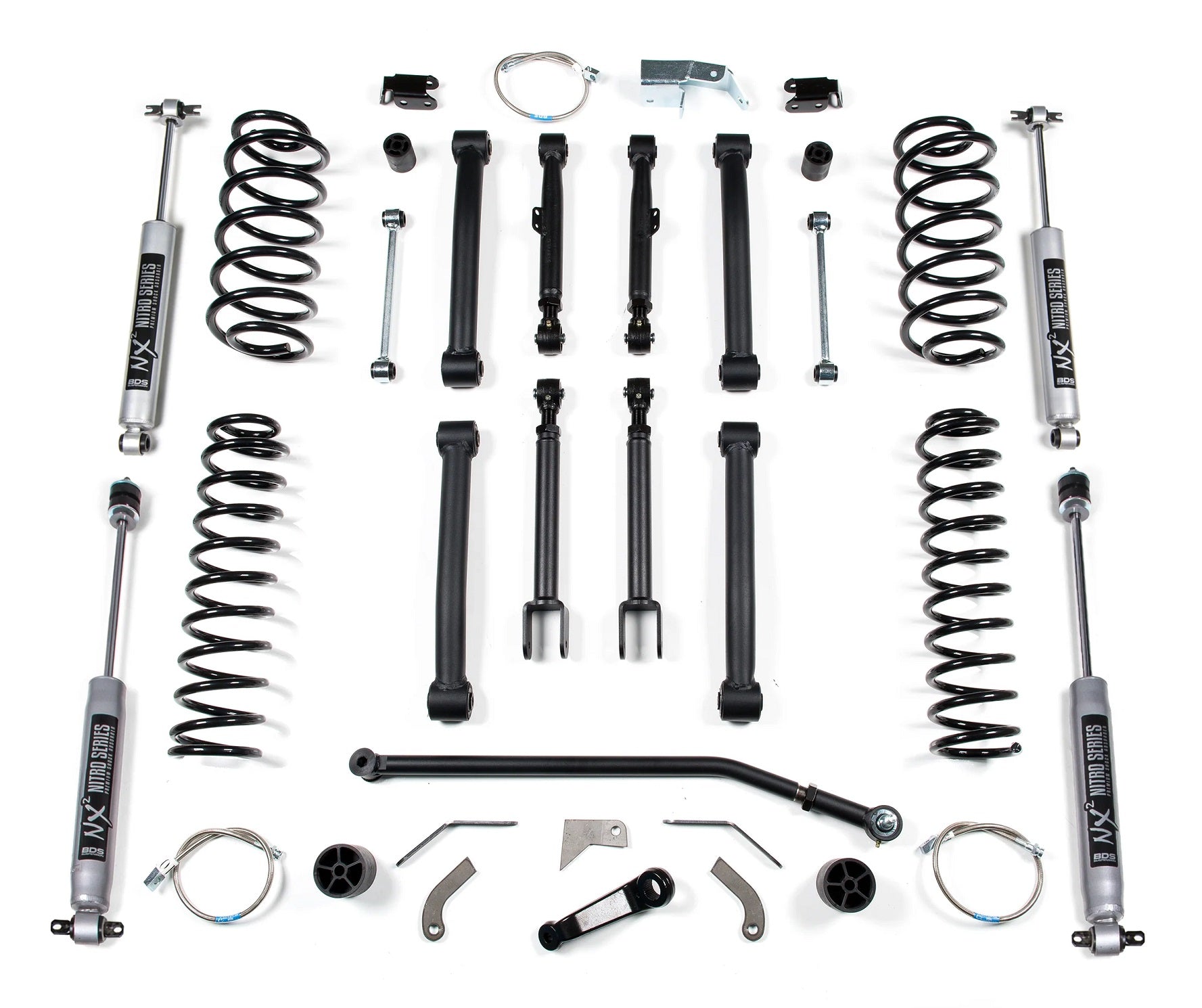

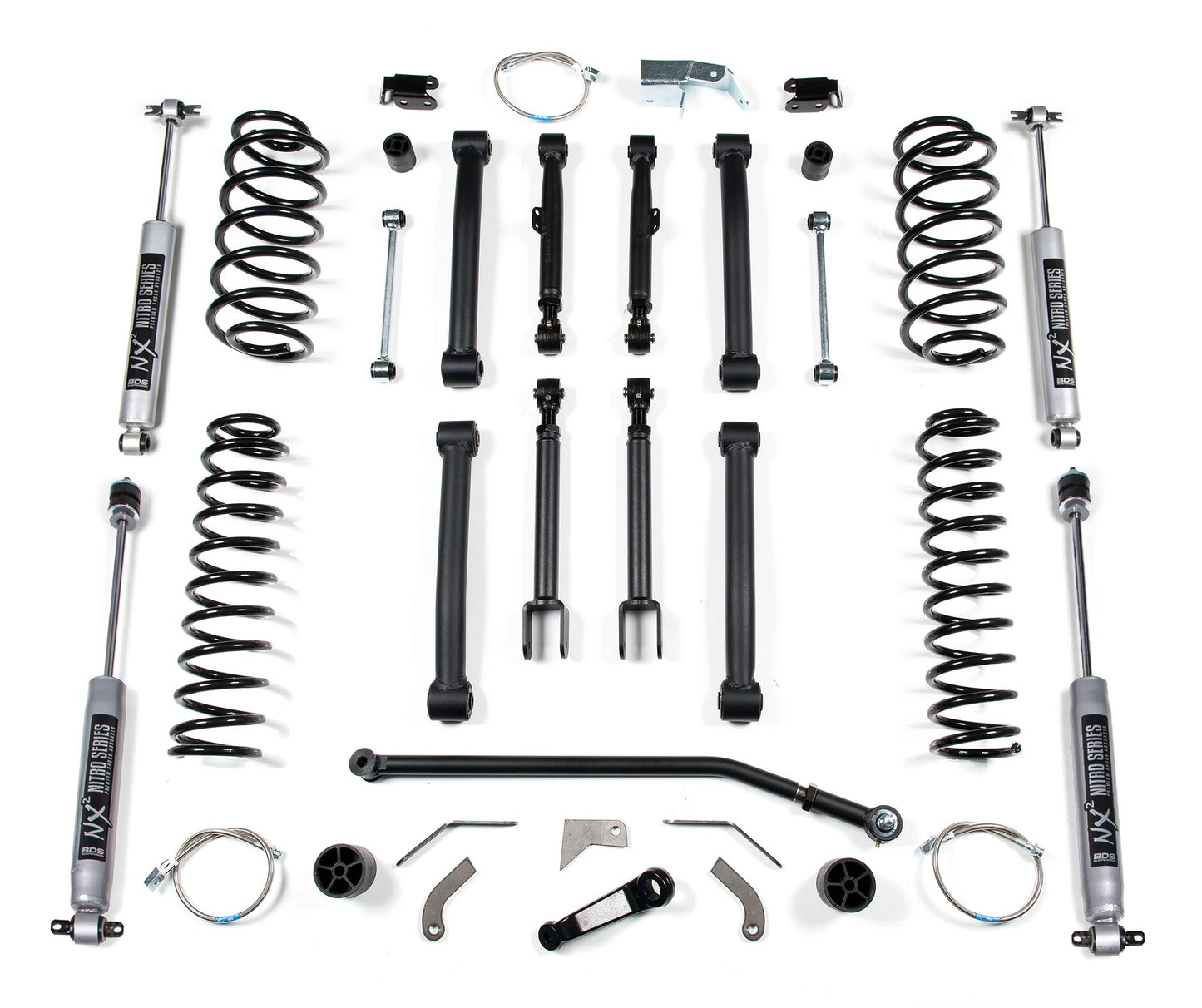

The lift kit includes front BDS Pro-Ride Coil Springs, a heavy duty adjustable front track bar that is utilized to re-center the front axle, bump stop extensions, stainless braided brake lines, sway bar quick disconnects to unlock the front suspension's potential to flex while maintaining quiet on road operation, and heavy duty front upper adjustable and fixed length lower control arms.

The rear kit utilizes Glide-Ride coil springs for maximum travel, stainless braided brake line, rear track bar relocation bracket, BDS ultimate sway bar disconnects for the most possible articulation, and heavy duty front upper adjustable and fixed length lower control arms. Finish of the kit with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.

Pro-Ride Coil Springs: A pair of full-length, Jeep-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Compatible with:

• Jeep:

  • 1997-2006 Jeep Wrangler TJ
  • 2004-2006 Jeep Wrangler LJ

Notes:

• A slip yoke eliminator and a CV style rear driveshaft are required for this kit.

• Some welding required.

• Rubicon models may require OEM skid plate modification.
• Recommended Tires & Wheels (Trimming May Be Required) 33 x 12.5 with 15 x 8 and 3.5 in. Backspace

Features:

• ProRide coil springs offer improved ride quality and more articulation

• Sway bar quicker disconnects and extended rear link for improved off-road flex

• New control arms to properly control the front and rear axle positions

• Rear track bar bracket repositions rear axle under vehicle

• Allows clearance for 33" tires

NX2 Nitro Series:

• Nitrogen-charged

• Twin-tube design

• 10-stage velocity-sensitive valving

• Dual-welded ends for increased strength

• 1-3/8-inch high-flow piston

• Self-lubricating seals

• Silver powder coat finish

Specs:

• Front Lift Method: Coil Springs

• Rear Lift Method: Coil Springs

• Shocks Included: Yes

• Front Lift Height: 4.5"

• Rear Lift Height: 4.5"

You can view and download the assembly/instruction booklet here, here, and here.
