BDS 1997-2002 JEEP WRANGLER TJ 3" LIFT KIT,FOX 2.0 SHOCKS

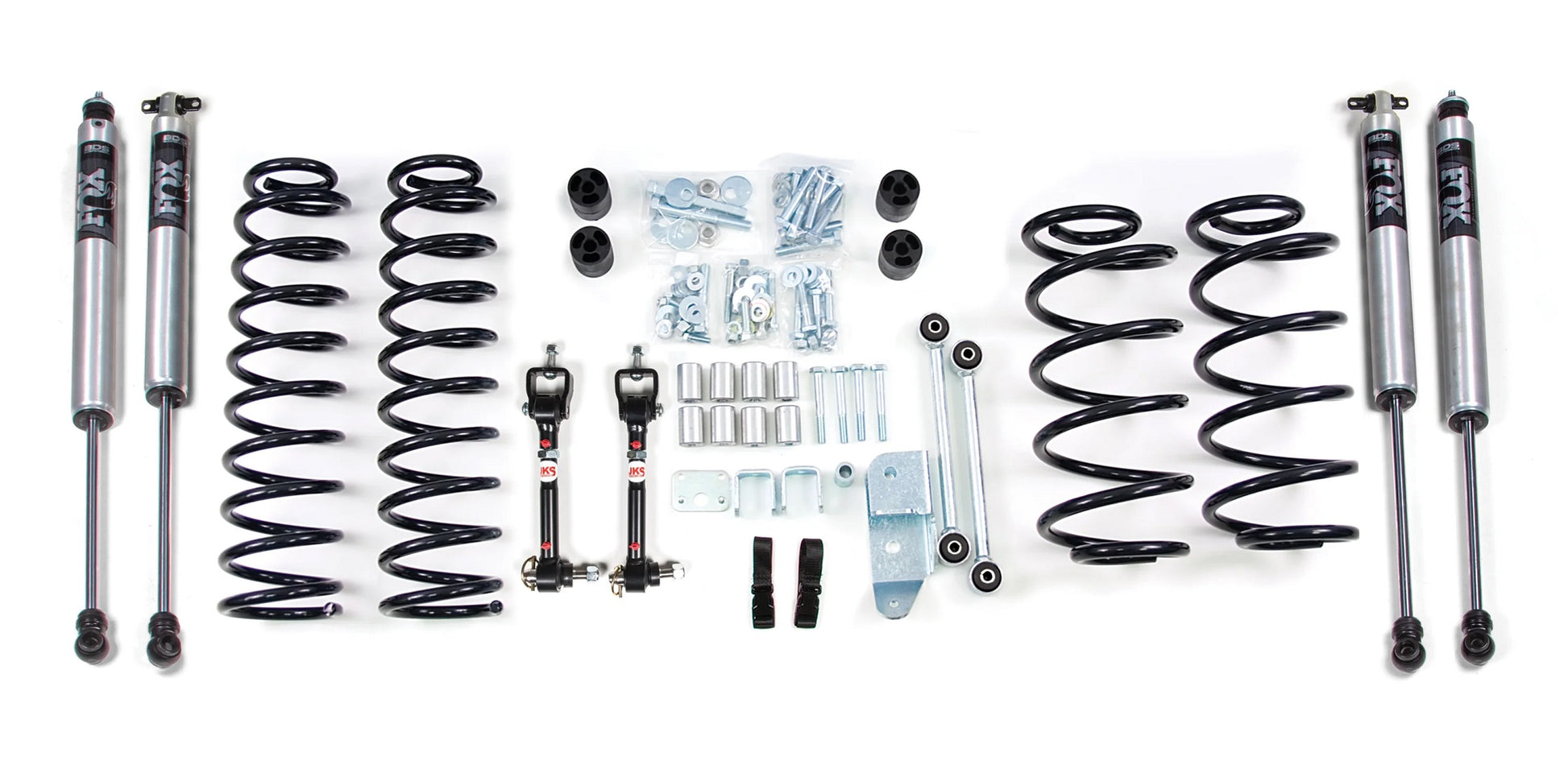

Brand New BDS Suspension 3" Lift Kit with FOX 2.0 Performance Series Shocks. Compatible with 1997-2002 Jeep Wrangler TJ (Part #BDS418FS).

Improve the style and handling of your 1997-2002 Jeep Wrangler TJ with this 3-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires.

Up front the lift kit includes Glide-Ride coil springs, JKS sway bar link disconnects to improve off-road articulation, bump stop extensions, and a transfer case drop to maintain proper driveline angles. In the rear the kit utilizes matching Glide-Ride coil springs to add height without creating a harsh ride to level out the Jeep and rear track bar bracket. These kits are rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.

Pro-Ride Coil Springs: A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Compatible with:

• Jeep:

  • 1997-2002 Wrangler TJ

Notes:

• Models with manual transmissions may need shifter opening in the floorboard enlarged.

• Stabilizer and front lower control arms are highly recommended.
• Recommended Tires & Wheels (Trimming May Be Required) 33 x 12.5 with 15 x 8 and 3.5 in. Backspace

Features:

• ProRide coil springs offer improved ride quality and more articulation
• Sway bar quicker disconnects and extended rear link for improved offroad flex
• Rear track bar bracket repositions rear axle under vehicle
• Choice of NX2 gas or FOX 2.0 IFP performance series shocks for improved damping
• Allows clearance for 33" tires


FOX 2.0 Performance Series:

• 2-inch Impact extruded aluminum body

• Internal floating piston (IFP) monotube design

• CNC machined 6061-T6 aluminum mounting ends

• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft

• Race-developed high-flow piston design

• Application-specific valving to maximize performance

• Long-lasting clear anodized finish

Specs:

• Front Lift Method: Coil Spring

• Rear Lift Method: Coil Spring

• Shocks Included: Yes

• Front Lift Height: 3"

• Rear Lift Height: 3"

You can view and download the assembly/instruction booklet here.
