BDS 82-86 CJ5/CJ7 2.5/2.5 SPRING KIT

Brand New BDS Suspension 2.5" Lift Kit with FOX 2.0 Performance Series Shocks, Rear Block Kit, Compatible with 1982-1986 Jeep CJ5, CJ7 (Part #BDS405FS).

Designed to improve stance, performance, and capability. BDS Suspension has designed this 2.5-inch lift kit for your 1982-1986 Jeep CJ5 and CJ7. This kit includes everything necessary to set your truck up right with clearance for up to 31" tires.

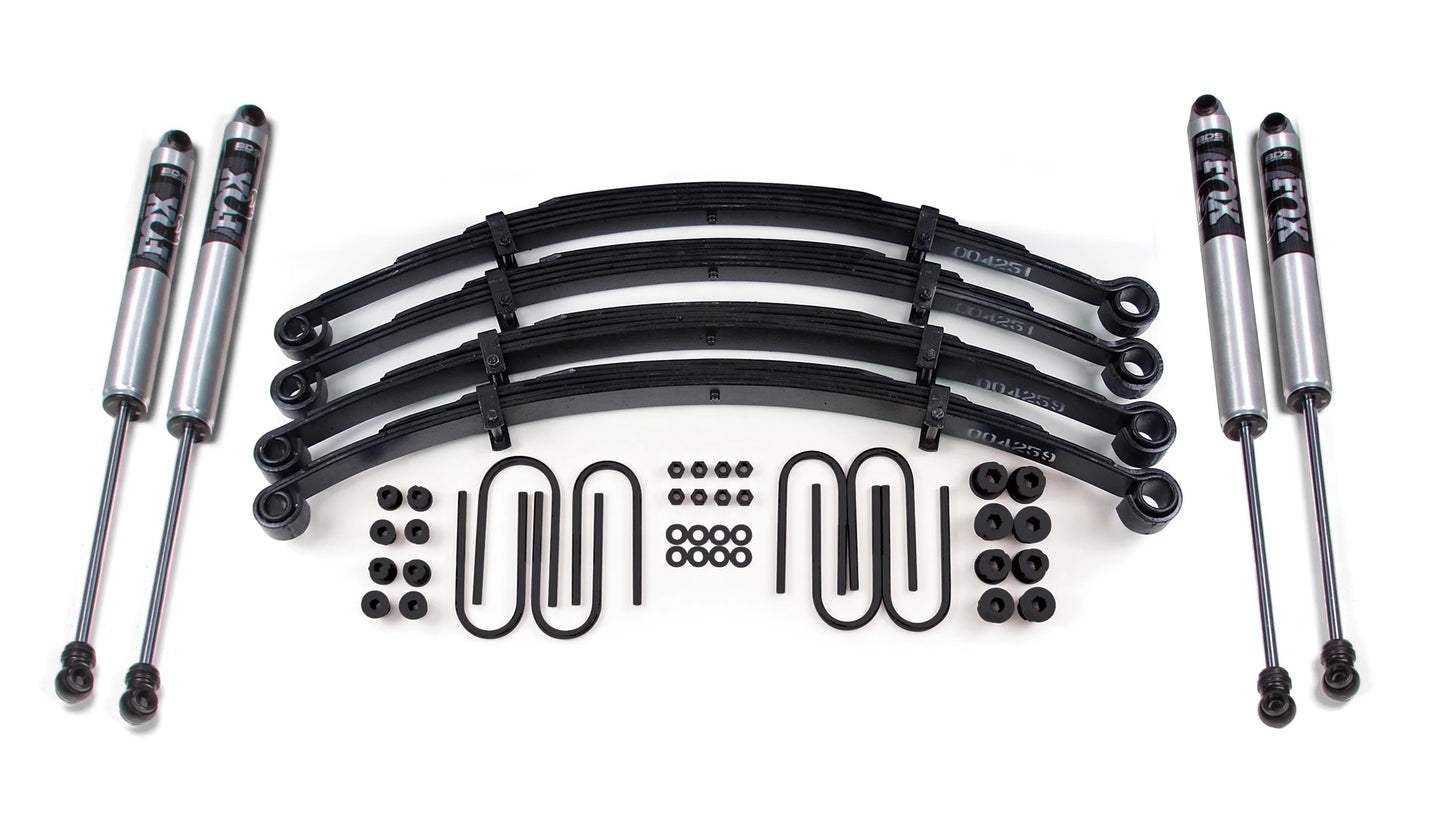

This 2.5-inch lift kit includes front and rear Glide-Ride leaf springs with new U-bolts and round out these kits with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. These spring feature tapered leafs, anti-friction pads, bolt style leaf alignment clamps and a full military wrap to protect your spring eyes from the rocks. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

NOTE:

• Vehicles equipped with the optional Dana 44 axle will require 04005 U-bolts (Qty. 4)

• Shackle bushing kit 074002 is highly recommended.
• Recommended Tires & Wheels 32 x 11.5 with 15 x 8 and 3.5 in. Backspace

Compatible with:

• Jeep:

  • 1982-1983 CJ5

  • 1982-1986 CJ7

  • 1982-1986 Scrambler

Features:

• Easy, 100% Bolt-on installation

• Glideride leaf springs to provide full lift height and increased capacity

• FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body

• Internal floating piston (IFP) monotube design

• CNC machined 6061-T6 aluminum mounting ends

• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft

• Race-developed high-flow piston design

• Application-specific valving to maximize performance

• Long-lasting clear anodized finish

Specs:

• Front Lift Method: Leaf Spring

• Rear Lift Method: Leaf Spring

• Shocks Included: Yes

• Front Lift Height: 2.5"

• Rear Lift Height: 2.5"

You can view and download the assembly/instruction booklet here.
