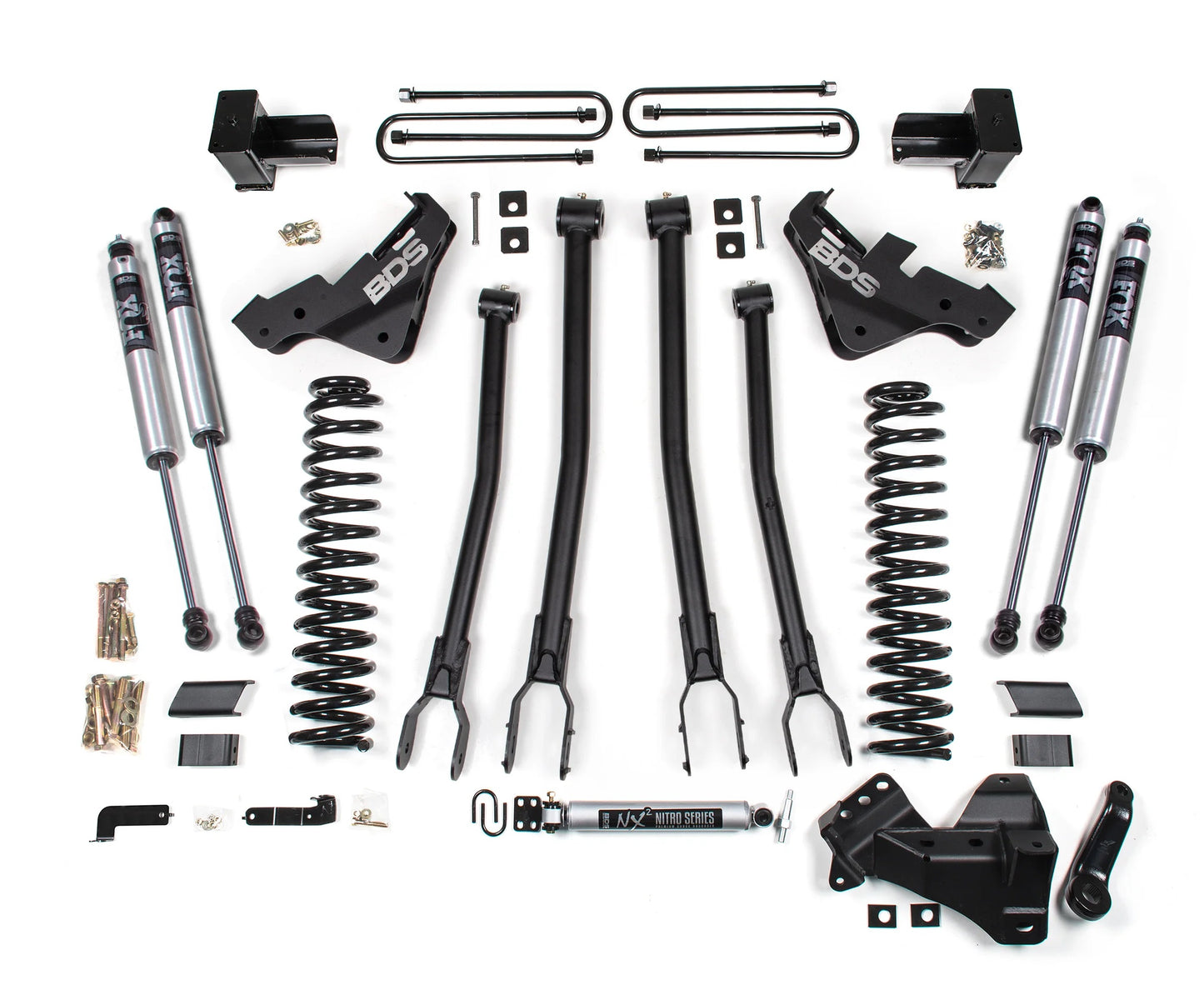

BDS 2023-2025 FORD F-250,F-350 4WD DIESEL DRW 5" LIFT KIT,4-LINK,FOX 2.0

Brand New BDS Suspension 5" Lift Kit with Front FOX 2.0 Shocks, 4-Link, Rear FOX 2.0 Shocks & Block Kit (Part #BDS2250FS).

Take your dual rear wheel "DRW" Ford F250/F350 Super Duty diesel truck to the next level with this 5-inch 4-Link lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your dually Ford truck up right with clearance for up to 37" tires. Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arm conversion, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks. At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, and brake line brackets.

Fits:

• Ford:

  • 2023-2025 F-250 Super Duty 4WD Diesel with DRW
  • 2023-2025 F-350 Super Duty 4WD Diesel with DRW

Notes:

• Ford recommends the pitman arm nut is replaced prior to pitman arm installation.

• If installed on a truck with a top-mounted overload spring, with an overload spacer block taller than 1-1/8" UBT4027 (Qty: 4) is required.

• Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.

• If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.

• Due to the taller factory ride height, Tremor models will not net the full advertised lift height. The final ride height will be the same as standard models.

• Larger tires on the stock wheel are not recommended due to the brake line clearance required. Use recommended specs listed in the wheel and tire fitment section.

• Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.

• Installation requires a torque wrench capable of 405 ft-lbs.

• Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, BDS recommends having this performed prior to installing the lift.
• Recommended Tires & Wheels (Trimming May Be Required): 37 x 12.5 with 17 x 10 and 5 in. Backspace or 37 x 12.5 with 20 x 10 and 5 in. Backspace

Features:

• Complete bolt in installation.

• Pro-Ride dual rate springs provide superior ride quality vs OEM springs.

• Heavy Duty 4-Link control arms offer improved handling, stability and strength.

• 4-Link suspension offers superior caster control through suspension travel.

• Improved drivability from corrected geometry and steering angles.

• Fabricated rear blocks provide a level stance from front to rear.

FOX 2.0 Performance Series:

• 2-inch Impact extruded aluminum body

• Internal floating piston (IFP) monotube design

• CNC machined 6061-T6 aluminum mounting ends

• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft

• Race-developed high-flow piston design

• Application-specific valving to maximize performance

• Long-lasting clear anodized finish

Specs:

• Front Lift Method: Coil Springs
• Front Lift Height: 5"
• Rear Lift Method: Blocks
• Rear Lift Height: 2"

You can view and download the assembly/instruction booklet here.
