BDS 2023-2025 FORD F-250,F-350 4WD DIESEL 5" RADIUS ARM LIFT,LEAFS,FOX 2.5 ELITE

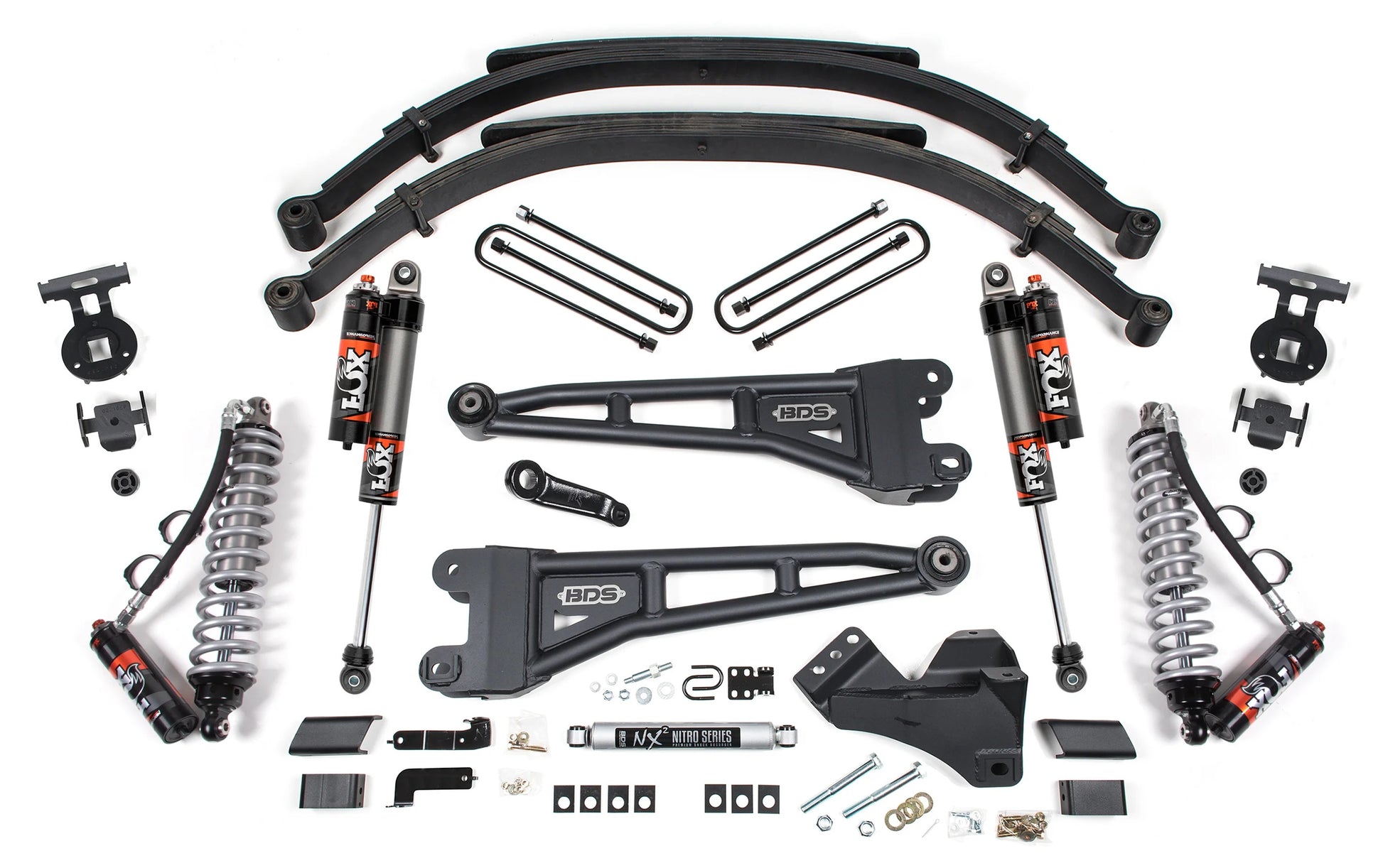

Brand New BDS Suspension 5" Radius Arm Lift Kit with Front FOX 2.5 Coilovers, Rear FOX 2.5 Shocks & Leaf Springs (Part #BDS2211FPE).

Improve the ride on your 2023-25 Ford Super Duty diesel truck with this 5-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, and brake line brackets.

Fits:

• Ford:

  • 2023-2025 F-250 Super Duty 4WD Diesel
  • 2023-2025 F-350 Super Duty 4WD Diesel

Notes:

• Vehicles with radius arm mounted ride height sensors will require BDS123303.

• Vehicles with leaf spring ride height sensors must select the rear block option.

• Fits SRW models only.

• Ford recommends the replacement of the pitman arm nut after each time it has been removed.

• Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.

• If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.

• Due to the taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.

• Larger tires on stock wheel are not recommended due to interference with brake line, radius arm and sway bar. Use recommended specs listed in wheel and tire fitment section.

• Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.

• Installation requires a torque wrench capable of 406 ft-lbs.

• Trucks without top mounted overload springs will require (4) UBT4028.
• Recalibration of your vehicles Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary to ensure proper functionality of the vehicle features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control systems, and other functions.
• Fits SRW models only.
• Recommended Tires & Wheels (Trimming May Be Required): 37 x 12.5 with 17 x 9 and 5 in. Backspace, 37 x 12.5 with 18 x 9 and 5 in. Backspace, or 37 x 12.5 with 20 x 9 and 5 in. Backspace

Features:

• FOX 2.5 Coil-Over mounts in factory coil bucket location

• Adds additional secondary FOX 2.0 shock for max performance

• Eibach coil springs ride smooth through the roughest terrain

• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance

• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling

• Fabricated steel blocks provide level stance from front to rear

FOX 2.5 Performance Elite Series:

• Increased off-road capabilities

• Easily adjust your shock for terrain, load and speed

• 2.5-inch Impact extruded aluminum body

• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft

• External reservoir design separates shock oil from the high-pressure nitrogen

• DSC - Dual Speed Compression Adjuster comes standard

• Fully serviceable for a lifetime of use

Specs:

• Front Lift Method: Coil Spring
• Front Lift Height: 5"
• Rear Lift Method: Leaf Spring
• Rear Lift Height: 4"

You can view and download the assembly/instruction booklet here, here, and here.
