BDS 2023 F-250,F-350 SUPER DUTY 5" RADIUS ARM LIFT KIT,NX2 SHOCKS,DIESEL

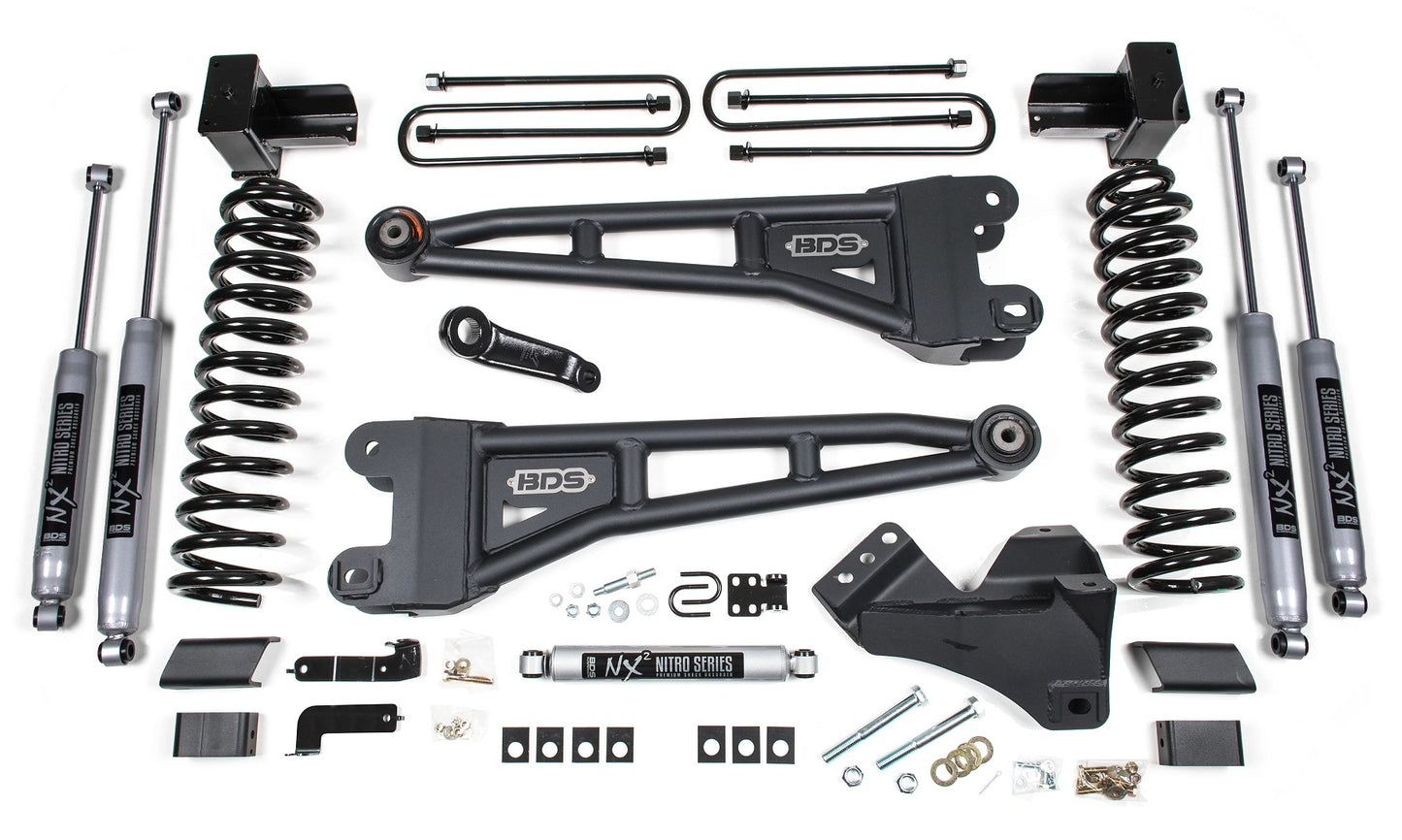

Brand New BDS Suspension 5" Radius Arm Lift Kit with Nitro Shocks and 5 Inch Block Kit. Fits 2023-2024 Ford F250/F350 Super Duty 4WD Diesel with 3 Leaf Main (Part #BDS2203H).

Improve the ride on your 23-24 Ford Super Duty diesel truck with this 5-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro shocks.

HD Radius Arms: In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs: A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction: To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while re-centering the front axle.

Fits:

• Ford:

  • 2023-2024 F-250 Super Duty 4WD Diesel with 3-Leaf
  • 2023-2024 F-350 Super Duty 4WD Diesel with 3-Leaf

NOTE:

• Vehicles with radius arm mounted ride height sensors will require BDS123303.

• Ford recommends the replacement of the pitman arm nut after each time it has been removed.

• Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.

• If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.

• Due to the taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.

• Larger tires on stock wheel are not recommended due to interference with brake line, radius arm and sway bar. Use recommended specs listed in wheel and tire fitment section.

• Installation requires a torque wrench capable of 406 ft-lbs.
  Vehicles with leaf spring ride height sensors must select the rear block option.
• Recommended Tires & Wheels (Trimming May Be Required) 37 x 12.5 with 17 x 9 and 5 in. Backspace, 37 x 12.5 with 18 x 9 and 5 in. Backspace, or 37 x 12.5 with 20 x 9 and 5 in. Backspace

Features:

• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain

• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance

• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling

• NX2 Nitro Series

• Nitrogen-charged

• Twin-tube design

• 10-stage velocity-sensitive valving

• Dual-welded ends for increased strength

• 1-3/8-inch high-flow piston

• Self-lubricating seals

• Silver powder coat finish
• 5 Inch Block Kit (Rear)

• Made of steel for high strength.

• Designed to provide level stance from front to rear.


Specs:

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 5"
• Rear Lift Height: 3"

You can view and download the assembly/instruction booklet here and here.
