BDS 2023-2025 FORD F-250,F-350 4WD 3" LIFT KIT WITH RADIUS ARMS & FOX 2.5 ELITE

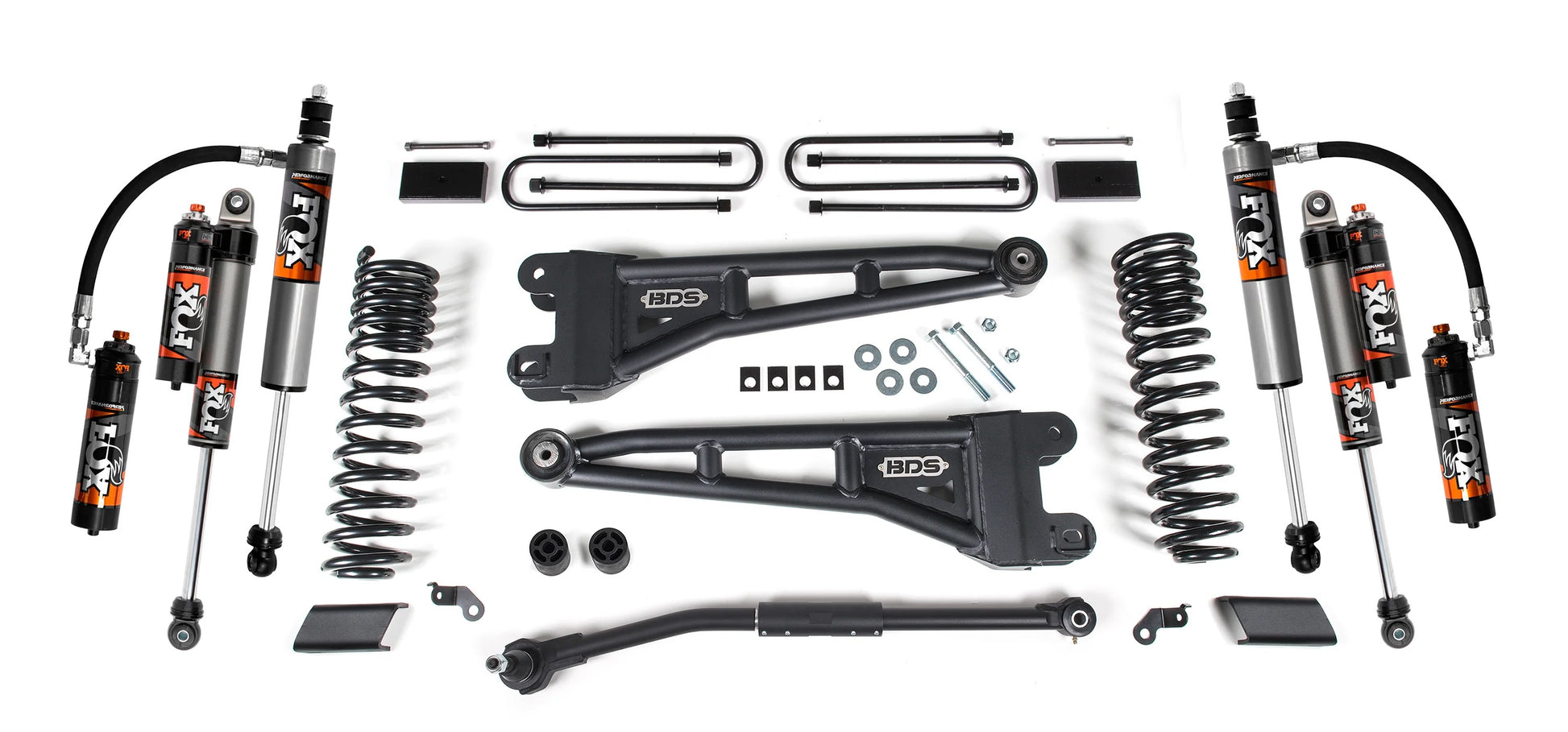

Brand New BDS Suspension 3" Radius Arm Lift Kit with Front & Rear FOX 2.5 Shocks (Part #BDS2200FPE).

Level out and take your 23-25 Ford Super Duty diesel powered truck with this 3-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires. Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy duty replacement radius arms, high strength 1-3/8 inch solid steel track bar for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks. In the rear this kit utilizes a high-strength fabricated lift block, and longer u-bolts.

Fits:

• Ford:

  • 2023-2025 F-250 Super Duty 4WD
  • 2023-2025 F-350 Super Duty 4WD

Notes:

• Vehicles with radius arm mounted ride height sensors will require BDS123303.

• Designed for use on diesel models, but can be installed on gas trucks, will achieve additional 1/2 inch front ride height.

• Installation requires a torque wrench capable of 406 ft-lbs.

• Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.

• Larger tires on stock wheel are not recommended due to interference with brake line, radius arm and sway bar. Use recommended specs listed in wheel and tire fitment section.

• Trucks without top mounted overload spring will require (x4) UBT4031 available to purchase separately.

• Fits SRW models only.
• Recalibration of your vehicles Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary to ensure proper functionality of the vehicle features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control systems, and other functions.
• Recommended Tires & Wheels (Trimming May Be Required): 35 x 12.5 with 17 x 9 and 5 in. Backspace, 35 x 12.5 with 18 x 9 and 5 in. Backspace, or 35 x 12.5 with 20 x 9 and 5 in. Backspace

Features:

• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain

• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance

• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling

• Fabricated steel blocks provide level stance from front to rear

FOX 2.5 Performance Elite Series:

• Increased off-road capabilities

• Easily adjust your shock for terrain, load and speed

• 2.5-inch Impact extruded aluminum body

• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft

• External reservoir design separates shock oil from the high-pressure nitrogen

• DSC - Dual Speed Compression Adjuster comes standard

• Fully serviceable for a lifetime of use

Specs:

• Front Lift Method: Coil Spring
• Front Lift Height: 3"
• Rear Lift Method: Block
• Rear Lift Height: 1"

You can view and download the assembly/instruction booklet here and here.
