BDS 2017-2019 FORD F250,F350 4WD,DIESEL,4" 4-LINK LIFT KIT,5" BLOCK,FOX 2.5

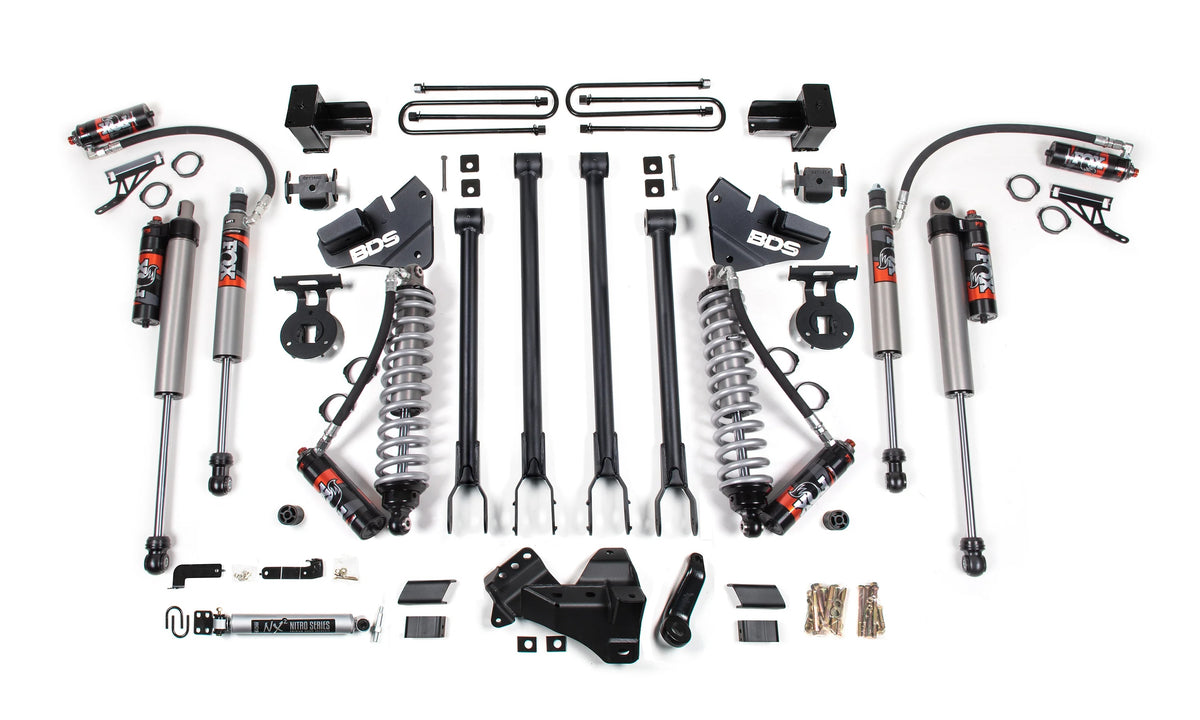

Brand New BDS Suspension 4" Lift Kit with 4-Link, Fox 2.5 Performance Elite Coilovers, & Block Kit (Part #BDS1965FPE).

Maximize the capability of your 2017-2019 Ford Super Duty diesel powered truck with this 4-inch lift kit with 4-Link and FOX 2.5 Performance Elite Coil-over conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes diesel-specific FOX 2.5 coilover shocks, 4-link control arms with conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of FOX Performance shocks.

Fits:

• Ford:

  • 2017-2019 F-250 Super Duty 4WD Diesel

  • 2017-2019 F-350 Super Duty 4WD Diesel

Notes:

• Rear lift options are Blocks (#BDS1965FPE) or Leaf Springs (#BDS1969FPE)
• If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)

• 37 x 12.50 tires may require minor trimming.

• Block kit option will fit both 2 and 3 leaf main trucks

• If your truck is equipped with a factory rear sway bar add: 123005

• Fits SRW models only.
• Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 17 x 9 and 5 in. Backspace, 37 x 12.5 with 18 x 9 and 5 in. Backspace, or 37 x 12.5 with 20 x 9 and 5 in. Backspace

Features:

• FOX 2.5 Coil-Over mounts in factory coil bucket location

• Adds additional secondary FOX shock for max performance

• Eibach coil springs ride smooth through the roughest terrain

• Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel

• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling

• Fabricated steel blocks provide level stance from front to rear

• FOX shocks are fully serviceable and resistant to corrosion and harsh environments.

FOX 2.5 Performance Elite Series:

• Increased off-road capabilities

• Easily adjust your shock for terrain, load and speed

• 2.5-inch Impact extruded aluminum body

• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft

• External reservoir design separates shock oil from the high-pressure nitrogen

• DSC - Dual Speed Compression Adjuster comes standard

• Fully serviceable for a lifetime of use

Specs:

• Front Lift Method: Coilover

• Front Lift Height: 4"

• Rear Lift Method: Block

• Rear Lift Height: 2"

You can view and download the instruction booklet here and here.
