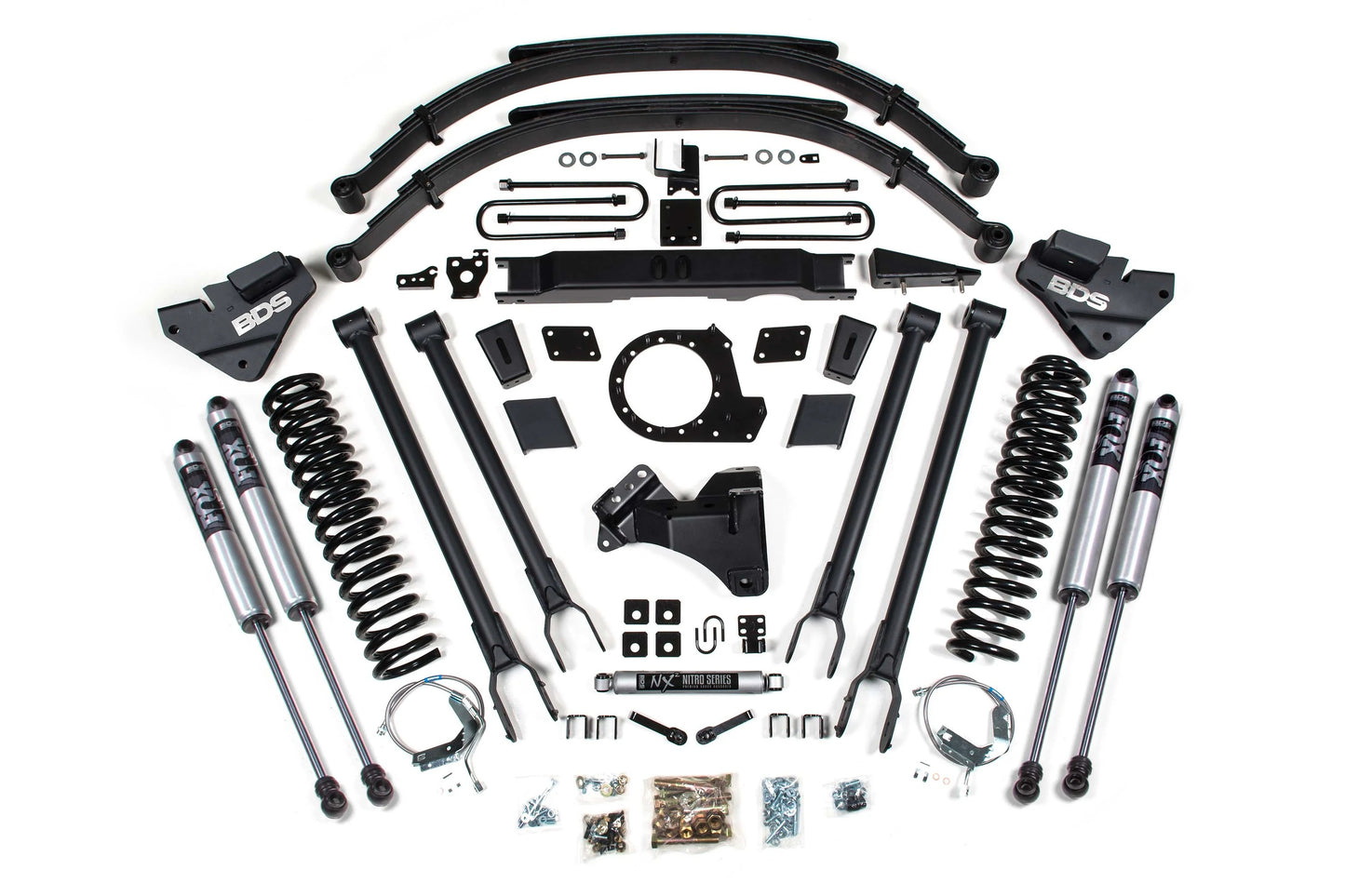

BDS 2020-2022 FORD SUPERDUTY 4WD,GAS,9" 4-LINK LIFT KIT,LEAFS,FOX 2.0 SHOCKS

Brand New BDS Suspension 9" Lift Kit with Fox 2.0 Performance Shocks & 4-Link (Part #BDS1960FS).

Take your Ford F250 and F350 Super Duty Gas truck to the next level with this 9-inch (gas), 8-inch (diesel) 4-Link lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 40" tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, 4-Link control arm conversion, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, bump stop extensions, stainless steel braided brake lines, NX2 steering stabilizer, and custom-tuned nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes full replacement Glideride leaf springs to provide full lift height and increased capacity with a built in overload spring, u-bolts, brake line brackets and a matching set of shocks.

Compatible with:

• Ford:

  • 2020-2022 F-250 Super Duty 4WD Gas (8" Lift Diesel)
  • 2020-2022 F-350 Super Duty 4WD Gas (8" Lift Diesel)

Notes:

• If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)

• 40 x 13.50 tires WILL require trimming.

• Transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.

• If your truck is equipped with a factory rear sway bar add: 123009

• Indexing ring has not been designed to work on manual shift transfer case models.
• Modification to the shift cable mount will be required.

• Gas models will require exhaust modification due to driveshaft interference.

• Fits SRW models only.
• Recommended Tires & Wheels (Trimming may be required): 40 x 13.5 with 17 x 10 and 5 in. Backspace

Features:

• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain

• Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel

• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling

• Fabricated steel blocks provide level stance from front to rear

FOX 2.0 Performance Series:

• 2-inch Impact extruded aluminum body

• Internal floating piston (IFP) monotube design

• CNC machined 6061-T6 aluminum mounting ends

• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft

• Race-developed high-flow piston design

• Application-specific valving to maximize performance

• Long-lasting clear anodized finish


Specs:

• Front Lift Method: Coil Spring

• Front Lift Height: 9"

• Rear Lift Method: Leaf Spring

• Rear Lift Height: 8"

You can view and download the complete assembly instruction booklets for this suspension kit here.
