BDS 2008-2010 FORD F250,F350 4WD,DIESEL,6" RADIUS LIFT,OVERLOAD,BLOCK,NITRO

BDS 2008-2010 FORD F250,F350 4WD,DIESEL,6" RADIUS LIFT,OVERLOAD,BLOCK,NITRO

STU BDS1954H

$1,672.80
$1,672.80
View full details

Brand New BDS Suspension 6" Radius Arm Lift Kit with Nitro Shocks & Block Kit (Part #BDS1954H).

Best way to fit 37 inch tires on your 2008-2010 Ford Super Duty F250 and F350 diesel truck is to install this 6-inch radius arm lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

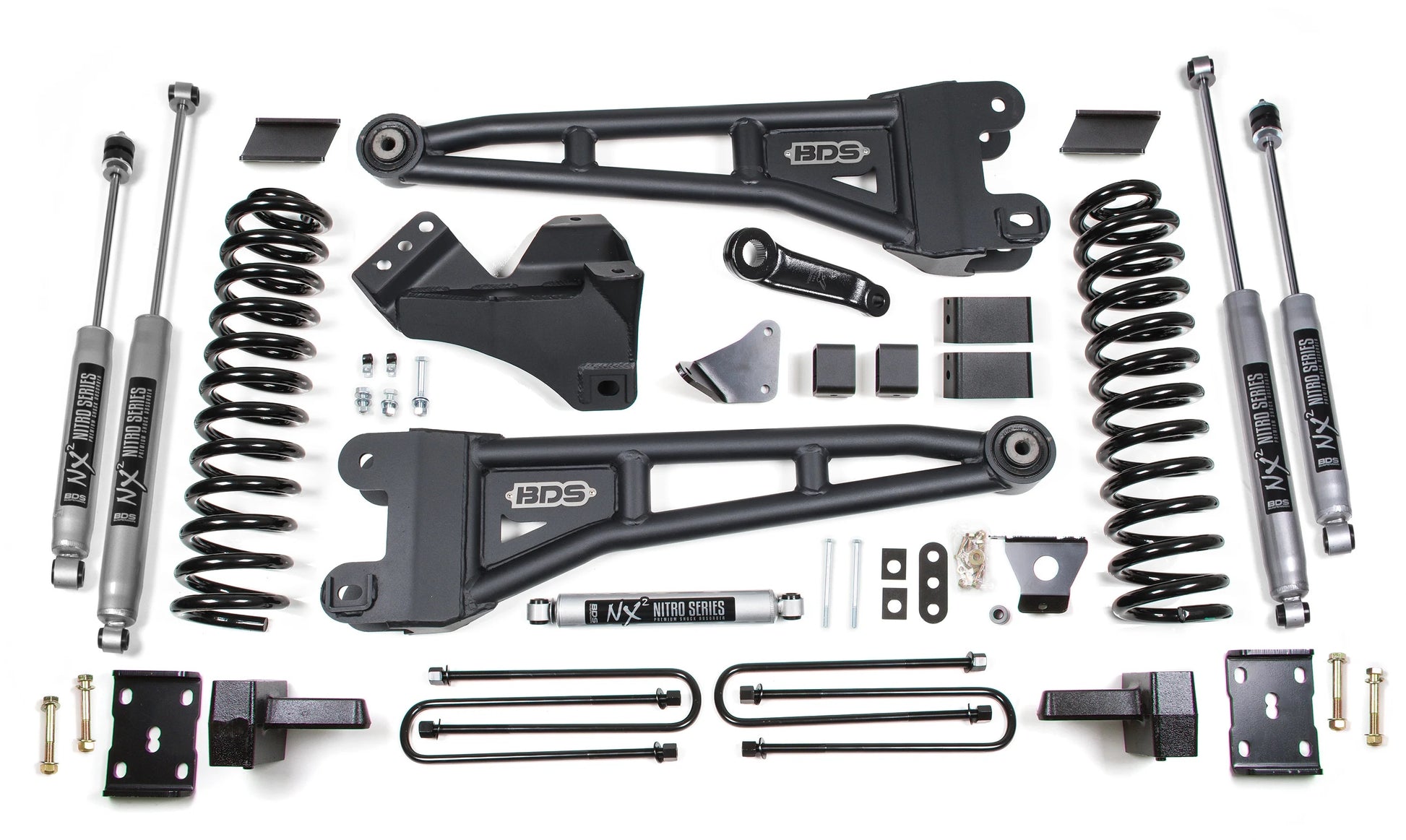

Up front the lift kit includes diesel-specific 6-inch lift Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks. In the rear the base kit utilizes a high strength lift blocks, longer u-bolts, brake line brackets and a matching set of shocks.

Fits:

  • Ford:
    • 2008-2010 F-250 Super Duty 4WD Diesel with Factory Overload
    • 2008-2010 F-350 Super Duty 4WD Diesel with Factory Overload

Notes:

  • For block kit without factory overload, order lift kit #BDS1953.
  • For block kit with factory overload, order lift kit #BDS1954.
  • For leaf springs, order lift kit #BDS1955.
  • Removal of the factory block is required.
    Installation of the rear block kit will result in a "pre-runner" look with the rear of the vehicle 2" lower than the front. To get a level stance you must upgrade to the rear leaf spring option.
  • These trucks were manufactured with and without top mounted overload springs on the rear leaf springs. A top mounted overload is an extra leaf separate from the pack that set above the main leaf. You will need to identify which you have before ordering.
  • If your vehicle is equipped with a carrier bearing, you will need to order 123402 in the options section.
  • Front exhaust modification may be required to clear the front driveshaft on gas models.
  • U-bolts will not fit dually models.
  • Dropped pitman arm will not fit 10 lug wide track F350 models.
  • Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 20 x 9 and 4.5 in. Backspace

Features:

  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling

NX2 Nitro Series:

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

Specs:

  • Front Lift Method: Coil Spring
  • Front Lift Height: 6"
  • Rear Lift Method: Block
  • Rear Lift Height: 3"

You can view and download the assembly instruction booklet here, here, and here.
