BDS 2008-2010 FORD F250,F350 4WD,DIESEL,6" RADIUS LIFT,OVERLOAD,BLOCK,FOX 2.5

BDS 2008-2010 FORD F250,F350 4WD,DIESEL,6" RADIUS LIFT,OVERLOAD,BLOCK,FOX 2.5

STU BDS1954FPE

$4,573.75
$4,573.75
View full details

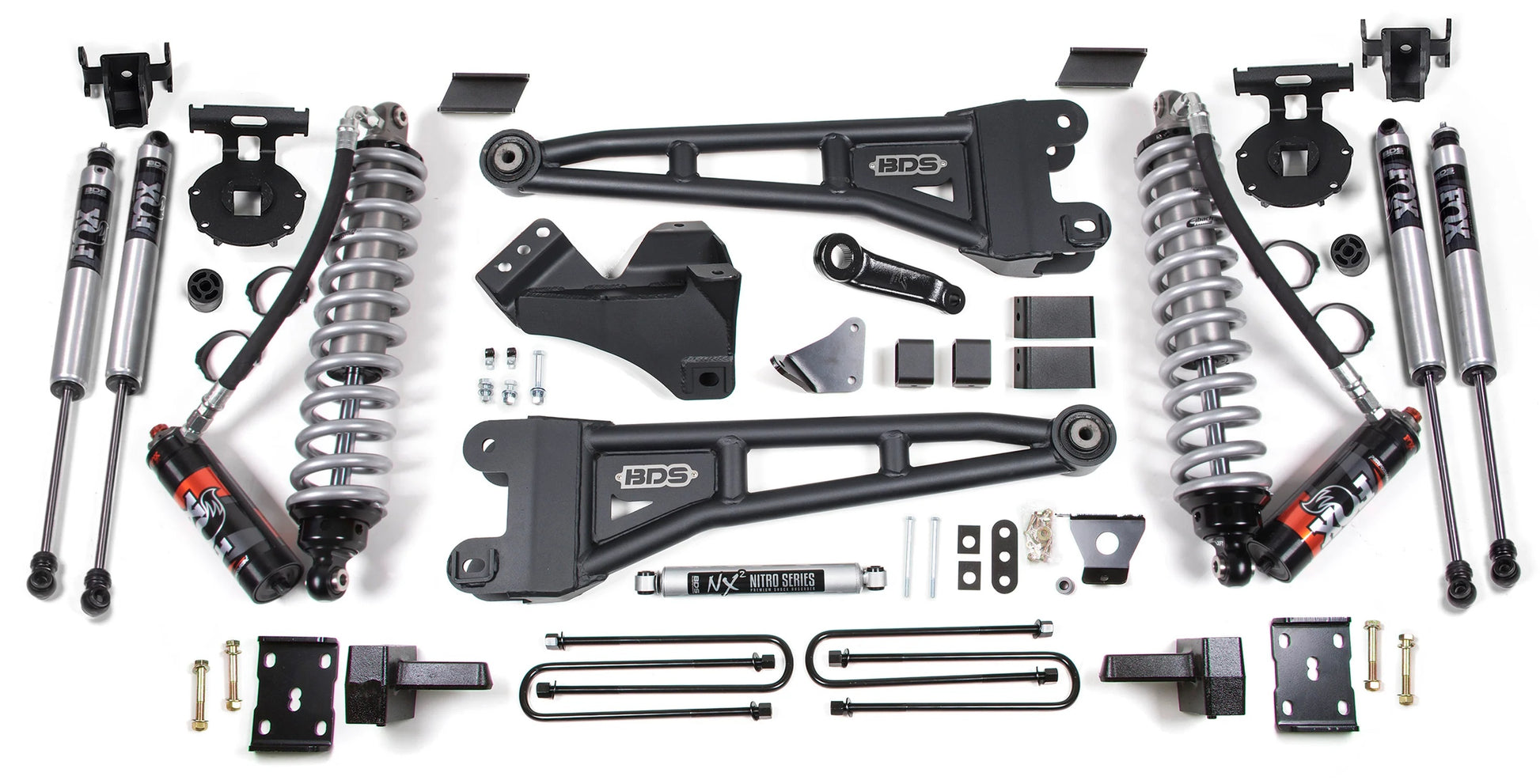

Brand New BDS Suspension 6" Radius Arm Lift Kit with Fox 2.5 Performance Elite Coilovers, Rear Fox 2.0 Performance Shocks, & Block Kit (Part #BDS1954FPE).

Go farther with your Ford truck, upgrade your 2008-2010 Ford Super Duty F250 and F350 diesel truck to the next level with this 6-inch radius arm lift kit with FOX Performance Elite coil-over conversion from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned secondary FOX 2.0 shocks. In the rear the base kit utilizes a high strength lift blocks, longer u-bolts, brake line brackets and a matching set of shocks.

Fits:

  • Ford:
    • 2008-2010 F-250 Super Duty 4WD Diesel with Factory Overload
    • 2008-2010 F-350 Super Duty 4WD Diesel with Factory Overload

Notes:

  • For block kit without factory overload, order lift kit #BDS1953.
  • For block kit with factory overload, order lift kit #BDS1954.
  • For leaf springs, order lift kit #BDS1955.
  • Removal of the factory block is required.
  • Installation of the rear block kit will result in a "pre-runner" look with the rear of the vehicle lower than the front. To get a level stance you must upgrade to the rear leaf spring option.
  • These trucks were manufactured with and without top mounted overload springs on the rear leaf springs. A top mounted overload is an extra leaf separate from the pack that set above the main leaf. You will need to identify which you have before ordering.
  • If your vehicle is equipped with a carrier bearing, you will need to order 123402 in the options section.
  • Front exhaust modification may be required to clear the front driveshaft on gas models.
  • U-bolts will not fit dually models.
  • Dropped pitman arm will not fit 10 lug wide track F350 models.
  • Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 20 x 9 and 4.5 in. Backspace

Features:

  • FOX 2.5 Coilover mounts in factory coil bucket location
  • Adds additional secondary FOX 2.0 shock for max performance
  • Eibach coil springs ride smooth through the roughest terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • FOX shocks are fully serviceable and resistant to corrosion and harsh environments

FOX 2.5 Performance Elite Series:

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • DSC - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use

Specs:

  • Front Lift Method: Coil Spring
  • Front Lift Height: 6"
  • Rear Lift Method: Block
  • Rear Lift Height: 3"

You can view and download the assembly instruction booklet here, here, here, and here.
