BDS 2005-2007 FORD F250,F350 4WD,GAS,6" RADIUS LIFT,LEAF SPRINGS,NITRO SHOCKS

BDS 2005-2007 FORD F250,F350 4WD,GAS,6" RADIUS LIFT,LEAF SPRINGS,NITRO SHOCKS

STU BDS1952H

$2,213.30
$2,213.30
View full details

Brand New BDS Suspension 6" Radius Arm Lift Kit with Nitro Shocks & Leaf Springs (Part #BDS1952H).

Easily fit 37 inch tires on your 2005-2007 Ford Super Duty F250 and F350 gas truck by installing this 6-inch radius arm lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

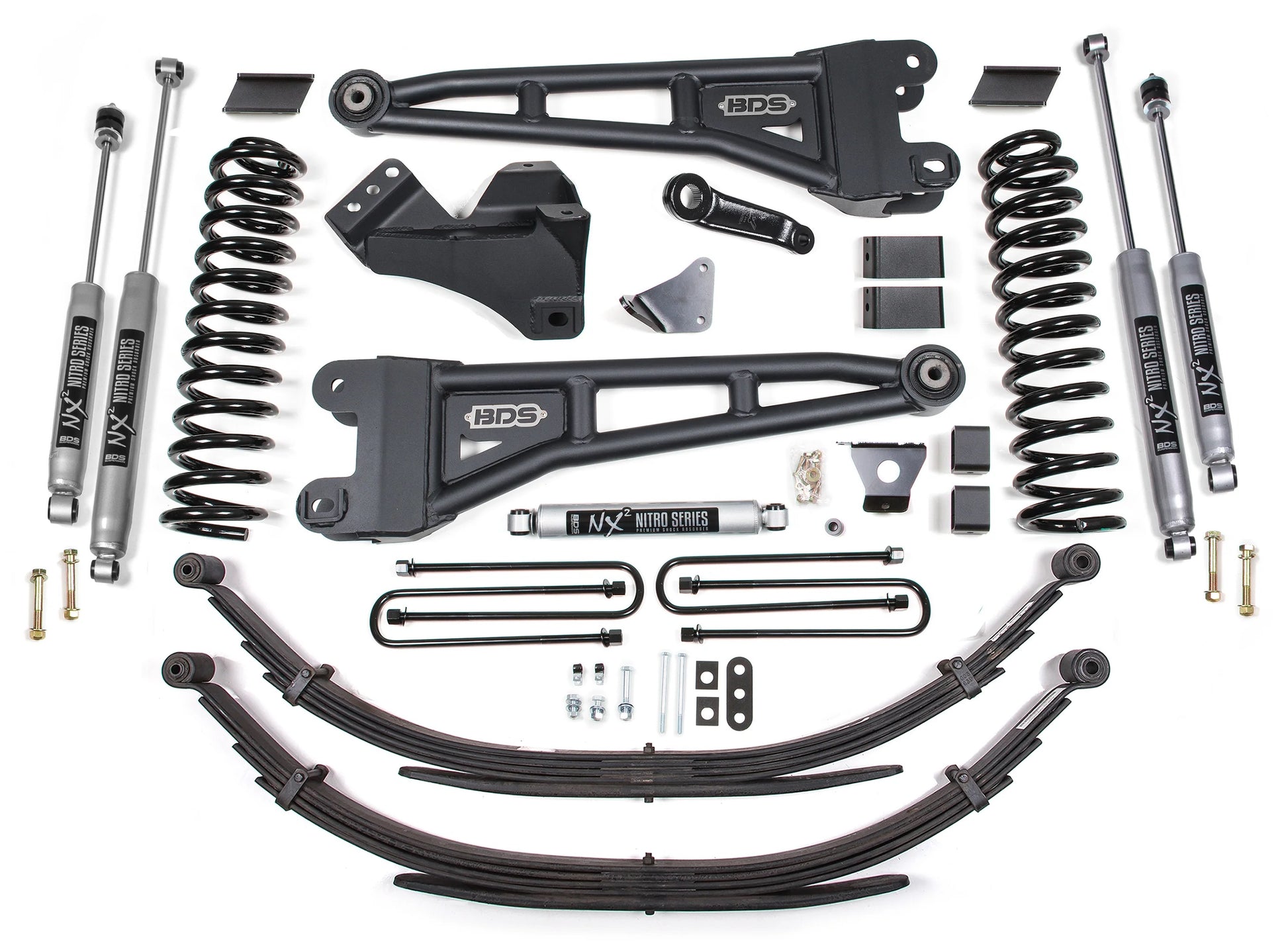

Up front the lift kit includes gas-specific 6-inch lift Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned shocks. In the rear the base kit utilizes leaf springs, longer u-bolts, brake line brackets and a matching set of shocks.

Fits:

  • Ford:
    • 2005-2007 F-250 Super Duty 4WD Gas
    • 2005-2007 F-350 Super Duty 4WD Gas

Notes:

  • For block kit without factory overload, order lift kit #BDS1949.
  • For block kit with factory overload, order lift kit #BDS1951.
  • For leaf springs, order lift kit #BDS1952.
  • Removal of the factory block is required.
  • These trucks were manufactured with and without top mounted overload springs on the rear leaf springs. A top mounted overload is an extra leaf separate from the pack that set above the main leaf. You will need to identify which you have before ordering.
  • If your vehicle is equipped with a carrier bearing, you will need to order 123402 in the options section.
    Although extremely rare, front driveline vibration may occur.
    Front exhaust modification may be required to clear the front driveshaft on gas models.
  • U-bolts will not fit dually models.
  • Dropped pitman arm will not fit 10 lug wide track F350 models.
  • Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 20 x 9 and 4.5 in. Backspace

Features:

  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling

NX2 Nitro Series:

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

Specs:

  • Front Lift Method: Coil Spring
  • Front Lift Height: 6"
  • Rear Lift Method: Leaf Spring
  • Rear Lift Height: 6"

You can view and download the assembly instruction booklet here and here.
