BDS 1988-1998 CHEVY,GMC K1500 4WD 6" LIFT LEAF SPRINGS KIT WITH NITRO SHOCKS

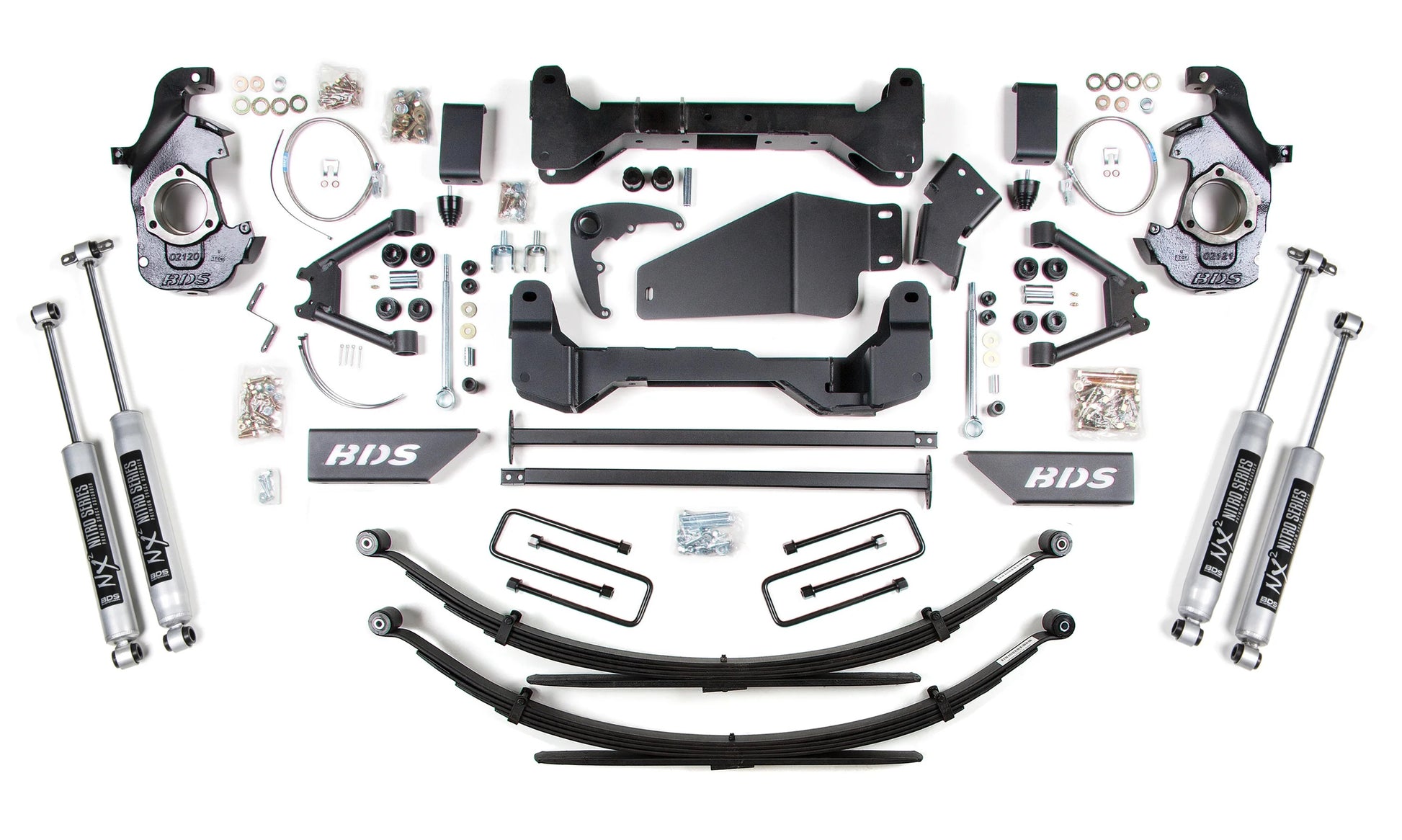

Brand New BDS Suspension 6" Lift Kit with Front Nitro Shocks, Rear Nitro Shocks, and Leaf Springs (Part #BDS194H).

Engineered to improve stance, performance, and capability, the BDS 6-inch lift kit for the 1988-1998 Chevy and GMC K1500 and K2500 6 Lug trucks is a must have upgrade. For maximum drivability, BDS designed this kit around heavy duty upper control arms and steering knuckles that offers zero track width change. This kit includes everything necessary to set your truck up right with clearance for up to 35" tires. This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and off-road protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes torsion bar drop brackets, heavy duty upper control arms, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for off-road protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it. In the rear BDS offers both replacement lift block / add-a-leaf combo and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts.

Compatible with:

• Chevrolet:

  • 1988-1998 K1500
  • 1988 K2500 with 6 Lug
• GMC:
  • 1988-1998 K1500


Notes:

• Requires exhaust modification.

• Special tool (Kent Moore Tools Part #J-36202-A) is required to unload/load torsion bars.

• Requires frame bracket modification and differential mount modification.

• Not recommended for long box extended cab models due to crossmember interference.

• All models equipped with auto-trac may require a new front driveshaft. The auto-trac New Process 246 transfer case can be identified by the silver dollar sized plaque on the rear of the transfer case that reads "NP246". The dash mounted display will display the Auto 4WD symbol. NP243 is not auto-trac.

• Aftermarket wheels are required

• System will not work on some '88-'95 vehicles equipped with spindle mounted front ABS sensor.

• Traction bars will not work on regular cab, short box models.
• Recommended Tires & Wheels (Trimming May Be Required): 35 x 12.5 with 15 x 8 and 3.625 in. Backspace, 35 x 12.5 with 17 x 8 and 4.5 in. Backspace, or 35 x 12.5 with 20 x 9 and 5.25 in. Backspace

Features:

• High clearance crossmember design maximizes ground clearance

• Robust steering knuckles for long lasting durability

• High-strength replacement upper control arms provide durability and serviceability

• HD skid plate system improved off-road protection

• Multipoint differential relocation brackets to secure the front axle and improve CV angles


NX2 Nitro Series:

• Nitrogen-charged

• Twin-tube design

• 10-stage velocity-sensitive valving

• Dual-welded ends for increased strength

• 1-3/8-inch high-flow piston

• Self-lubricating seals

• Silver powder coat finish

Specs:

• Front Lift Method: Crossmember
• Front Lift Height: 6"

• Rear Lift Method: Leaf Spring
• Rear Lift Height: 5"

You can view and download the assembly or instruction booklet here.
