BDS 2008-2010 FORD F250,F350 4WD,DIESEL,4" RADIUS LIFT,OVERLOAD,BLOCK,FOX 2.0

BDS 2008-2010 FORD F250,F350 4WD,DIESEL,4" RADIUS LIFT,OVERLOAD,BLOCK,FOX 2.0

STU BDS1938FS

$2,234.36
$2,234.36
View full details

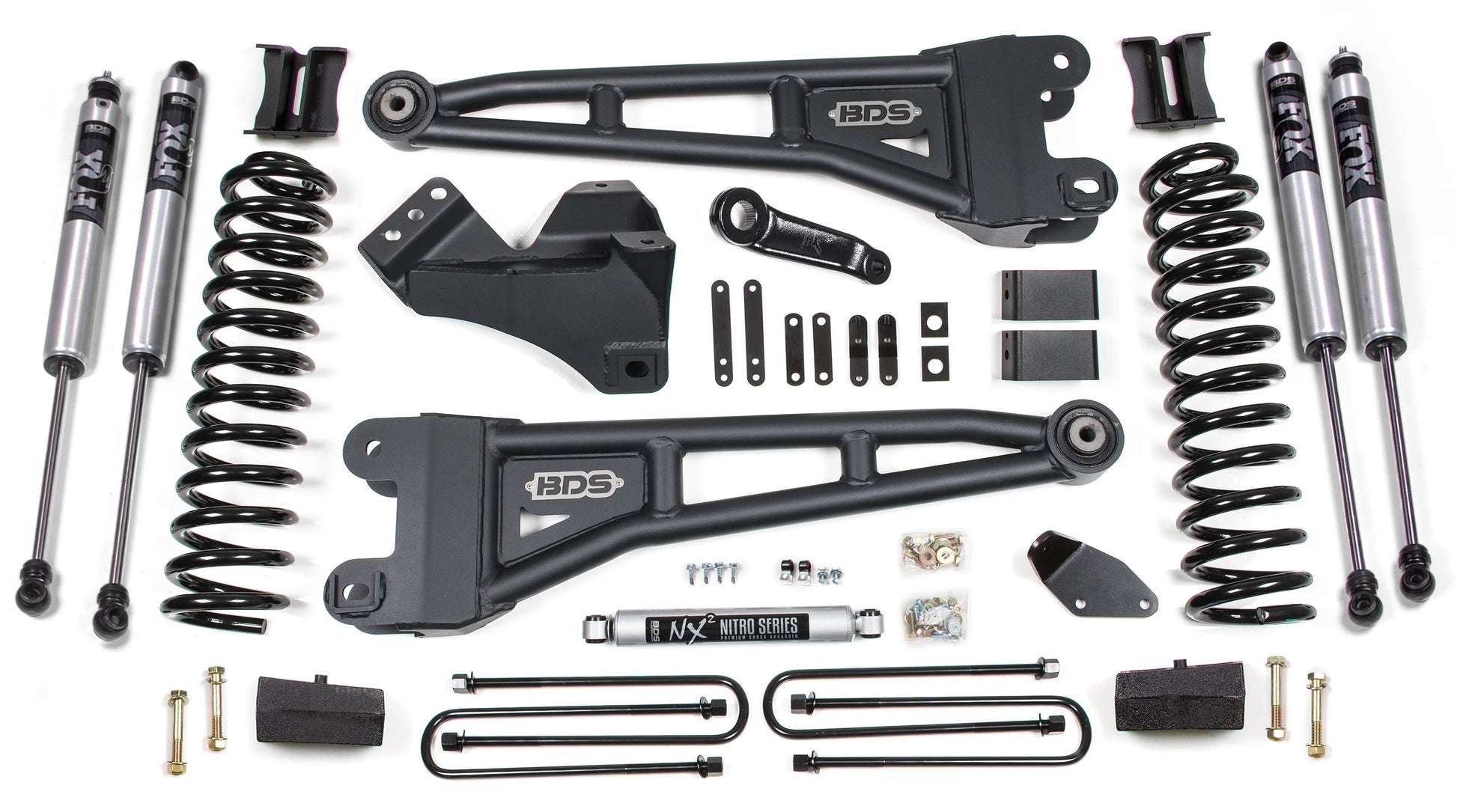

Brand New BDS Suspension 4" Radius Arm Lift Kit with Fox 2.0 Performance Shocks & Block Kit (Part #BDS1938FS).

Improve the ride on your 2008-2010 Ford F250 and F350 Super Duty diesel truck with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks. In the rear the base kit utilizes leaf springs, U-bolt flip kit for max ground clearance, brake line brackets and a matching set of shocks.

Fits:

  • Ford:
    • 2008-2010 F-250 Super Duty 4WD Diesel with Factory Overload
    • 2008-2010 F-350 Super Duty 4WD Diesel with Factory Overload

Notes:

  • For block kit without factory overload, order lift kit #BDS1937.
  • For block kit with factory overload, order lift kit #BDS1938.
  • For leaf springs, order lift kit #BDS1939.
  • These trucks were manufactured with and without top-mounted overload springs on the rear leaf springs. A top-mounted overload is an extra leaf separate from the pack that is set above the main leaf. You will need to identify which you have before ordering.
  • If your vehicle is equipped with a carrier bearing, you will need to order 123402 in the accessories section.
  • Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 18 x 9 and 4.5 in. Backspace or 35 x 12.5 with 20 x 9 and 4.5 in. Backspace

Features:

  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear

FOX 2.0 Performance Series:

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Specs:

  • Front Lift Method: Coil Spring
  • Front Lift Height: 4"
  • Rear Lift Method: Block
  • Rear Lift Height: 3"

You can view and download the assembly instruction booklet here, here, and here.
