BDS 2005-2007 FORD F250,F350 4WD,DIESEL,4" RADIUS LIFT,OVERLOAD,BLOCK,NITRO

BDS 2005-2007 FORD F250,F350 4WD,DIESEL,4" RADIUS LIFT,OVERLOAD,BLOCK,NITRO

STU BDS1932H

$1,673.30
$1,673.30
View full details

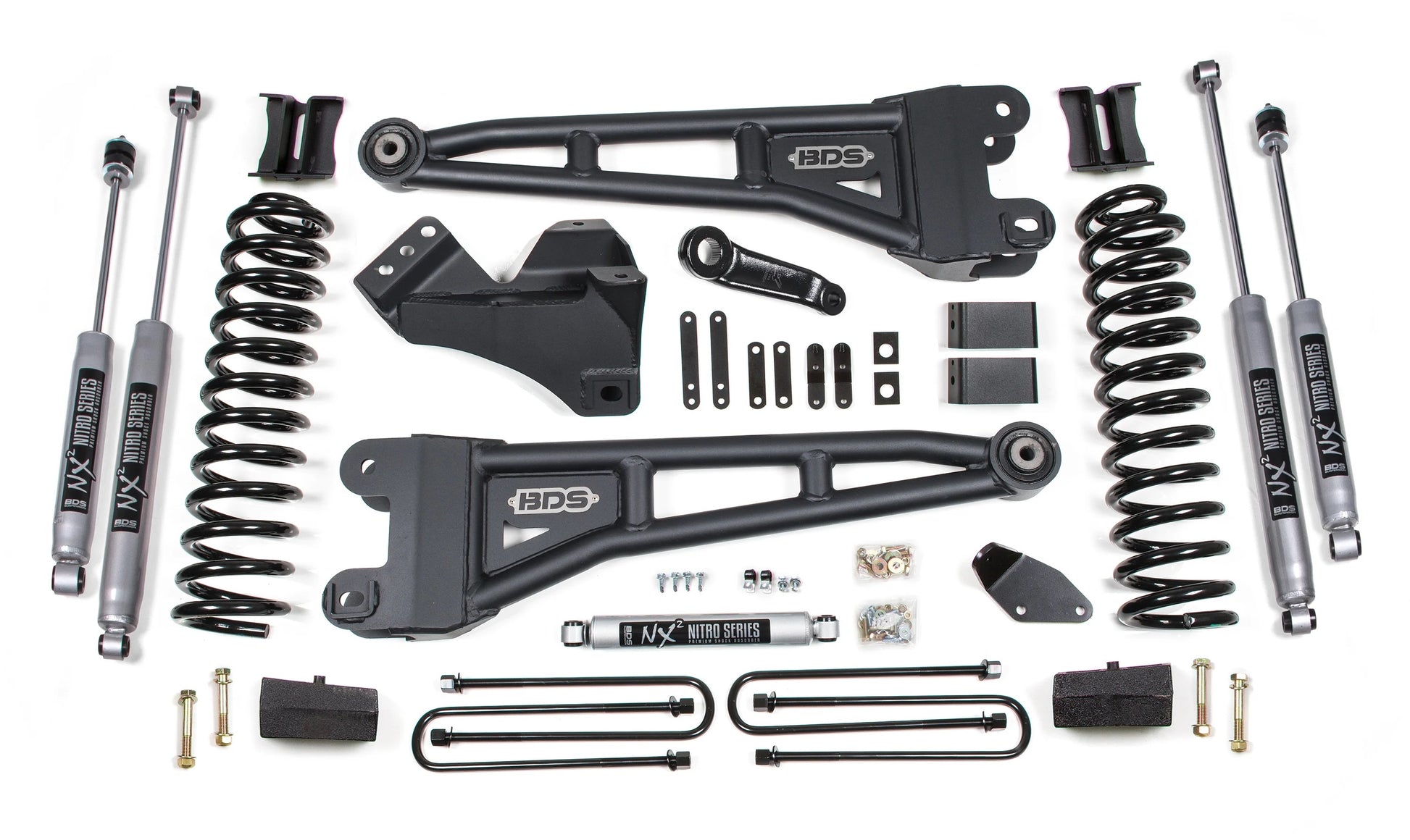

Brand New BDS Suspension 4" Radius Arm Lift Kit with Nitro Shocks & Block Kit (Part #BDS1932H).

Improve the ride on your 2005-2007 Ford F250 and F350 Super Duty diesel truck with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks. In the rear the base kit utilizes a high-strength lift block, U-bolt flip kit for max ground clearance, brake line brackets and a matching set of shocks.

Fits:

  • Ford:
    • 2005-2007 F-250 Super Duty 4WD Diesel with Overload Springs
    • 2005-2007 F-350 Super Duty 4WD Diesel with Overload Springs

Notes:

  • For block kit without factory overload, order lift kit #BDS1931.
  • For block kit with factory overload, order lift kit #BDS1932.
  • For leaf springs, order lift kit #BDS1933.
  • These trucks were manufactured with and without top-mounted overload springs on the rear leaf springs. A top-mounted overload is an extra leaf separate from the pack that is set above the main leaf. You will need to identify which you have before ordering.
  • If your vehicle is equipped with a carrier bearing, you will need to order part #123402.
  • Does not fit dually models, dual rear wheel trucks require custom u-bolts to be made.
  • Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 18 x 9 and 4.5 in. Backspace or 35 x 12.5 with 20 x 9 and 4.5 in. Backspace

Features:

  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear

NX2 Nitro Series:

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

Specs:

  • Front Lift Method: Coil Spring
  • Front Lift Height: 4"
  • Rear Lift Method: Block
  • Rear Lift Height: 3"

You can view and download the assembly instruction booklet here, here, and here.
