BDS 01-10 K2500/SUV HC 4WD 4.5/3 BLOCK

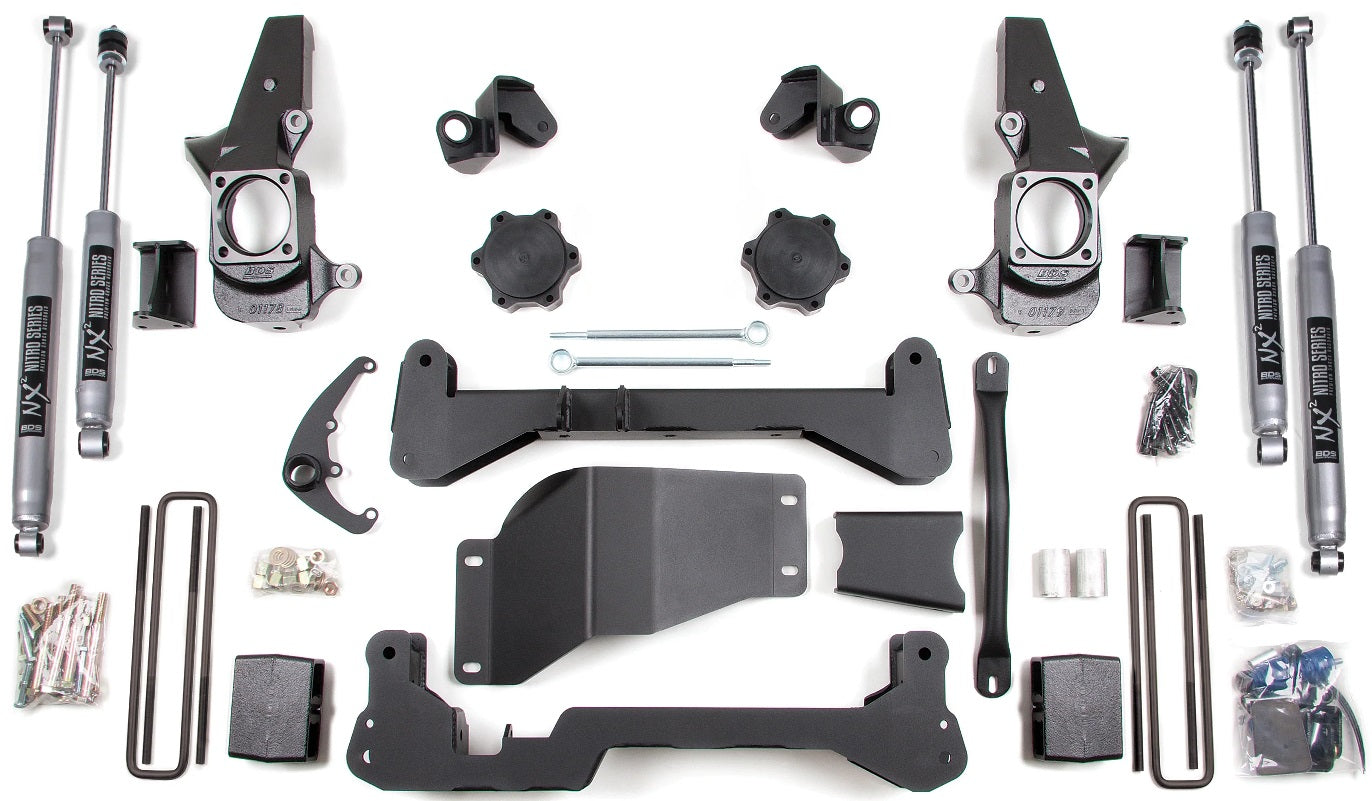

BRAND NEW BDS SUSPENSION 4.5" LIFT KIT, NX2 NITRO SERIES SHOCKS, COMPATIBLE WITH 2001-2010 CHEVY SILVERADO 2500 HD & GMC SIERRA 2500 HD

DESIGNED TO IMPROVE STANCE, PERFORMANCE, AND CAPABILITY, THE BDS 4.5-INCH LIFT KIT FOR THE 2001-2010 CHEVY SILVERADO AND GMC SIERRA 2500 HD 4WD IS A MUST HAVE UPGRADE. FOR MAXIMUM GROUND CLEARANCE, BDS DESIGNED A NO TORSION BAR DROP SYSTEM WHERE THE TORSION BARS ARE MOUNTED DIRECTLY TO THE TOP OF THE LOWER A-ARM REMOVING THE NEED TO DROP THE TORSION BAR CROSS-MEMBER. THIS KIT INCLUDES EVERYTHING NECESSARY TO SET YOUR TRUCK UP RIGHT WITH CLEARANCE FOR UP TO 33" TIRES.

THIS KIT TAKES ADVANTAGE OF BDS TRIED AND TRUE HIGH-CLEARANCE DESIGN FOR IMPROVED GROUND CLEARANCE, STRENGTH, AND OFF-ROAD PROTECTION WHILE CORRECTING SUSPENSION AND STEERING GEOMETRY FOR GREAT ON-ROAD HANDLING CHARACTERISTICS. UP FRONT, THE KIT UTILIZES TORSION BAR RELOCATION BRACKETS, HIGH-ARCHED 1/4-INCH THICK STEEL CROSSMEMBERS ALONG WITH A MULTIPIECE DIFFERENTIAL RELOCATION BRACKETS AND HEAVY DUTY SKID PLATES BUILT FOR OFF-ROAD PROTECTION.

STEERING GEOMETRY IS CORRECTED AT THE NEW TALLER RIDE HEIGHT WITH CNC-MACHINED DUCTILE IRON STEERING KNUCKLES. THESE COMBINED WITH THE PROVIDED SWAY BAR DROPS, BUMP STOP EXTENSIONS, BRAKE LINE BRACKETS, CV SPACERS, SUPPLIED HARDWARE AND MORE PROVIDE A COMPREHENSIVE FRONT SUSPENSION LIFT READY FOR WHATEVER YOU THROW AT IT.

IN THE REAR BDS OFFERS BOTH REPLACEMENT LIFT BLOCK AND FULL GLIDE-RIDE LEAF SPRING OPTIONS TO LIFT AND LEVEL THAT STANCE. THE LIFT BLOCK INSTALLS IN PLACE OF THE STOCK BLOCK AND RETAINS RIDE QUALITY AND LOAD CAPACITY. ALSO FOR THE REAR ARE NEW U-BOLTS, BRAKE LINE BRACKETS AND FOX 2.0 PERFORMANCE SERIES SHOCKS.

NOTE: TORSION BAR TOOL REQUIRED TO LOAD/UNLOAD THE TORSION BARS. SOME WELDING IS REQUIRED. REQUIRES FRAME BRACKET MODIFICATION AND DIFFERENTIAL MOUNT MODIFICATION.

NOTE: TRACTION BARS WILL NOT FIT STANDARD CAB/SHORT BOX MODELS AND ARE DESIGNED TO WORK ON VEHICLES WITH 4" TO 8" OF LIFT. 20" WHEELS WITH 5" TO 5-3/4" BACKSPACING RECOMMENDED TO REDUCE TRIMMING. GAS MODELS REQUIRE EXHAUST MODIFICATION.

NOTE: NARROW TRACK KNUCKLE WILL SLIGHTLY INCREASE THE TURNING RADIUS. FOR TAIL HIGH STANCE USE #119157 ADD-A-LEAF WITH THE BLOCK KIT. NOT RECOMMENDED FOR SUBURBAN & YUKON MODELS WITH AUTOTRAC TRANSFER CASE. DOES NOT WORK WITH REAR AUTORIDE EQUIPPED SUVS

COMPATIBLE WITH:

• CHEVROLET:
• 2001-2006 SILVERADO 1500 HD
• 2001-2003 SILVERADO 2500
• 2001-2010 SILVERADO 2500 HD
• 2007-2010 SILVERADO 3500 HD
• 2001-2006 SUBURBAN 2500
• 2002-2006 AVALANCHE 2500
• GMC:
• 2001-2006 SIERRA 1500 HD
• 2001-2003 SIERRA 2500
• 2001-2010 SIERRA 2500 HD
• 2007-2010 SIERRA 3500 HD
• 2001-2006 YUKON XL 2500

HIGH CLEARANCE CROSSMEMBERS:

• BDS MAXIMIZES GROUND CLEARANCE WITH THEIR HEAVY DUTY 1/4-INCH THICK LASER CUT PERFECT FIT CROSSMEMBERS. PAIRED WITH A FRONT SKID PLATE SYSTEM THAT BOLTS TOGETHER TO CREATE A RIGID SUBFRAME WHILE ADDING EXTRA PROTECTION.

NX2 NITRO SERIES:

• NITROGEN-CHARGED
• TWIN-TUBE DESIGN
• 10-STAGE VELOCITY-SENSITIVE VALVING
• DUAL-WELDED ENDS FOR INCREASED STRENGTH
• 1-3/8-INCH HIGH-FLOW PISTON
• SELF-LUBRICATING SEALS
• SILVER POWDER COAT FINISH

RECOMMENDED TIRES & WHEELS:

• 33 X 12.5 WITH 17 X 9 AND 5.5 IN. BACKSPACE
• 33 X 12.5 WITH 18 X 9 AND 5.5 IN. BACKSPACE
• 33 X 12.5 WITH 20 X 9 AND 5.75 IN. BACKSPACE

FEATURES:

• HIGH CLEARANCE DESIGN WITH NO TORSION BAR DROP MAXIMIZES GROUND CLEARANCE
• ROBUST STEERING KNUCKLES MAINTAIN ESC SYSTEM COMPLIANCE
• HD SKID PLATE SYSTEM IMPROVED OFF-ROAD PROTECTION
• MULTIPOINT DIFFERENTIAL RELOCATION BRACKETS TO SECURE THE FRONT AXLE & IMPROVE CV ANGLES
• FACTORY PROTECTION PLUS DRIVETRAIN WARRANTY INCLUDED

SPECS:

• FRONT LIFT METHOD: CROSS-MEMBER
• REAR LIFT METHOD: BLOCK
• SHOCKS INCLUDED: YES
• FRONT LIFT HEIGHT: 4.5"
• REAR LIFT HEIGHT: 3"

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS LIFT KIT HERE.
