BDS 2011-2016 FORD F250,F350 4WD,DIESEL,2.5" RADIUS LIFT,2" BLOCK,FOX 2.5,2.0

BDS 2011-2016 FORD F250,F350 4WD,DIESEL,2.5" RADIUS LIFT,2" BLOCK,FOX 2.5,2.0

STU BDS1926FPE

$4,597.55
$4,597.55
View full details

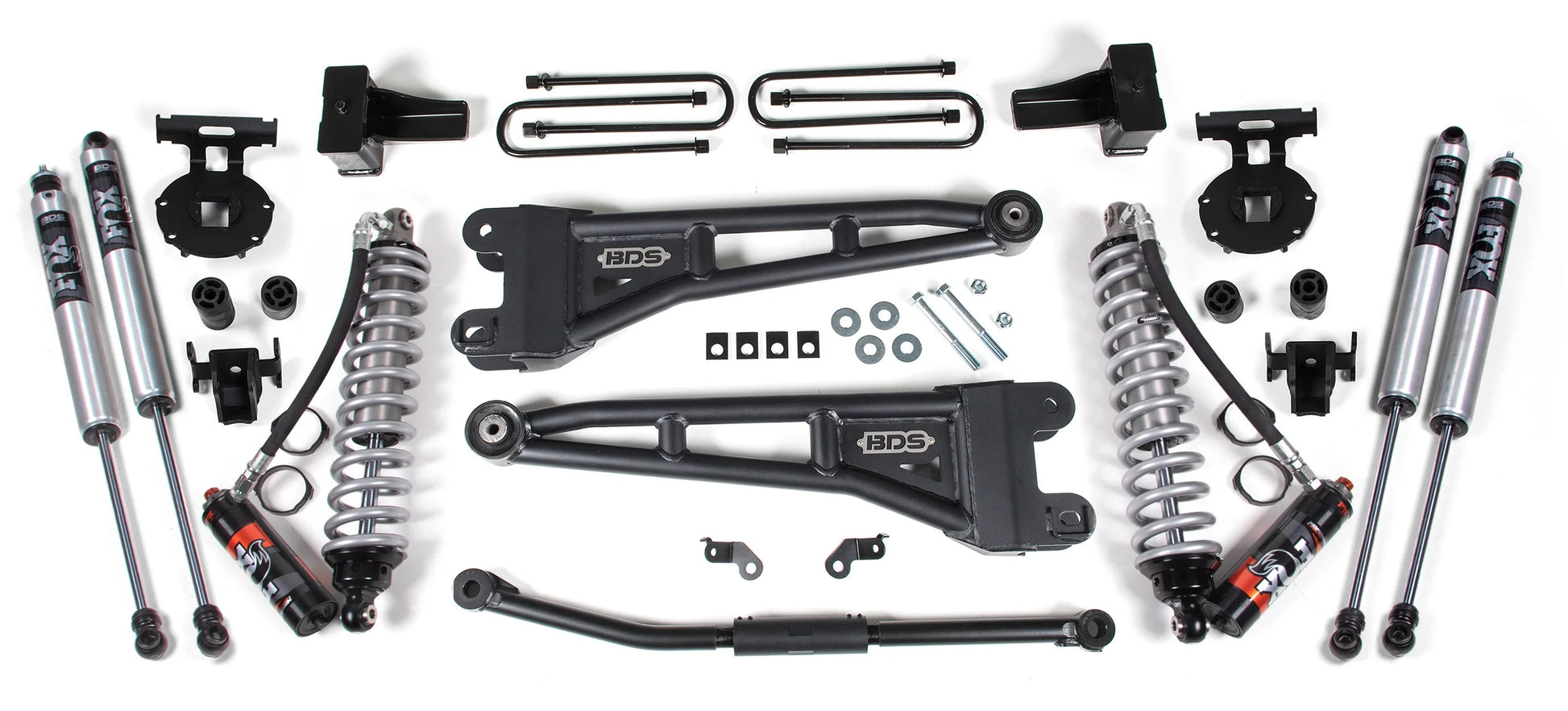

Brand New BDS Suspension 2.5" Radius Arm Lift Kit with Fox 2.5 Performance Elite Coilovers & 5" Block Kit (Part #BDS1926FPE).

BDS Suspension raises the bar with this 2.5-inch radius arm lift kit with FOX 2.5 Performance Elite coilover shocks for 2011-216 Ford F250 and F350 Super Duty diesel-powered trucks. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your vehicle up right with clearance for up to 35" tires.

Up front, the lift kit includes diesel-specific FOX 2.5 coilover shocks, heavy-duty replacement radius arms, a high-strength 1-3/8-inch solid steel track bar for steering correction, and brake line brackets. In the rear, this kit utilizes a high-strength fabricated lift block, longer u-bolts, and a matching set of FOX Performance shocks.

Fits:

  • Ford:
    • 2011-2016 F-250 Super Duty 4WD Diesel without Overload Springs
    • 2011-2016 F-350 Super Duty 4WD Diesel without Overload Springs

Notes:

  • Models equipped with a 3-3/4" rear block from the factory do not require a rear block kit in order to achieve a more level stance (#BDS1928).
  • The 4" rear block kit provides a level stance (#BDS1509).
  • For a more tail-high stance, use the  5" rear block kit (#BDS1926).
  • Designed for Diesel models w/o top mounted overload rear springs
  • U-bolts for trucks with overloads required (Part #UBT4028 Qty 4).
  • Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 17 x 9 and 5 in. Backspace, 35 x 12.5 with 18 x 9 and 5 in. Backspace, or 35 x 12.5 with 20 x 9 and 5 in. Backspace

Features:

  • FOX 2.5 Coilover mounts in factory coil bucket location
  • Adds additional secondary FOX 2.0 shock for max performance
  • Eibach coil springs ride smooth through the roughest terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Adjustable solid steel track bar designed to re-center the front axle
  • Fabricated steel blocks provide level stance from front to rear
  • FOX shocks are fully serviceable and resistant to corrosion and harsh environments.

FOX 2.5 Performance Elite Series:

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • DSC - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use

Specs:

  • Front Lift Method: Coilover
  • Front Lift Height: 2.5"
  • Rear Lift Method: Block
  • Rear Lift Height: 5"

You can view and download the assembly instruction booklet here, here, here, and here.
