BDS 2011-2016 FORD F250,F350 4WD,DIESEL,2.5" LIFT,2" BLOCK,FOX 2.0 SHOCKS

BDS 2011-2016 FORD F250,F350 4WD,DIESEL,2.5" LIFT,2" BLOCK,FOX 2.0 SHOCKS

STU BDS1925FS

$1,802.65
$1,802.65
View full details

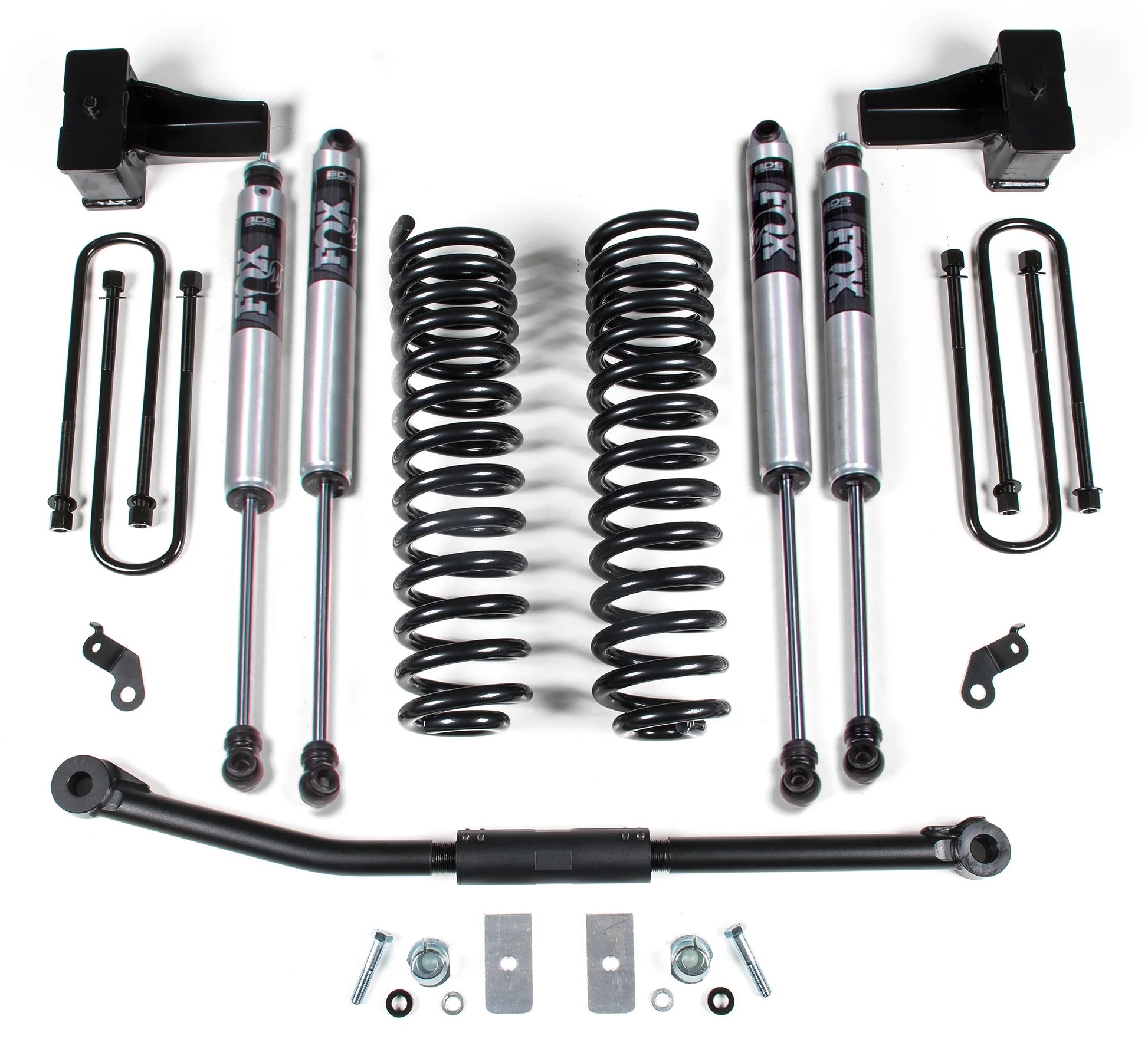

Brand New BDS Suspension 2.5" Lift Kit with Fox 2.0 Performance Shocks & 5" Block Kit (Part #BDS1925FS).

Improve the ride and level out your 2011-2016 Ford F250 and F350 Super Duty diesel powered truck with this 2.5-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, high strength 1-3/8 inch solid steel track bar for steering correction, brake line brackets and precision tuned nitrogen charged shocks. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of shocks.

Fits:

  • Ford:
    • 2011-2016 F-250 Super Duty 4WD Diesel without Overload Springs
    • 2011-2016 F-350 Super Duty 4WD Diesel without Overload Springs

Notes:

  • No Block - Tail low stance (Purchase kit #BDS1927)
  • 4 Inch Block Kit - Level stance (Purchase kit #BDS1510)
  • 5 Inch Block Kit - Tail high stance (Purchase kit #BDS1925)
  • Designed for Diesel models without top mounted overload rear springs
  • U bolts for trucks with overloads required, part# UBT4028 (Qty 4)
  • Models equipped with a 3-3/4" rear block from the factory do not require a rear block kit in order to achieve a more level stance.
  • For a more tail-high stance, substitute #013519 5" rear block kit
  • Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 17 x 9 and 5 in. Backspace, 35 x 12.5 with 18 x 9 and 5 in. Backspace, or 35 x 12.5 with 20 x 9 and 5 in. Backspace

Features:

  • Pro-Ride dual rate coil springs ride smooth through any terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Adjustable solid steel track bar designed to re-center the front axle
  • Fabricated steel blocks provide level stance from front to rear

FOX 2.0 Performance Series:

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Specs:

  • Front Lift Method: Coil Spring
  • Front Lift Height: 2.5"
  • Rear Lift Method: Block
  • Rear Lift Height: 5"

You can view and download the assembly instruction booklet here and here.
