BDS 2011-2016 FORD F250,F350 4WD,DIESEL,2.5" LIFT,2" BLOCK,FOX 2.5 COILOVERS

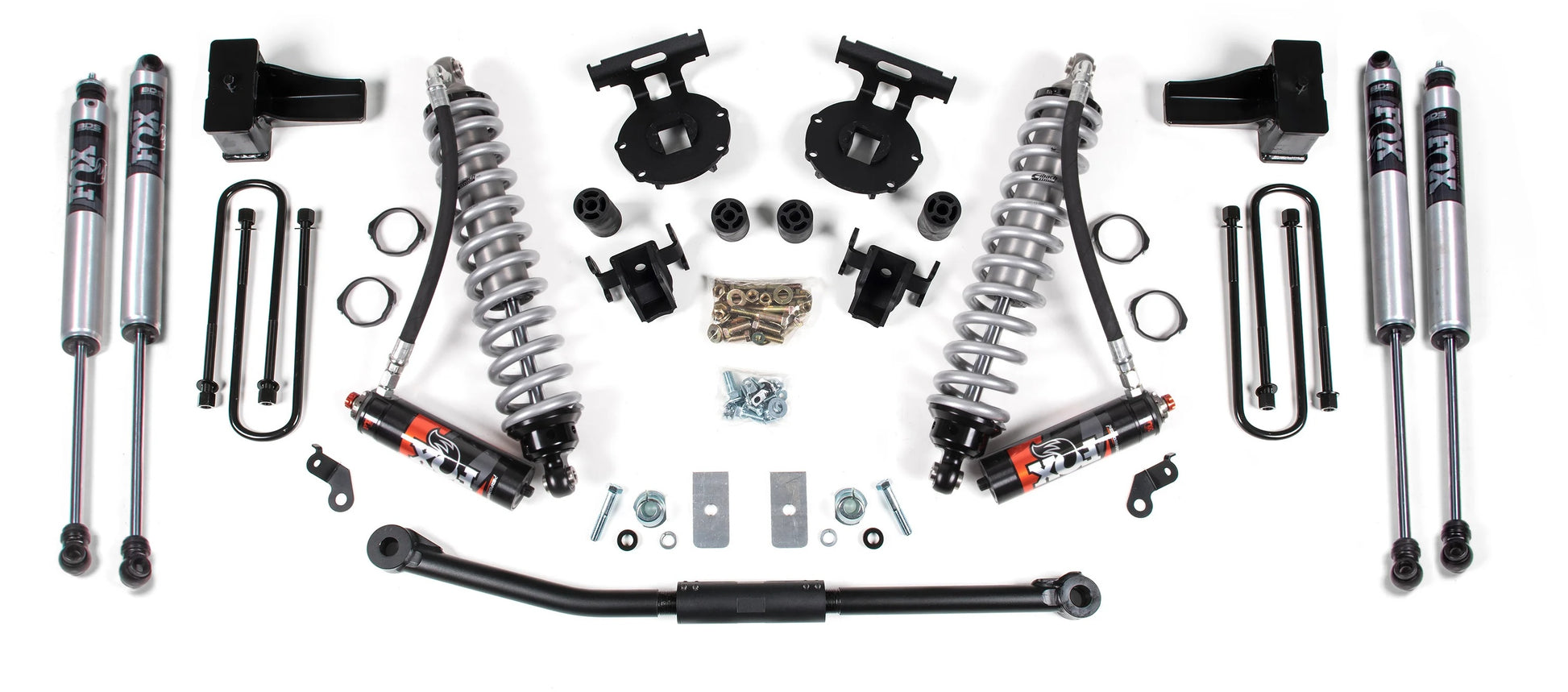

Brand New BDS Suspension 2.5" Lift Kit with Fox 2.5 Performance Elite Coilovers & 5" Block Kit (Part #BDS1925FPE).

Fits:

• Ford:
  • 2011-2016 F-250 Super Duty 4WD Diesel without Overload Springs
  • 2011-2016 F-350 Super Duty 4WD Diesel without Overload Springs

Notes:

• No Block - Tail low stance (Purchase kit #BDS1927)
• 4 Inch Block Kit - Level stance (Purchase kit #BDS1510)

• 5 Inch Block Kit - Tail high stance (Purchase kit #BDS1925)
• Exhaust modification may be required to clear the front driveshaft (gas only)

• Front bumper spacer kit may be required to run 38"x15.50" tires

• Although extremely rare, front driveline vibration may occur

• If equipped with 2-piece rear driveshaft, a driveshaft alignment kit (#123406) will be required

• Front driveshaft u-joints may max out at full droop. If so, a new front shaft will be required.

• If equipped with a rear sway bar, #123009 is required.

• U-bolts will not work on dually.

• Front auxiliary shocks can be omitted from kit - the system can be used with C/O installed alone

• BDS leaf springs are not intended for use beyond the truck's maximum payload capacity. Trucks equipped with overload springs will only have the capacity of a non-overload equipped truck. If heavy payload use is desired, supplemental rear airbags are recommended.
• Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 17 x 9 and 5 in. Backspace, 35 x 12.5 with 18 x 9 and 5 in. Backspace, or 35 x 12.5 with 20 x 9 and 5 in. Backspace

Features:

• FOX 2.5 Coilover mounts in factory coil bucket location

• Adds additional secondary FOX 2.0 shock for max performance

• Eibach coil springs ride smooth through the roughest terrain

• Adjustable solid steel track bar designed to re-center the front axle

• Fabricated steel blocks provide level stance from front to rear

• FOX shocks are fully serviceable and resistant to corrosion and harsh environments.

FOX 2.5 Performance Elite Series:

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use

Specs:

• Front Lift Method: Coilover
• Front Lift Height: 2.5"
• Rear Lift Method: Block
• Rear Lift Height: 2"

You can view and download the assembly instruction booklet here, here, and here.
