BDS 2014 FORD F150 4WD,6" LIFT KIT,CROSSMEMBER,4" BLOCK,NITRO SHOCKS

BDS 2014 FORD F150 4WD,6" LIFT KIT,CROSSMEMBER,4" BLOCK,NITRO SHOCKS

STU BDS1921H

$1,918.60
$1,918.60
View full details

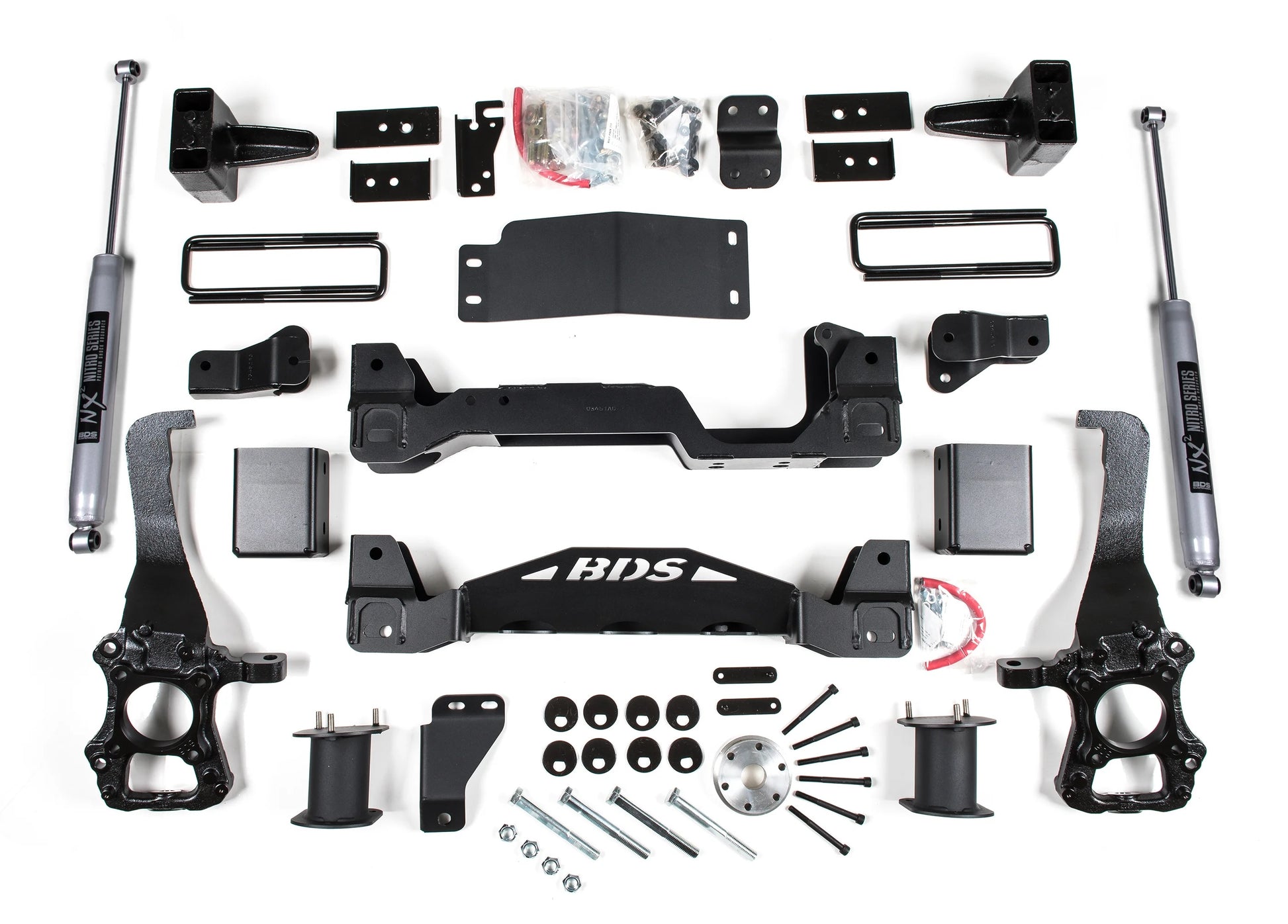

Brand New BDS Suspension 6" Lift Kit with Nitro Shocks & 4" Block Kit (Part #BDS1921H).

Take your 2014 Ford F150 4WD truck to new heights with a 6-inch suspension lift kit by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

This kit leverages BDS's proven high-clearance design for enhanced ground clearance, strength, and superior off-road protection, while addressing suspension and steering geometry. It is complemented by the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, and supplied hardware, resulting in excellent on-road handling characteristics. Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers, top mounted strut spacers, multipiece differential relocation brackets and skid plate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse. In the rear, BDS utilizes high-strength cast steel lift blocks and longer u-bolts to lift and level the stance along with shocks.

Fits:

  • Ford:
    • 2014 F-150 4WD

Notes:

  • 4 Inch Block Kit - Tail low to level stance (#BDS1921)
  • 5 Inch Block Kit - Level to tail high appearance (#BDS1503)
  • Requires frame bracket modification and welding.
  • 18" or larger diameter wheels required. Stock 17" & 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tire.
  • E-brake bracket required for factory power steps (123018) Block kits replace factory 1-1/4" block.
  • For a level-to-tail low appearance use #023415 in place of included 023425
  • Will not fit HD models (7 lug).
  • FMVSS No.126 Compliant
  • Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 18 x 9 and 5 in. Backspace or 35 x 12.5 with 20 x 9 and 5 in. Backspace

Features:

  • High clearance crossmembers improve strength and offroad capability
  • Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
  • Top mounted strut spacers to provide lift and install easily
  • Differential skid plate for improved offroad protection
  • Rear lift blocks and u-bolts to lift and level the stance

NX2 Nitro Series:

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

Specs:

  • Front Lift Method: Crossmember
  • Front Lift Height: 6"
  • Rear Lift Method: Block
  • Rear Lift Height: 4"

You can view and download the assembly instruction booklet here and here.
