BDS 2015-2019 FORD F150 2WD,6" LIFT KIT,CROSSMEMBER,4" BLOCK,FOX 2.0 SHOCKS

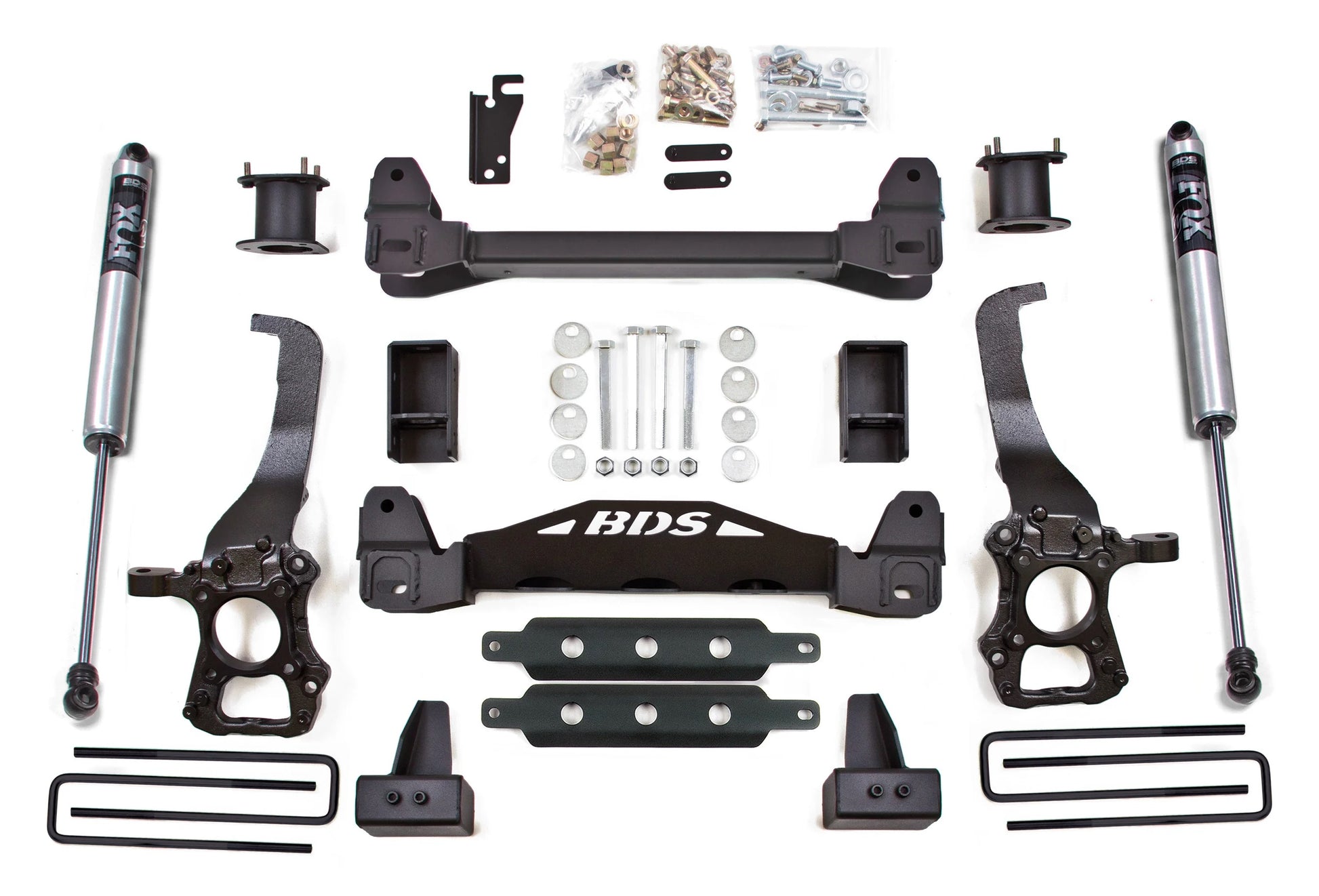

Brand New BDS Suspension 6" Lift Kit with Fox 2.0 Performance Shocks & 4" Block Kit (Part #BDS1918FS).

BDS Suspension leads the industry by developing a 2wd specific 6 inch lift kit suspension system for your 2015-2020 Ford F150 2WD truck. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers, top mounted strut spacers, and skid plate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse. In the rear BDS utilizes high strength fabricated lift blocks, longer u-bolts, and shocks.

Compatible with:

• Ford:
  • 2015-2020 F-150 2WD


Notes:

• The 4" blocks will net a level/tail LOW stance (#BDS1918). The 5" blocks will net a level/tail HIGH stance (#BDS1522).

• 18" wheels with 5-5.5" total backspacing should be tested before mounting to ensure proper clearance to BDS steering knuckle.

• 18" or larger diameter wheels are required. Stock 17" and 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to 305/60-20 tires.

• Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406

• This system WILL WORK on Diesel Models.

• Will not fit HD models (7 lug).

• This kit is FMVSS No.126 Compliant
• Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 18 x 9 and 4.5 in. Backspace, 37 x 12.5 with 18 x 9 and 5 in. Backspace, or 37 x 12.5 with 20 x 9 and 5.5 in. Backspace

Features:

• High clearance crossmembers improve strength and offroad capability

• Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility

• Top mounted strut spacers to provide lift and install easily

• Differential skid plate for improved offroad protection

• Rear lift blocks and u-bolts to lift and level the stance

FOX 2.0 Performance Series:

• 2-inch Impact extruded aluminum body

• Internal floating piston (IFP) monotube design

• CNC machined 6061-T6 aluminum mounting ends

• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft

• Race-developed high-flow piston design

• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs:

• Front Lift Method: Crossmember
• Front Lift Height: 6"
• Rear Lift Method: Block
• Rear Lift Height: 4"

You can view and download the complete assembly instruction booklet here and here.
