BDS 2020-2022 FORD F450 4WD,2.5" RADIUS LIFT,BLOCK,NITRO SHOCKS

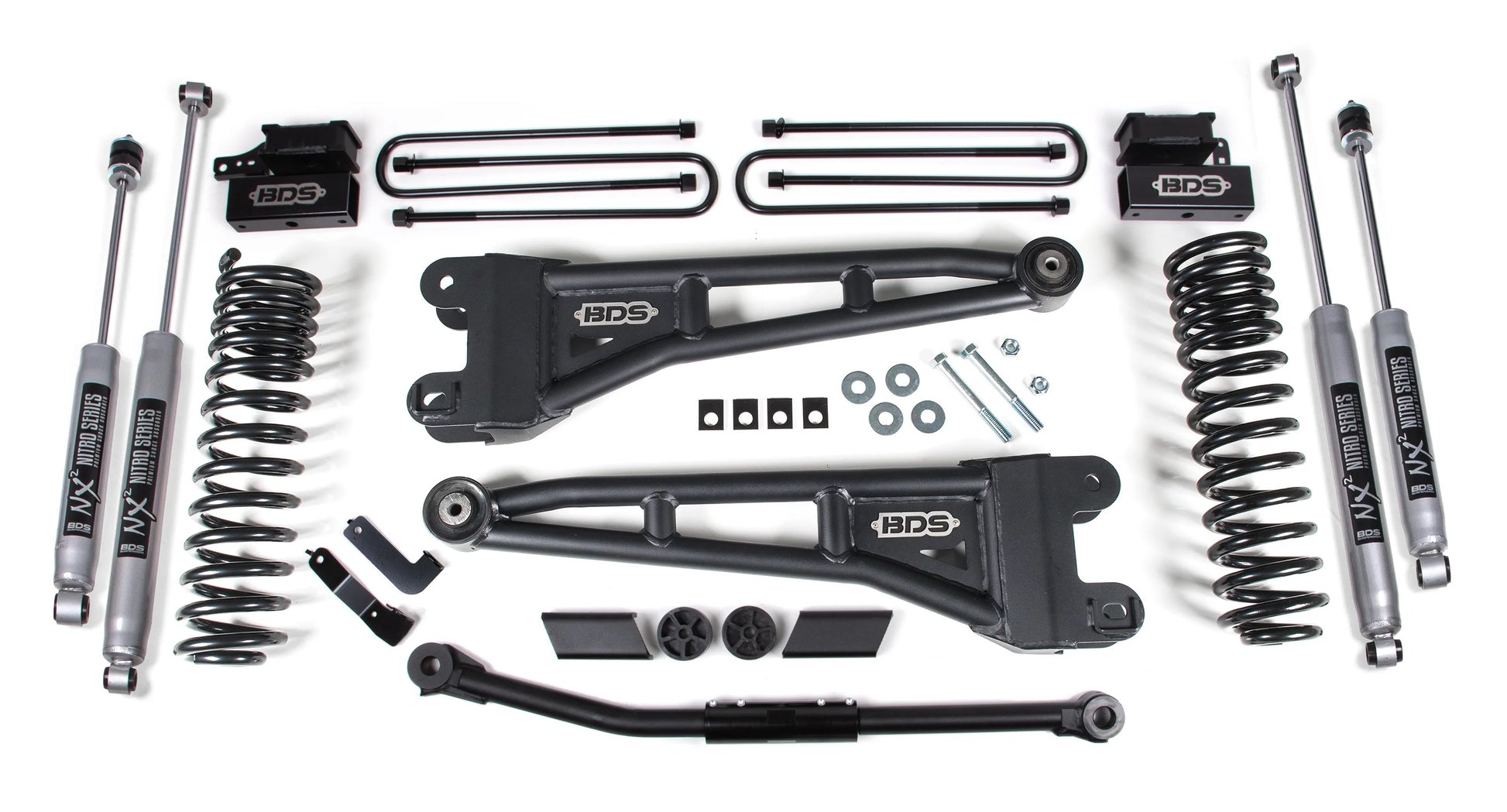

Brand New BDS Suspension 2.5" Radius Arm Lift Kit with Nitro Shocks & Block Kit (Part #BDS1915H).

Level out and take your Ford F450 Super Duty diesel or gas powered truck with this 2.5-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy duty replacement radius arms, high strength 1-3/8 inch solid steel track bar for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of shocks.

Compatible with:

• Ford:
  • 2020-2022 F-450 Super Duty 4WD


Notes:

• Designed for use on diesel models, but can be installed on gas model trucks (will achieve an additional 1/2" front ride height).

• Larger tires on stock wheels are not recommended due to brake line clearance required. Use recommended specifications listed in tire and wheel fitment section.

• Installation requires a torque wrench capable of 405 ft-lbs.
• Max Tire Size: 35x12.50
• Front Wheel: 20x8.25, 8.76" BS
• Rear Outer: 20x8.25, -3.33" BS
• Rear Inner: 20x8.25, 9.11" BS


Features:

• Pro-Ride dual rate coil springs ride smooth through any terrain

• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance

• Adjustable solid steel track bar designed to re-center the front axle

• Fabricated steel blocks provide level stance from front to rear

NX2 Nitro Series:

• Nitrogen-charged

• Twin-tube design

• 10-stage velocity-sensitive valving

• Dual-welded ends for increased strength

• 1-3/8-inch high-flow piston

• Self-lubricating seals

• Silver powder coat finish

Specs:

• Front Lift Method: Coil Spring
• Front Lift Height: 2.5"
• Rear Lift Method: Block
• Rear Lift Height: 1"

You can view and download the complete assembly instruction booklet here and here.
