BDS 2020-2022 FORD F450 4WD,DIESEL,2.5" RADIUS LIFT,BLOCK,FOX 2.5,FOX 2.0 SHOCKS

Brand New BDS Suspension 2.5" Radius Arm Lift Kit with Fox 2.5 Coilovers & Rear Fox 2.0 Performance Shocks (Part #BDS1915FPE).

Build the ultimate Ford F450 Super Duty diesel powered truck with this 2.5-inch radius arm lift kit with FOX 2.5 Performance Elite coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

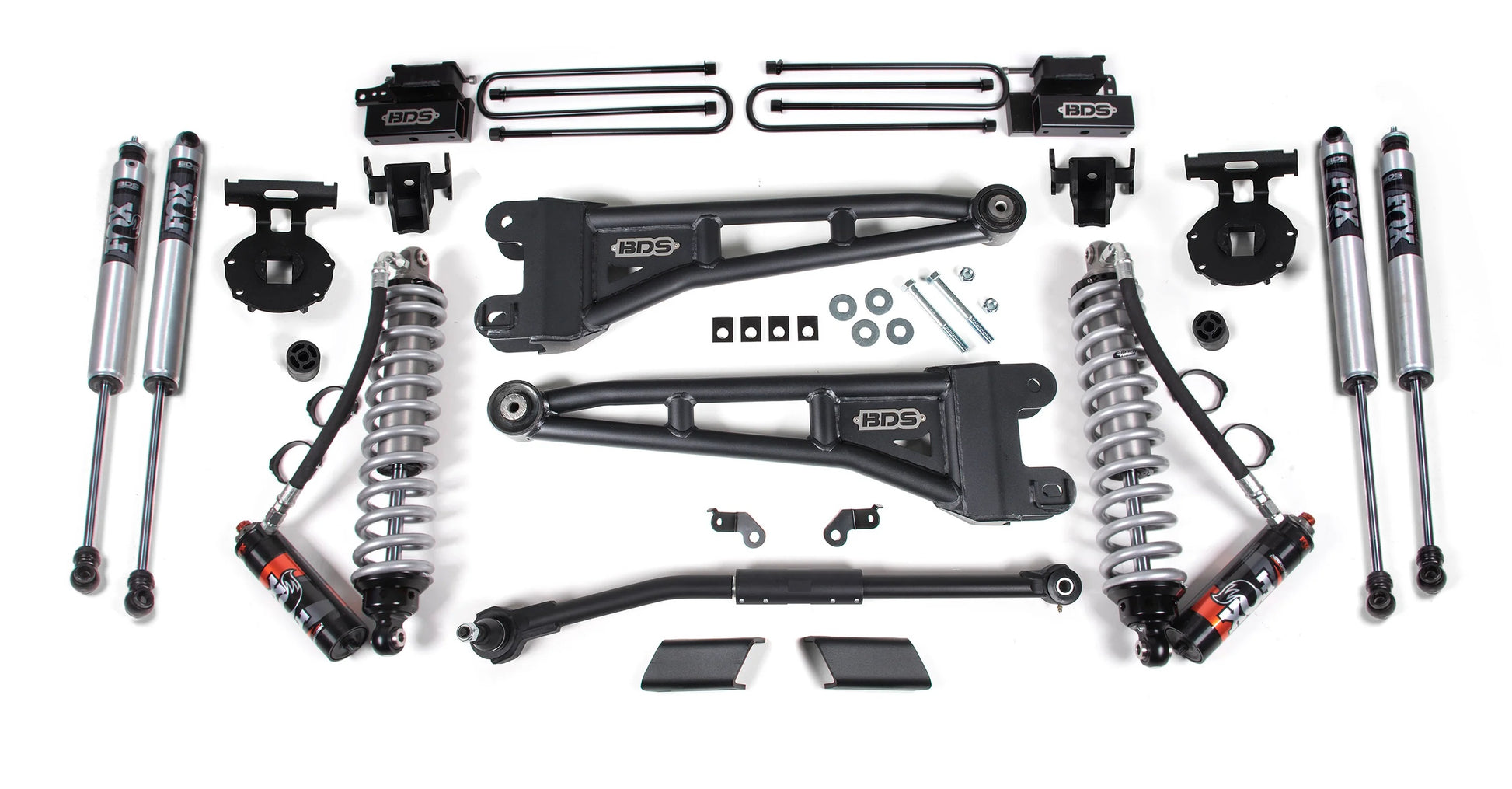

Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, heavy duty replacement radius arms, high strength 1-3/8 inch solid steel track bar for steering correction, sway bar relocation, brake line brackets and secondary FOX 2.0 shocks. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of FOX 2.0 Performance shocks.

Compatible with:

• Ford:
  • 2020-2022 F-450 Super Duty 4WD Diesel


Notes:

• Fits diesel models only

• These kits are designed for the F-450 style front end . They do not work with the standard Ford Super Duty F-250/350 axle width.

• Larger tires on stock wheels are not recommended due to brake line clearance required. Use recommended specifications listed in tire and wheel fitment section.

• Installation requires a torque wrench capable of 405 ft-lbs

• Max Tire Size: 35x12.50
• Front Wheel: 20x8.25, 8.76" BS
• Rear Outer: 20x8.25, -3.33" BS
• Rear Inner: 20x8.25, 9.11" BS


Features:

• FOX 2.5 Coilover mounts in factory coil bucket location

• Adds additional secondary FOX 2.0 shock for max performance

• Eibach coil springs ride smooth through the roughest terrain

• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance

• Adjustable solid steel track bar designed to re-center the front axle

• Fabricated steel blocks provide level stance from front to rear

• FOX shocks are fully serviceable and resistant to corrosion and harsh environments.

Specs:

• Front Lift Method: Coilover
• Front Lift Height: 2.5"
• Rear Lift Method: Block
• Rear Lift Height: 1"

You can view and download the complete assembly instruction booklet here and here.
