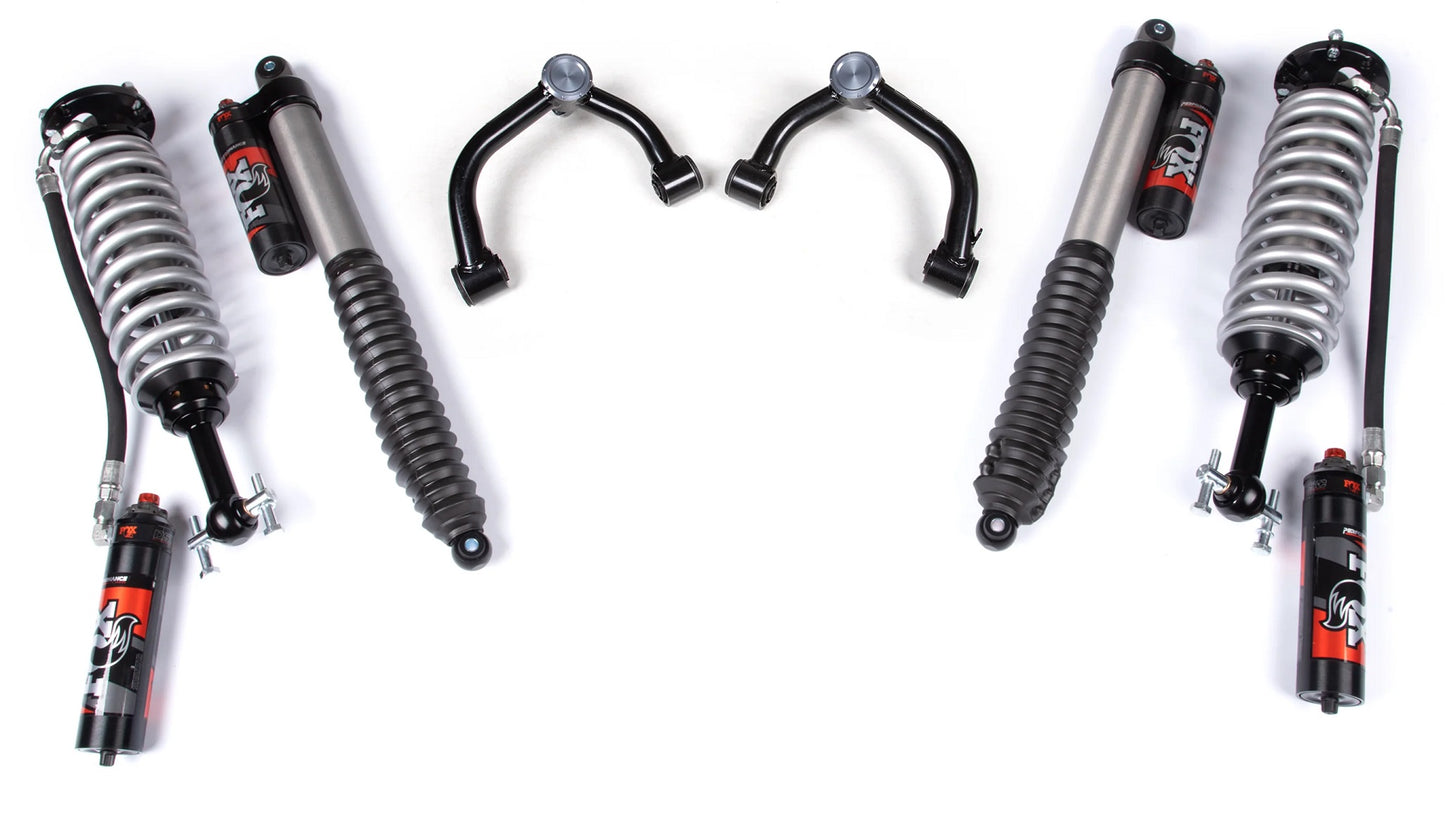

BDS 21-25 FORD F-150 4WD 2" LEVELING KIT,FOX 2.5 PERFORMANCE ELITE SHOCKS

Brand New BDS Suspension 2" Leveling Kit with FOX 2.5 Coil-Overs & FOX 2.5 Performance Elite Rear Shocks, Compatible with 2021-2025 Ford F150 without UCA Headlight Sensor 4WD (Part #BDS1912FPE).

Level out your 2021-2025 Ford F150 truck and improve the ride with this 2.5 inch performance suspension system featuring FOX Performance Elite Series 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires. Up front the lift kit includes FOX Performance Elite Series 2.5 coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a matching set of FOX shocks for the smoothest ride.

Adaptive Headlights: This is a factory option where the headlamp beams move in the same direction as the steering wheel, illuminating the path ahead. If you are unsure if equipped, look at your upper control arms for a sensor mounted to them.

FOX Performance Elite: FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

HD Upper Control Arms: Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5"" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

Compatible with:

• Ford:

  • 2021-2025 F-150 4WD


Notes:

• Will NOT work with trucks that have CCD (Continuous Controlled Damping)

• Will NOT work with Diesel models.

• Not compatible on trucks with the On-Board Scales option

• Shock length too short for Tremor

• Excludes Raptor

• Recommended Tires and Wheels (Trimming May Be Required) 35 x 12.5 with 17 x 9 and 4.75 in. Backspace or 33 x 12.5 with 17 x 9 and 5 in. Backspace

Features:

• HD Upper control arms provide superior strength and proper alignment

• Adjustable height to fine tune

• Front FOX 2.5 Performance Elite coil overs for unmatched performance and capability with simple adjustment of settings

• Provides level stance from front to rear

• Easy, 100% Bolt On installation

• FOX shocks are fully serviceable and resistant to corrosion and harsh environments.

FOX 2.5 Performance Elite Series:

• Increased off-road capabilities

• Easily adjust your shock for terrain, load and speed

• 2.5-inch Impact extruded aluminum body

• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft

• External reservoir design separates shock oil from the high-pressure nitrogen

• DSC - Dual Speed Compression Adjuster comes standard

• Fully serviceable for a lifetime of use

Specs:

• Front Lift Method: Coil-Over

• Rear Lift Method: None

• Shocks Included: Yes

• Front Lift Height: 2"

• Rear Lift Height: 0"

You can view and download the assembly/instruction booklet here.
